NAVI Control Unit: Description

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

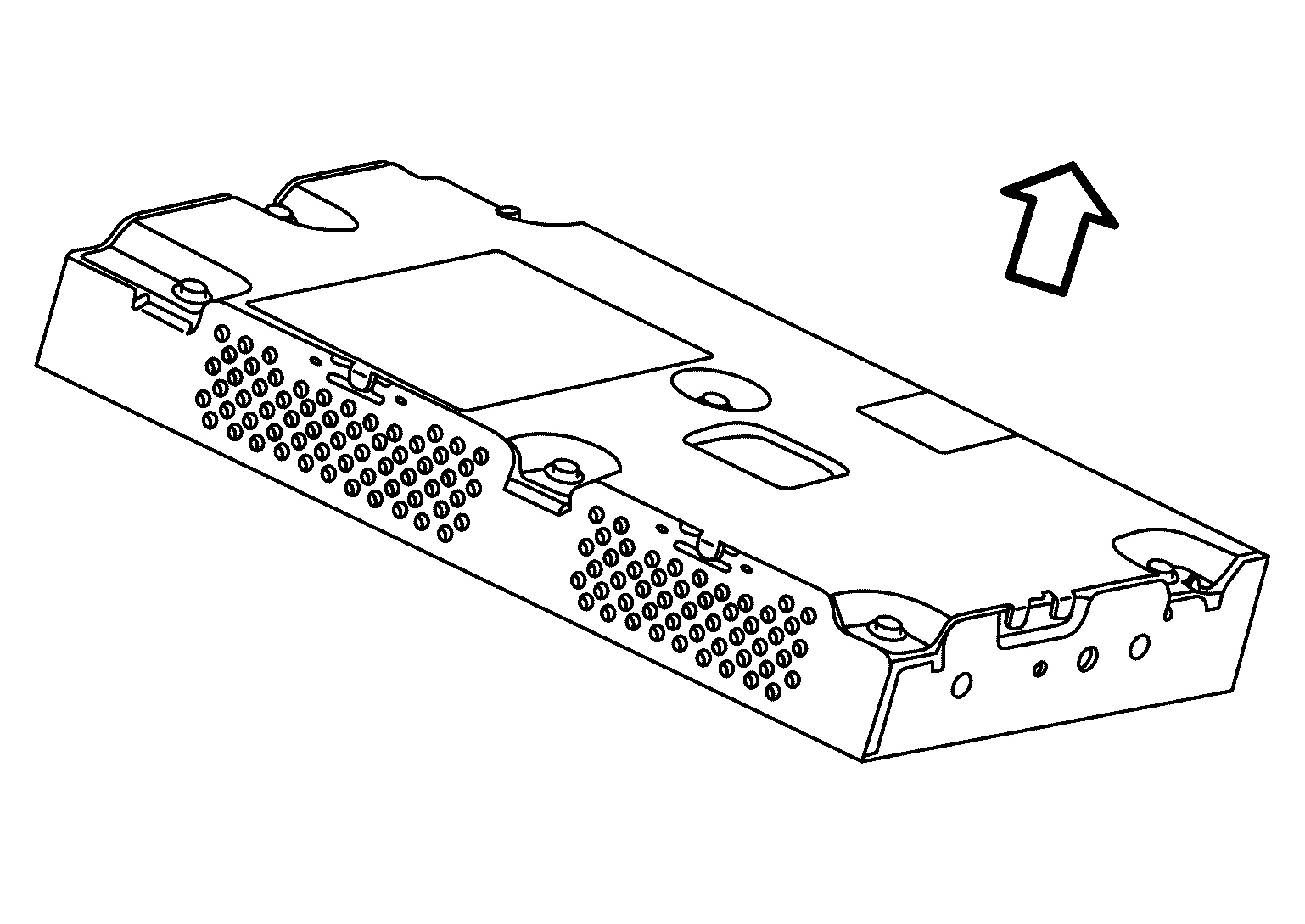

NAVI control unit is located on the back of integral switch.

Courtesy of NISSAN NORTH AMERICA, INC.

: Vehicle upper
NAVI control unit controls the navigation system of Infiniti InTouch.
It integrates a gyro sensor and acceleration sensor and calculates the vehicle position by combining the vehicle speed signal, reverse signal, and location information received from GPS antenna.
Map data is obtained from the SD card that is inserted in external data input box.
