Engine Cooling
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

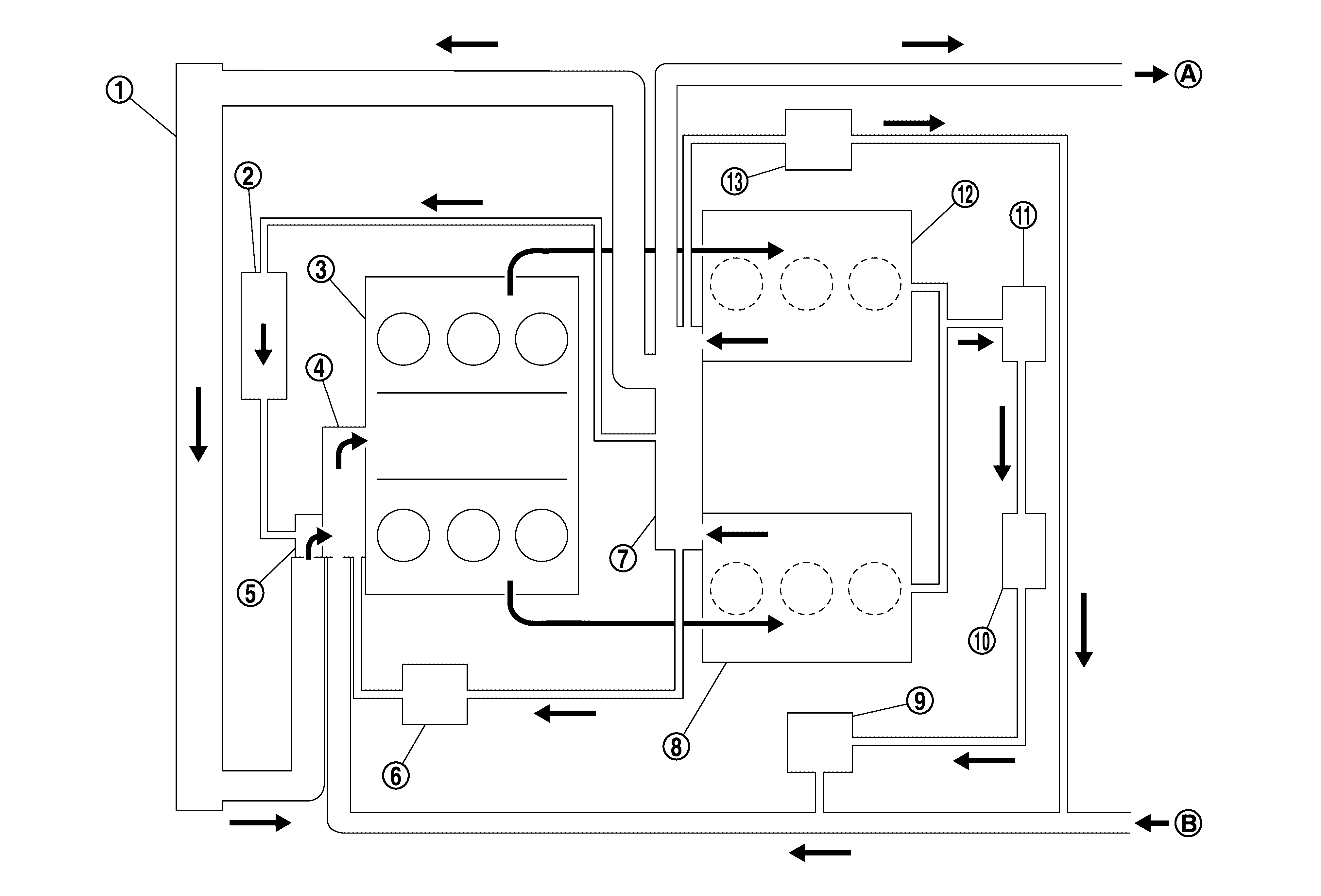

Engine Oil Cooler Air Cooling Type
|
|
Radiator |
|
Reservoir tank |
|
Cylinder block |
|
|
Water pump |
|
Water inlet |
|
A/T fluid warmer |
|
|
Multi-way control valve |
|
Cylinder head (bank 2) |
|
Turbocharger assembly (bank 2) |
|
|
Electric throttle control actuator (bank 2) |
|
Electric throttle control actuator (bank 1) |
|
Cylinder head (bank 1) |
|
|
Turbocharger assembly (bank 1) |
||||
|
|
To heater |
|
From heater |

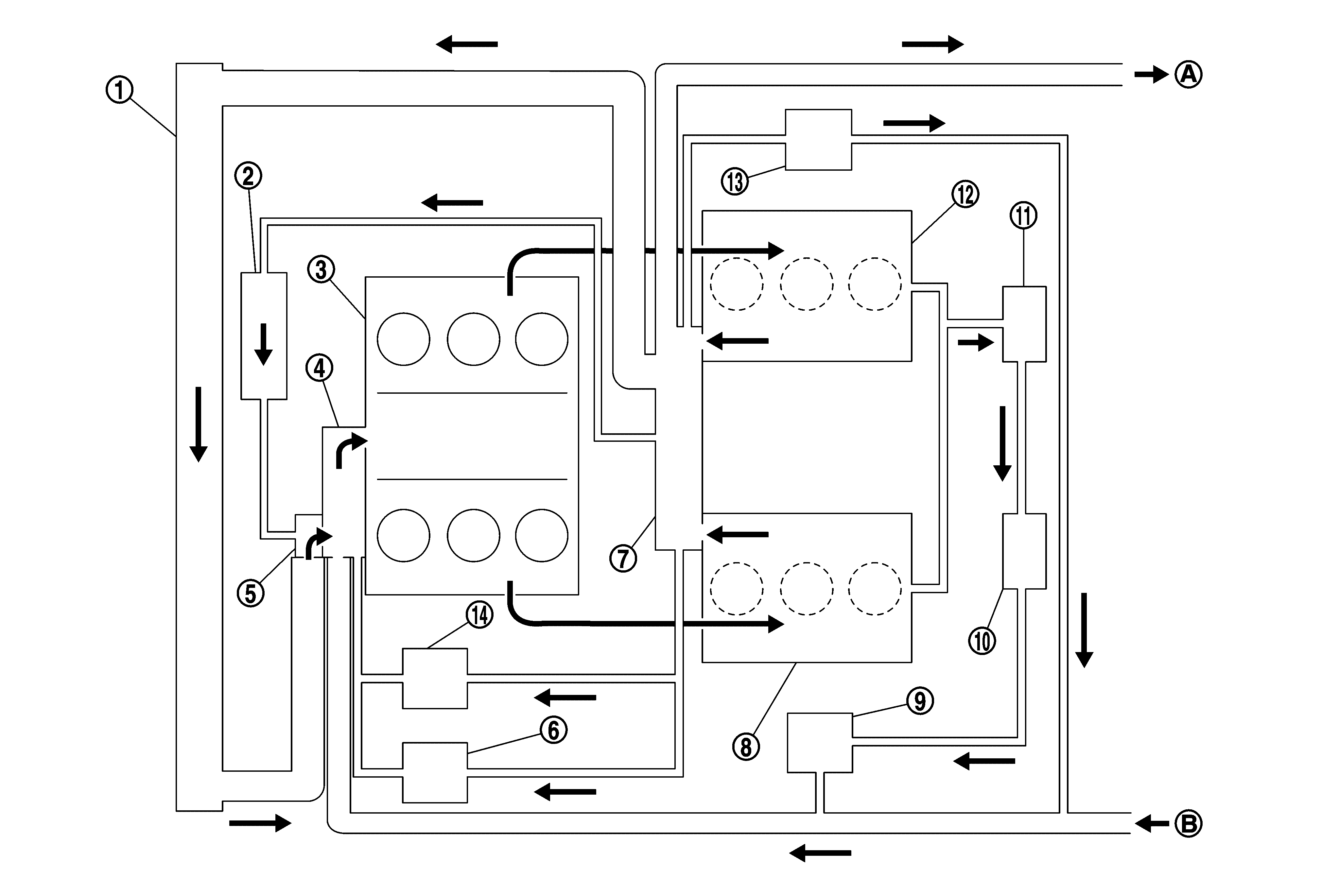

Engine Oil Cooler Water Cooling Type
|
|
Radiator |
|
Reservoir tank |
|
Cylinder block |
|
|
Water pump |
|
Water inlet |
|
A/T fluid warmer |
|
|
Multi-way control valve |
|
Cylinder head (bank 2) |
|
Turbocharger assembly (bank 2) |
|
|
Electric throttle control actuator (bank 2) |
|
Electric throttle control actuator (bank 1) |
|
Cylinder head (bank 1) |
|
|
Turbocharger assembly (bank 1) |
|
Engine oil cooler |
||
|
|
To heater |
|
From heater |
