Charge Air Cooling
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

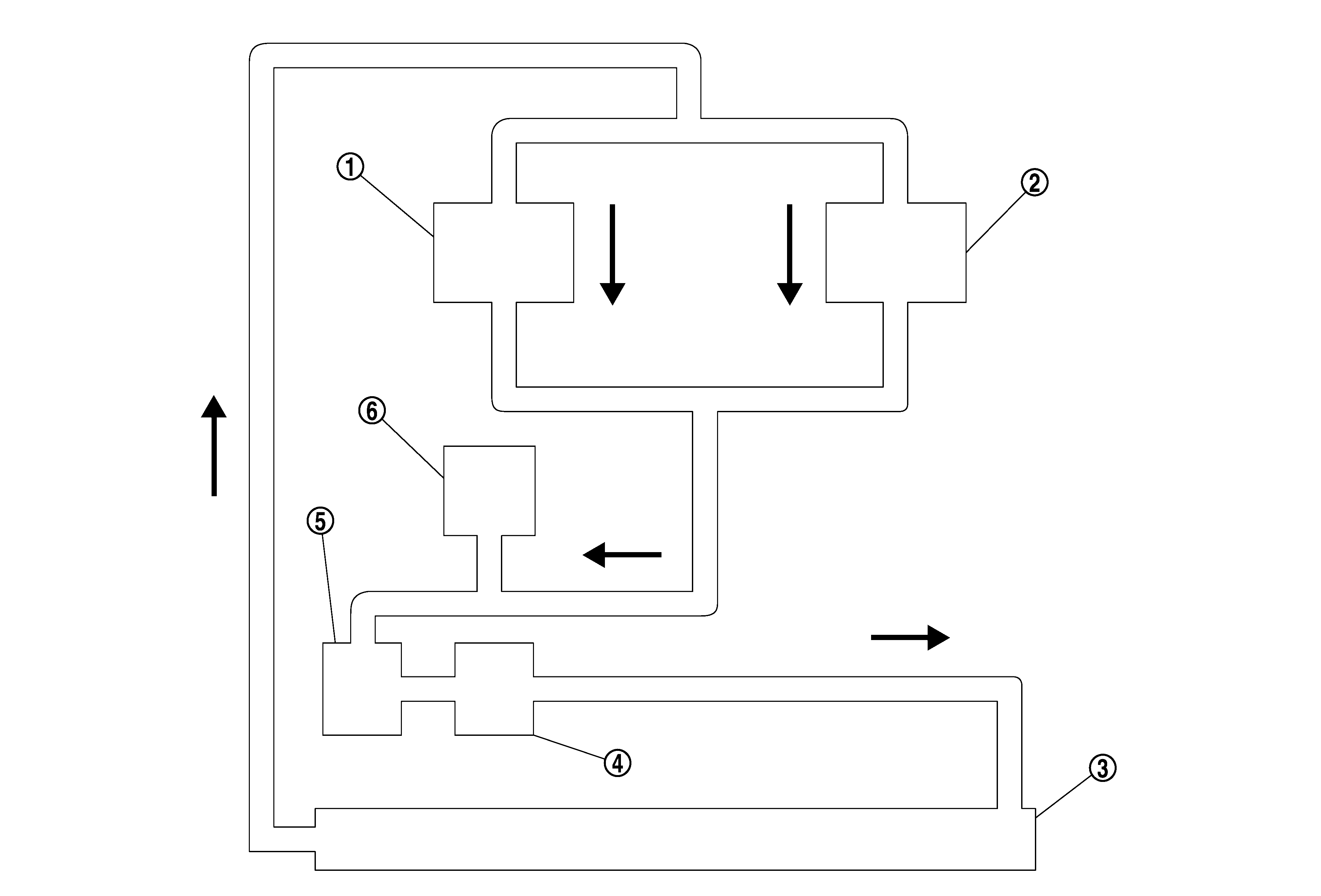

Type 1
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Charge air cooler (bank 1)
|
|
Charge air cooler (bank 2)
|
|
Sub radiator
|
|
|
Electric water pump
|
|
Electric water pump
|
|
Reservoir tank
|

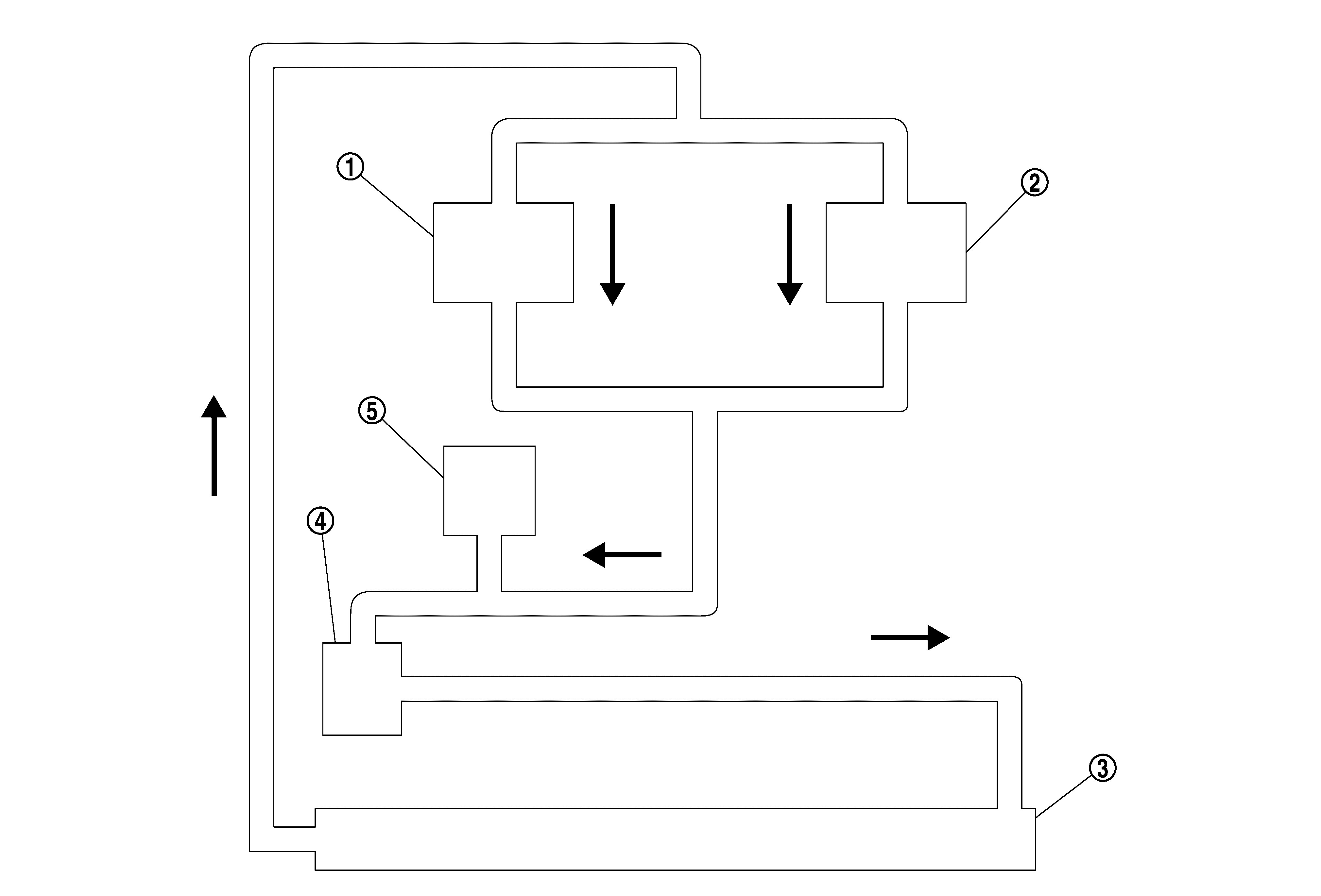

Type 2
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Charge air cooler (bank 1)
|
|
Charge air cooler (bank 2)
|
|
Sub radiator
|
|
|
Electric water pump
|
|
Reservoir tank
|
