Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

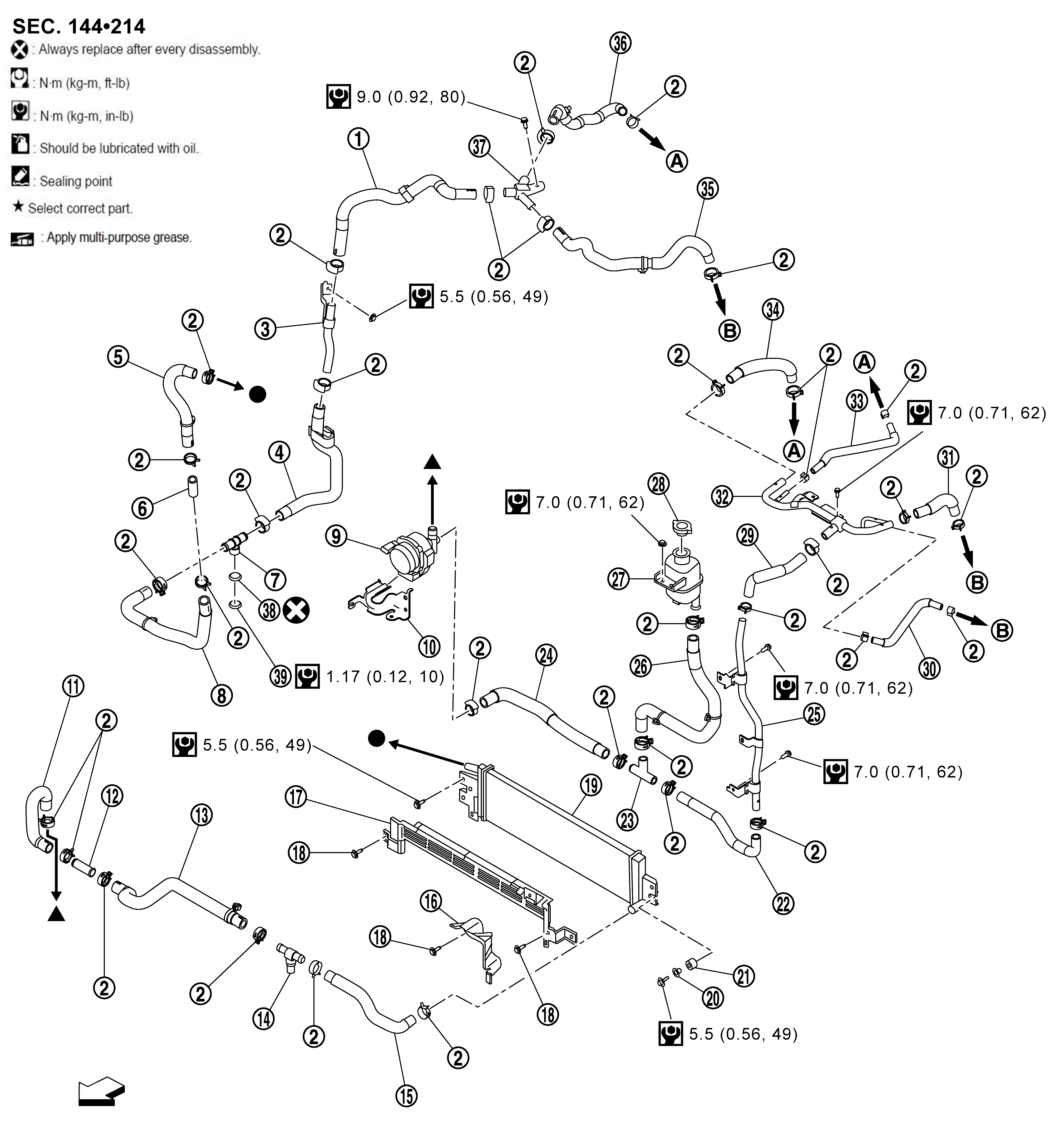

Fig 1: Sub Radiator Replacement Components With Torque Specifications (Type 1)

Courtesy of NISSAN NORTH AMERICA, INC.

	Water hose 1	Clamp	Water pipe 1
	Water hose 2	Water hose 3	Connector pipe 1
	Water hose connector (with drain plug)	Water hose 4	Electric water pump 1
	Electric water pump bracket	Electric water pump 2	Pump cover
	Water hose 5	Water hose connector (with sensor)	Water hose 6
	Air guide	Radiator seal	Clip
	Sub radiator	Coller	Bush
	Water hose 7	Water hose connector	Water hose 8
	Water pipe 2	Reservoir tank hose	Reservoir tank
	Reservoir tank cap	Water hose 9	Water hose 10
	Water hose 11	Water pipe 3	Water hose 12
	Water hose 13	Water hose 14	Connector pipe 2
	Water hose 15	Water hose 16	Water hose 17
	O-ring	Drain plug	Connector pipe 3
	Bracket
	To charge air cooler (bank 1)	To charge air cooler (bank 2)
	: Vehicle front
	: N.m (kg-m, in-lb)
, Indicates that the part is connected at points with same symbol in actual vehicle.

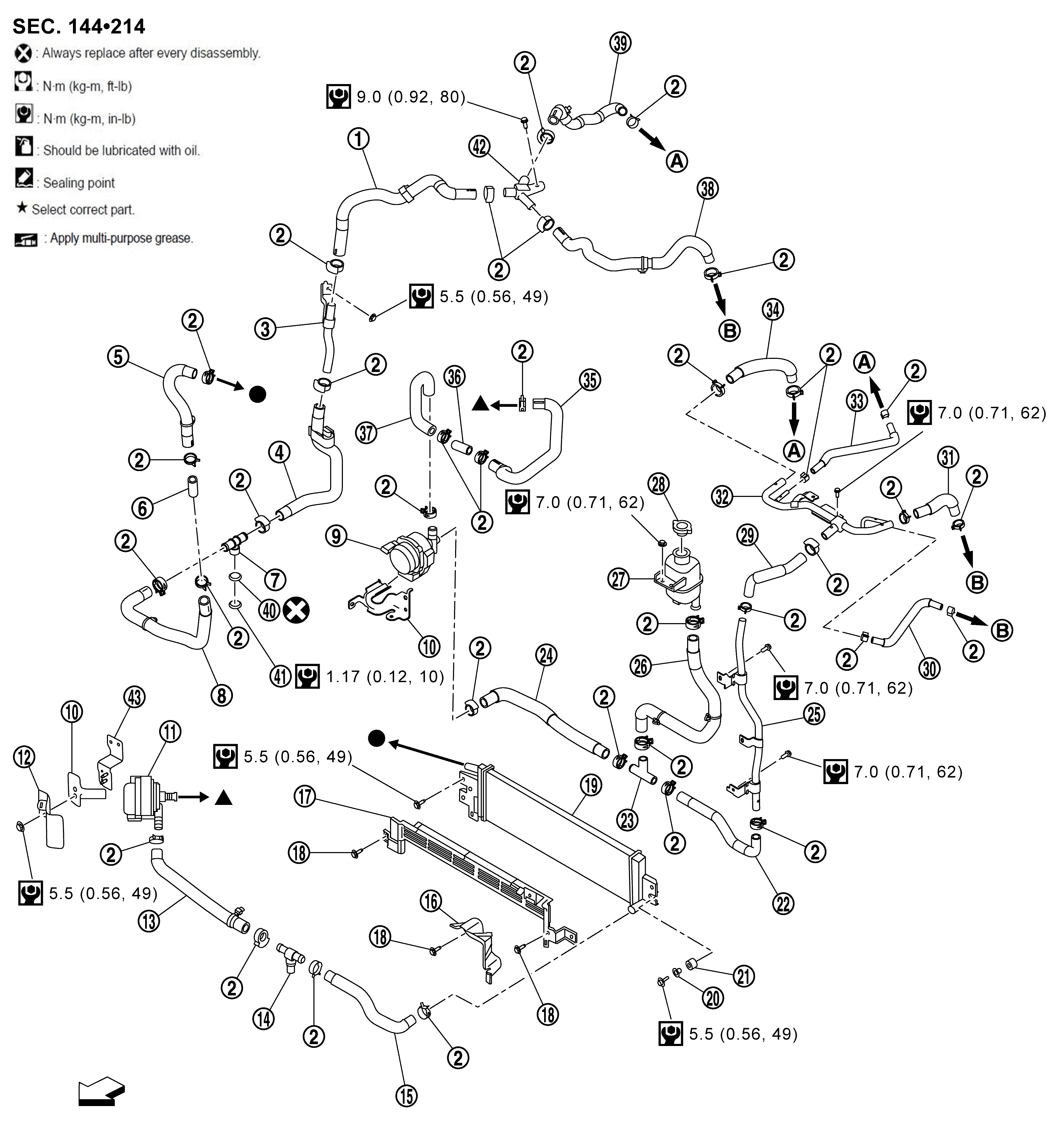

Fig 2: Subradiator Replacement Components With Torque Specifications (Type 2)

Courtesy of NISSAN NORTH AMERICA, INC.

	Water hose 1	Clamp	Water pipe 1
	Water hose 2	Water hose 3	Connector pipe 1
	Water hose connector (with drain plug)	Water hose 4	Electric water pump
	Electric water pump bracket	Water hose 15	Connector pipe 2
	Water hose 5	Water hose connector (with sensor)	Water hose 6
	Air guide	Radiator seal	Clip
	Sub radiator	Coller	Bush
	Water hose 7	Water hose connector	Water hose 8
	Water pipe 2	Reservoir tank hose	Reservoir tank
	Reservoir tank cap	Water hose 9	Water hose 10
	Water hose 11	Water pipe 3	Water hose 12
	Water hose 13	Water hose 16	Water hose 17
	Connector pipe 3	O-ring	Drain plug
	To charge air cooler (bank 1)	To charge air cooler (bank 2)
	: Vehicle front
	: N.m (kg-m, in-lb)
, Indicates that the part is connected at points with same symbol in actual vehicle.
