Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

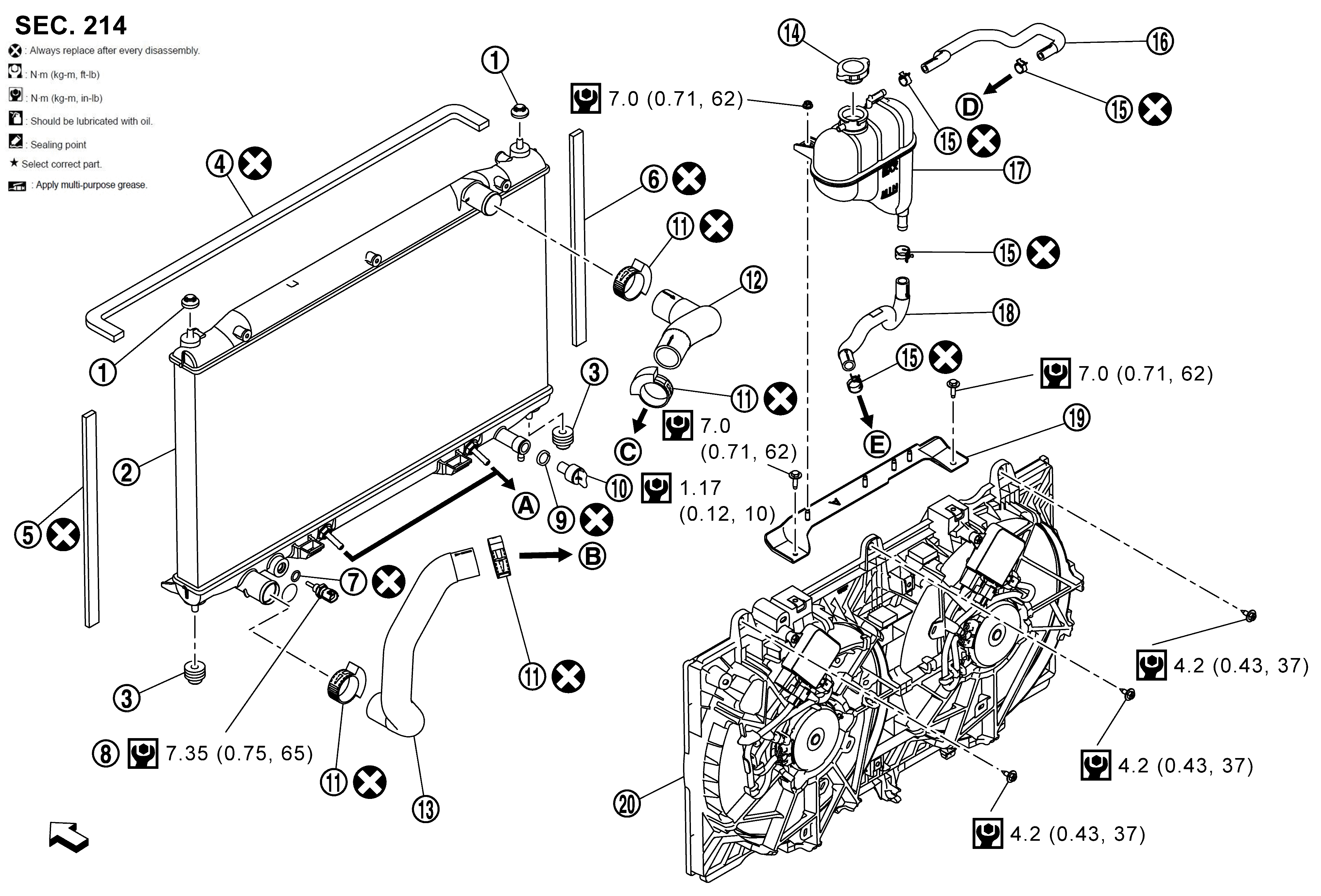

Fig 1: Radiator Replacement Components With Torque Specifications (Type 1)

Courtesy of NISSAN NORTH AMERICA, INC.

Mounting rubber (upper)	Radiator	Mounting rubber (lower)
Seal	Seal (LH)	Seal (RH)
O-ring	Water temperature sensor	O-ring
Drain cock	Clamp	Radiator hose (Upper)
Radiator hose (lower)	Reservoir tank cap	Clamp
Reservoir tank hose	Reservoir tank	Reservoir tank hose
Reservoir tank bracket	Cooling fan assembly
To transmission	To water inlet	To multi-way control valve
To multi-way control valve	To water inlet
: Vehicle front
: N.m (kg-m, in-lb)
: Always replace after every disassembly.

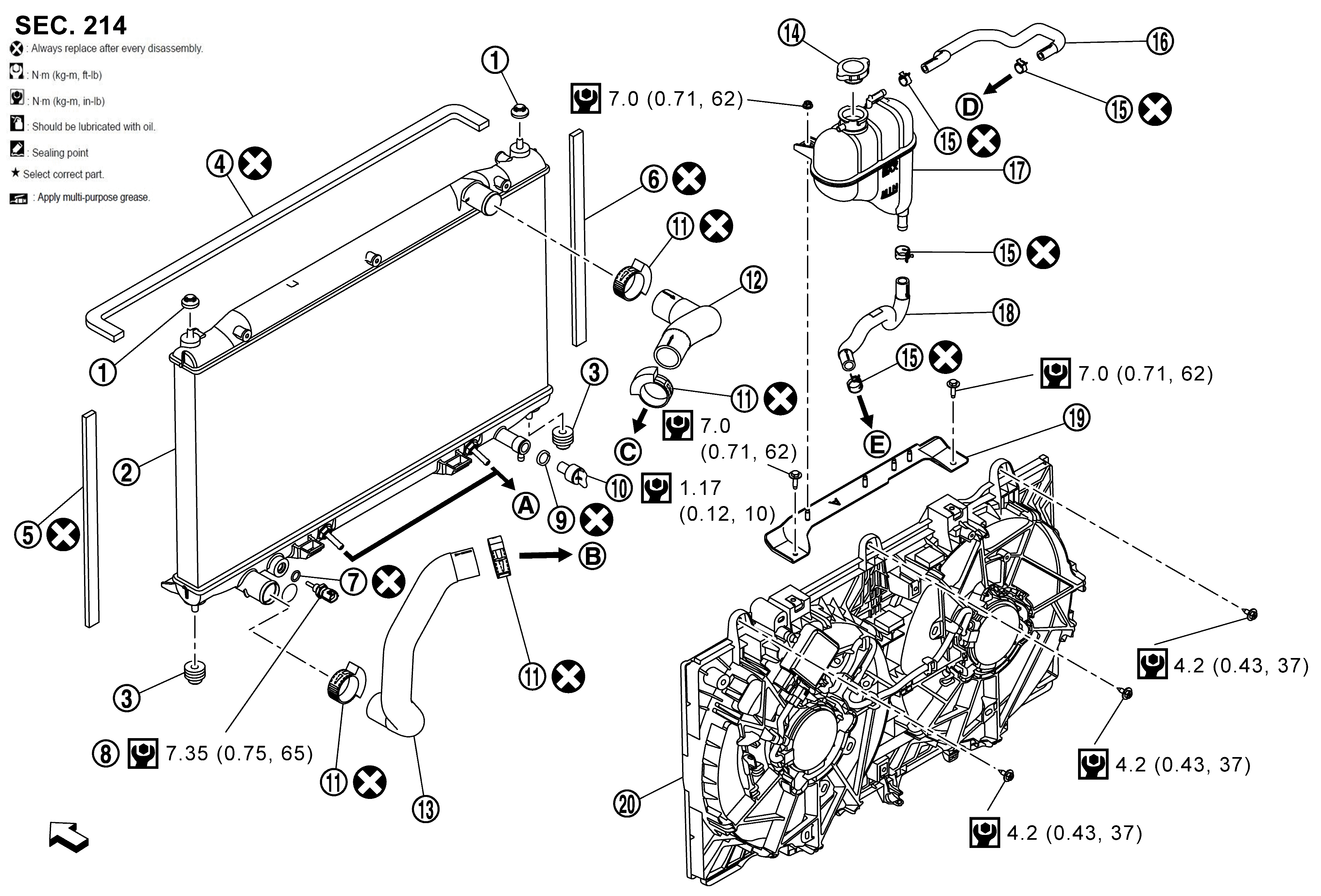

Fig 2: Radiator Replacement Components With Torque Specifications (Type 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Mounting rubber (upper)	Radiator	Mounting rubber (lower)
Seal	Seal (LH)	Seal (RH)
O-ring	Water temperature sensor	O-ring
Drain cock	Clamp	Radiator hose (Upper)
Radiator hose (lower)	Reservoir tank cap	Clamp
Reservoir tank hose	Reservoir tank	Reservoir tank hose
Reservoir tank bracket	Cooling fan assembly
To transmission	To water inlet	To multi-way control valve
To multi-way control valve	To water inlet
: Vehicle front
: N.m (kg-m, in-lb)
: Always replace after every disassembly.
