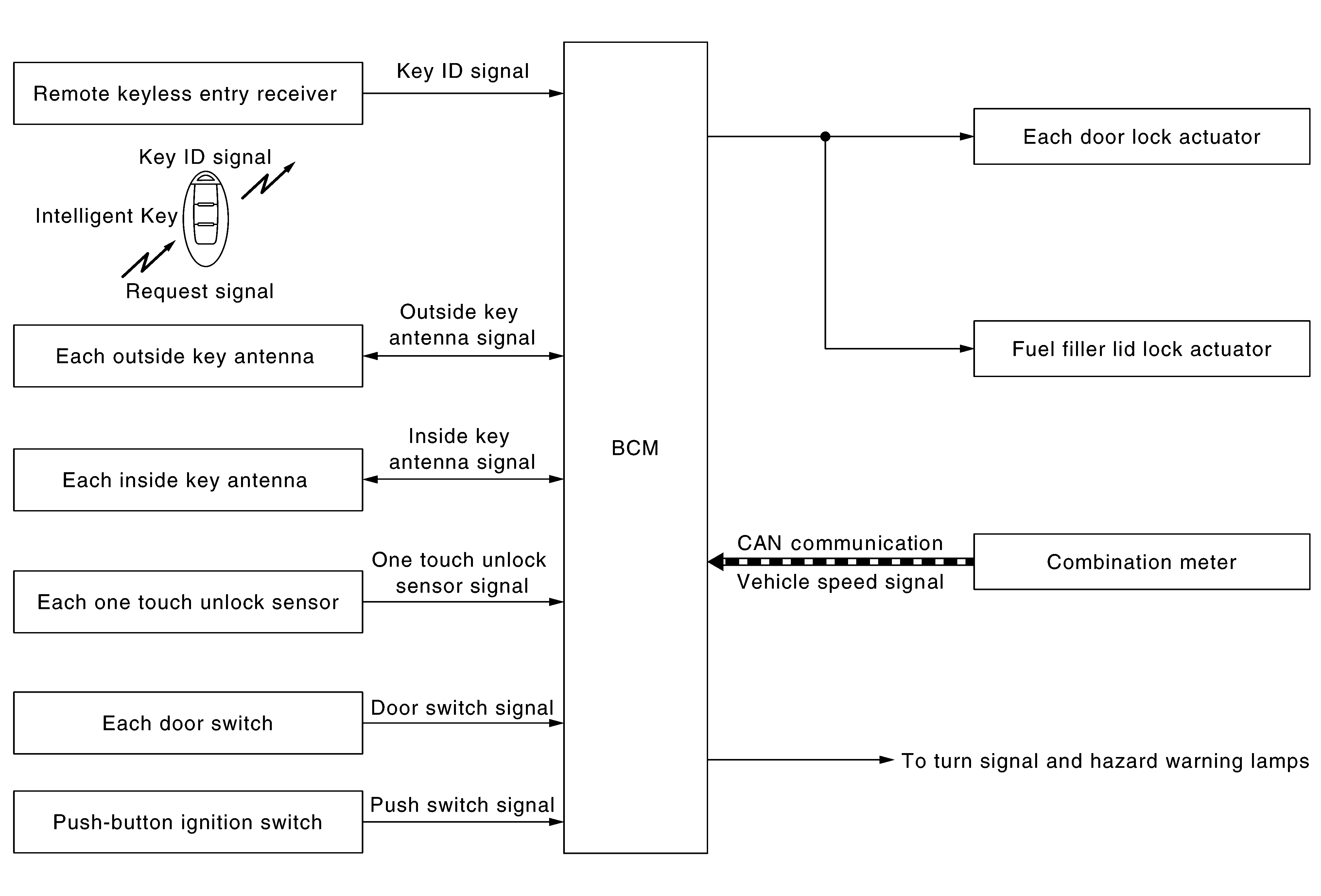

System Diagram

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
G09163394Courtesy of NISSAN NORTH AMERICA, INC.

One touch unlock function controls operation function of the following items.
