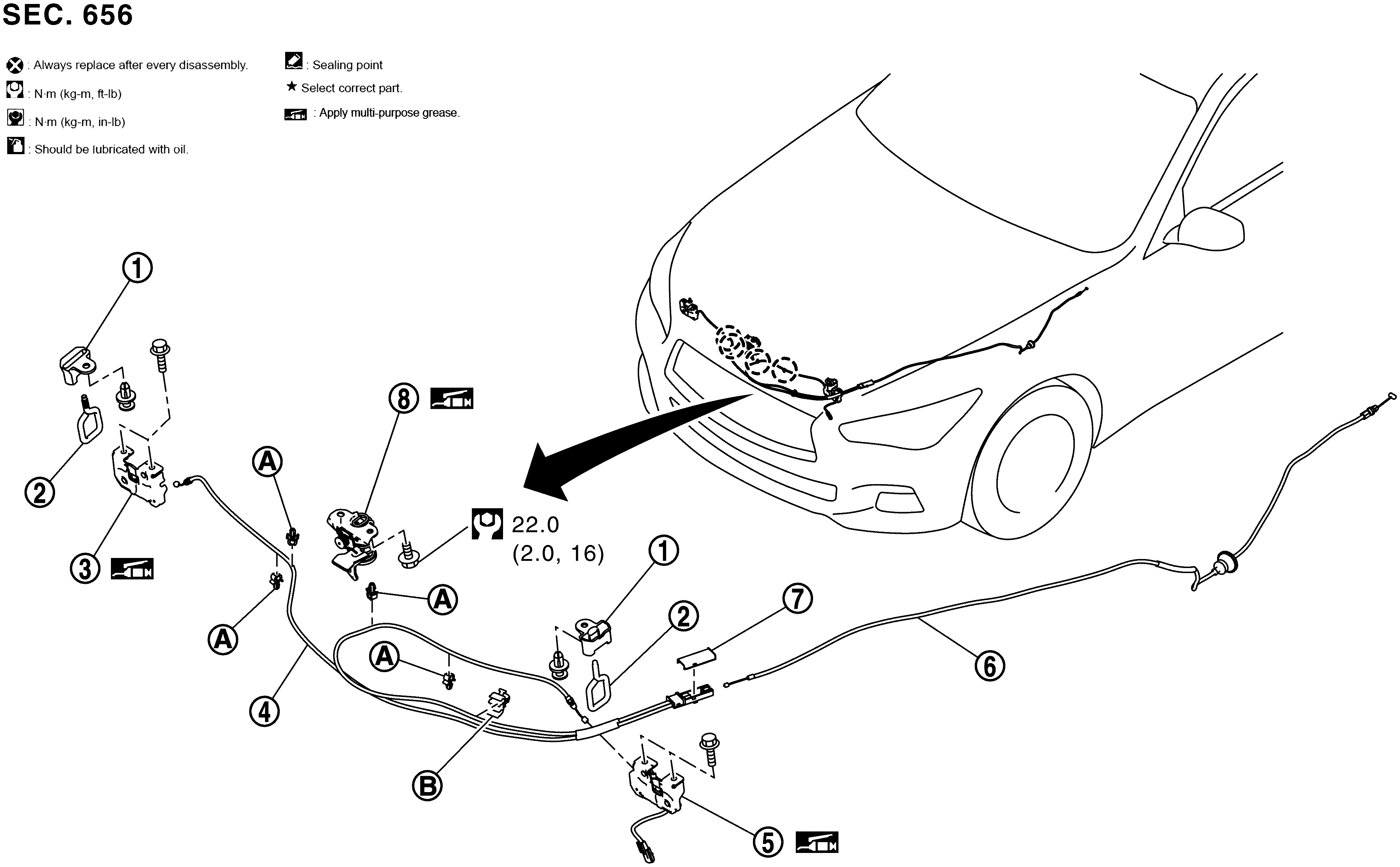

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Hood lock cover
|
|
Hood lock striker
|
|
Hood lock RH
|
|
|
Hood lock control cable (front)
|
|
Hood lock LH
|
|
Hood lock control cable (rear)
|
|
|
Hood control cable protector
|
|
Hood lock control secondary assembly
|
|
|
Clip
|
|
Tube clip
|
|
|
: Clip
|
|
|
: N.m (kg-m, ft-lb)
|
|
|
: Body grease
|
