Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

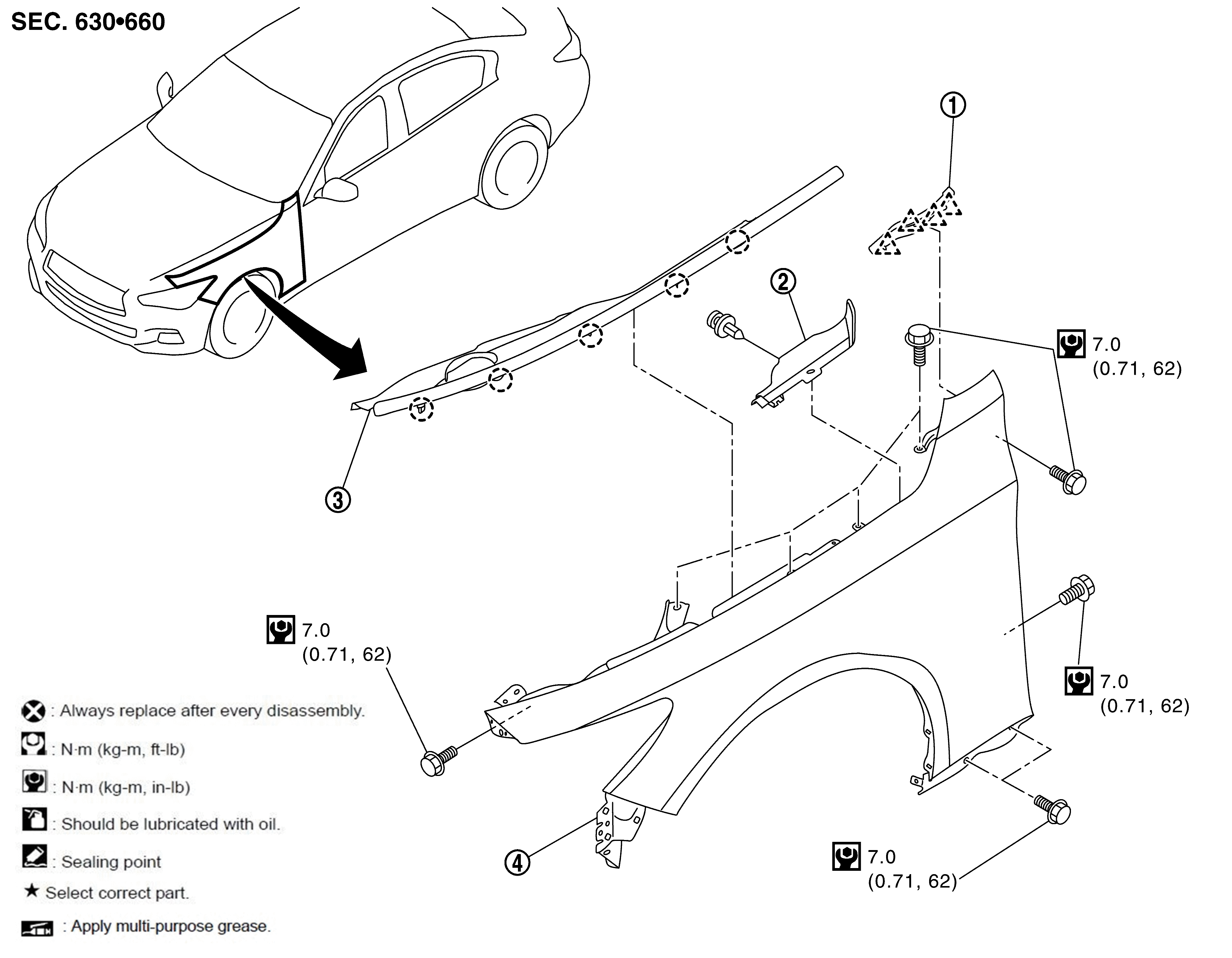

Fig 1: Front Fender Replacement Components With Torque Specifications
GNSJMKIB1930GB-930Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front fender cover

SYMBOL

Front fender drip cover

SYMBOL

Hood side seal assembly

SYMBOL

Front fender assembly

SYMBOL

: Clip

SYMBOL

: Pawl

SYMBOL

: N.m (kg-m, in-lb)
