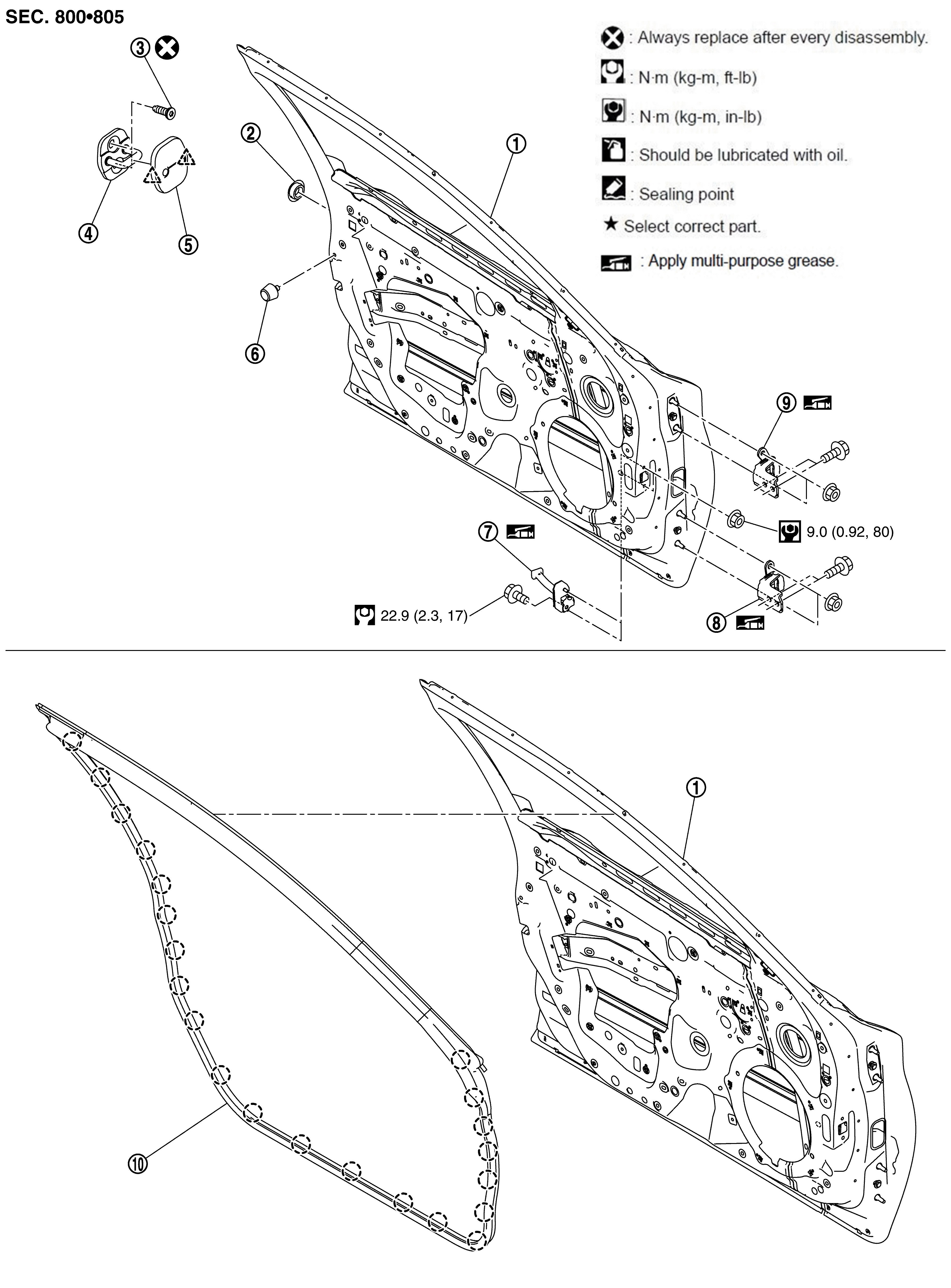

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Front door panel |
|
Grommet |
|
TORX bolt |
|
|
Door striker |
|
Door striker cover |
|
Bumper rubber |
|
|
Door check link |
|
Door hinge (lower) |
|
Door hinge (upper) |
|
|
Front door weather-strip |
||||
|
|
: Clip |
||||
|
|
: Pawl |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: Body grease |
||||
