Standard Grade

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

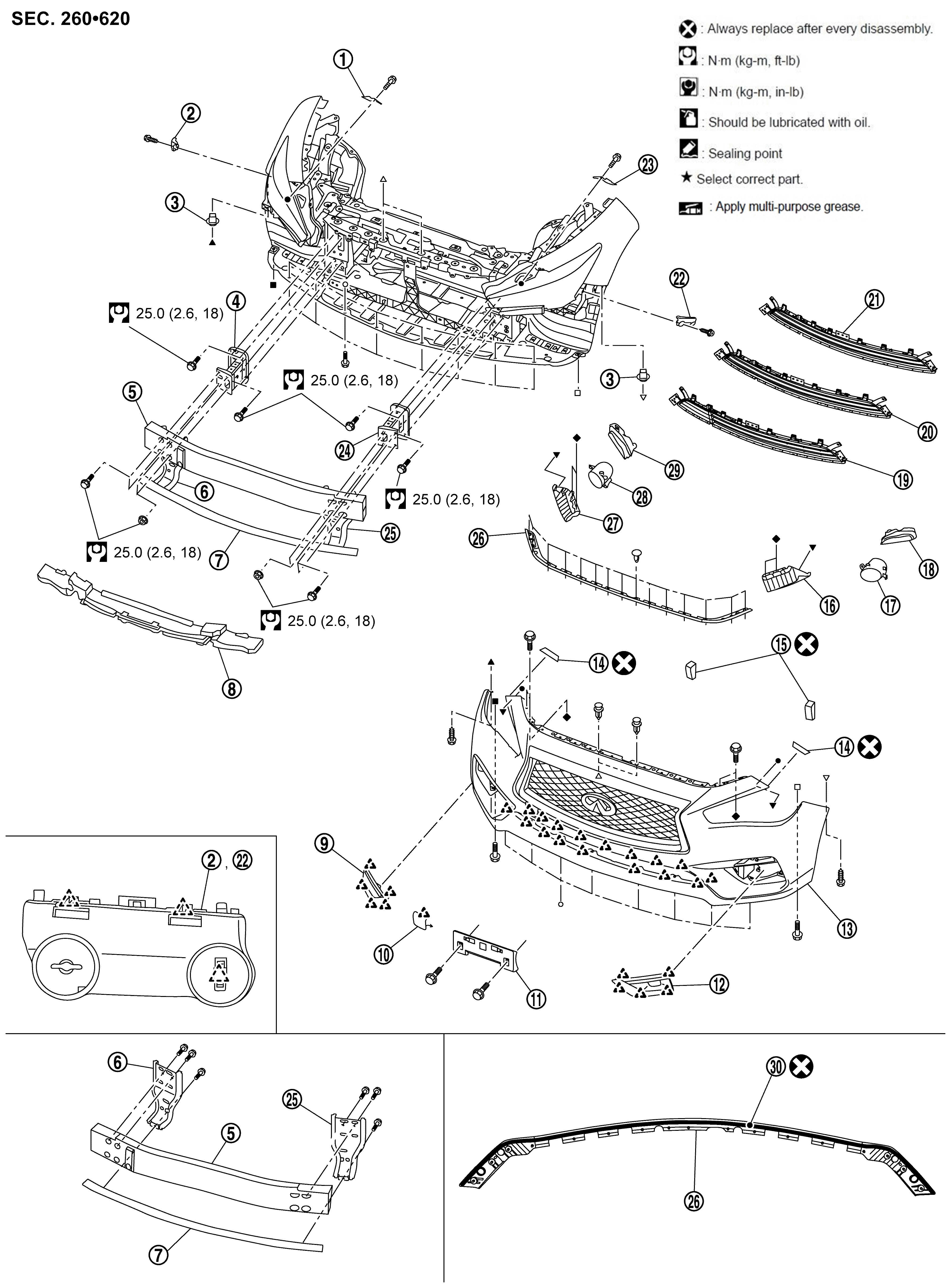

Fig 1: Front Bumper Replacement Components With Torque Specifications (Standard Grade)

Courtesy of NISSAN NORTH AMERICA, INC.

	Front bumper side bracket RH	Front bumper fascia bracket RH	Grommet
	Front bumper stay RH	Front bumper reinforcement	Apron side bracket RH
	Front apron reinforcement	Front bumper energy absorber	Front bumper finisher RH
	Bumper bracket cover	License plate bracket	Front bumper finisher LH
	Front bumper fascia	Front bumper side spacer	Front bumper spacer
	Front bumper side stiffener LH	Front fog lamp LH	Front turn signal lamp LH
	Front bumper grille (with ICC sensor)	Front bumper grille (with cover)	Front bumper grille
	Front bumper fascia bracket LH	Front bumper side bracket LH	Front bumper stay LH
	Apron side bracket LH	Hood front seal	Front bumper side stiffener RH
	Front fog lamp RH	Front turn signal lamp RH	Double-sided tape [t: 0.4 mm (0.016 in)]
	: Pawl
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
, , , , , , , , : Indicates that the part is connected at points with same symbol in actual vehicle.
