VR30DDTT Engine

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

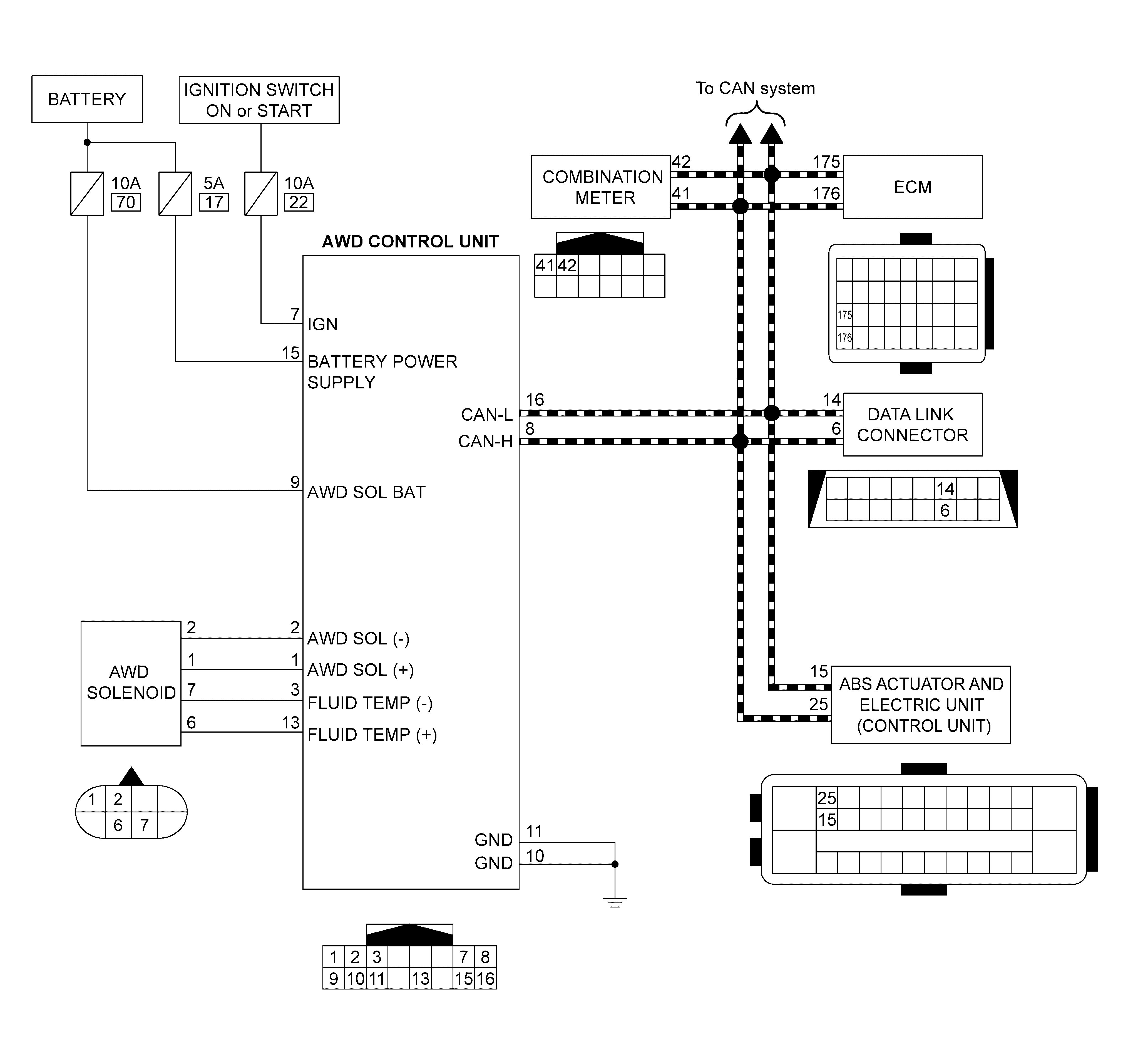

GNSJSDIB0022GB-022Courtesy of NISSAN NORTH AMERICA, INC.
