System Description

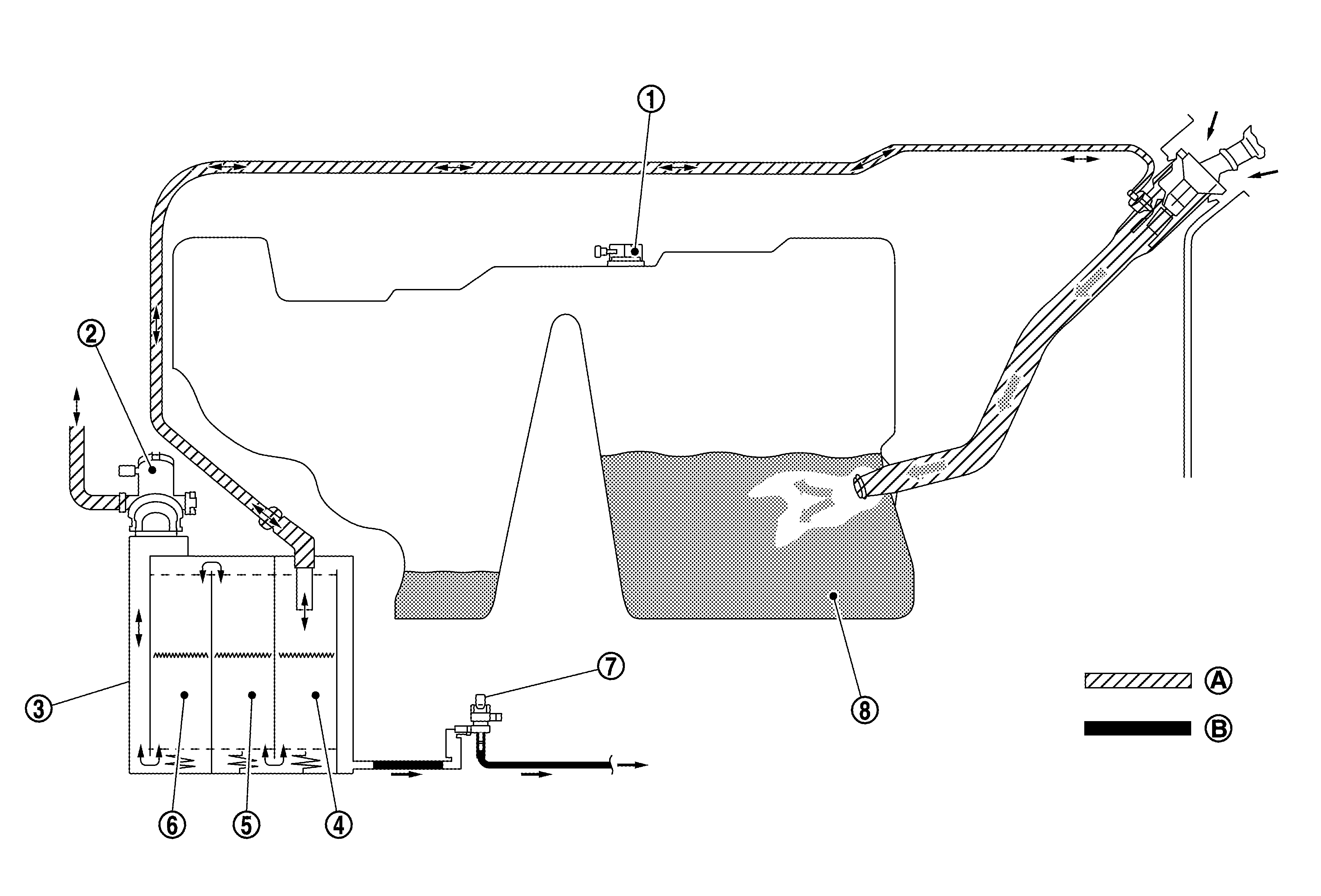

GNSJSBIB0499GB-499Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Fuel tank pressure sensor

SYMBOL

EVAP canister vent control valve

SYMBOL

EVAP canister

SYMBOL

Activated EVAP canister chamber 1

SYMBOL

Activated EVAP canister chamber 2

SYMBOL

Activated EVAP canister chamber 3

SYMBOL

EVAP purge control valve

SYMBOL

Fuel tank

SYMBOL

Aeration and vent line

SYMBOL

Purge line
