Physical Values

Terminal No. (Wire color)		Description		Condition		Value (Approx.)
		Signal name	Input/ Output
+	-
1 (W)	Ground	Rotary light switch ground	--	--		0 V
2 (O)	Ground	Rotary light switch (Parking lamp LH/Parking lamp RH/Position lamp)	Input	Rotary light switch	Parking lamp LH	8.0 V
					Parking lamp RH	4.4 V
					Position lamp	1.6 V
					Other than above	12 V
3 (R)	Ground	Rotary light switch (Auto light/Low beam)	Input	Rotary light switch	Auto light	4.4 V
					Low beam	1.3 V
					Other than above	12 V
4 (G)	Ground	Rotary light switch (Front fog lamp)	Input	Rotary light switch	When pressing front fog lamp switch	1.2 V
					Other than above	12 V
5* ¹ (Y)	--	--	--	--	--	--
7 (GR)	Ground	Switch indicator	Output	Switch indicator	OFF	0 V

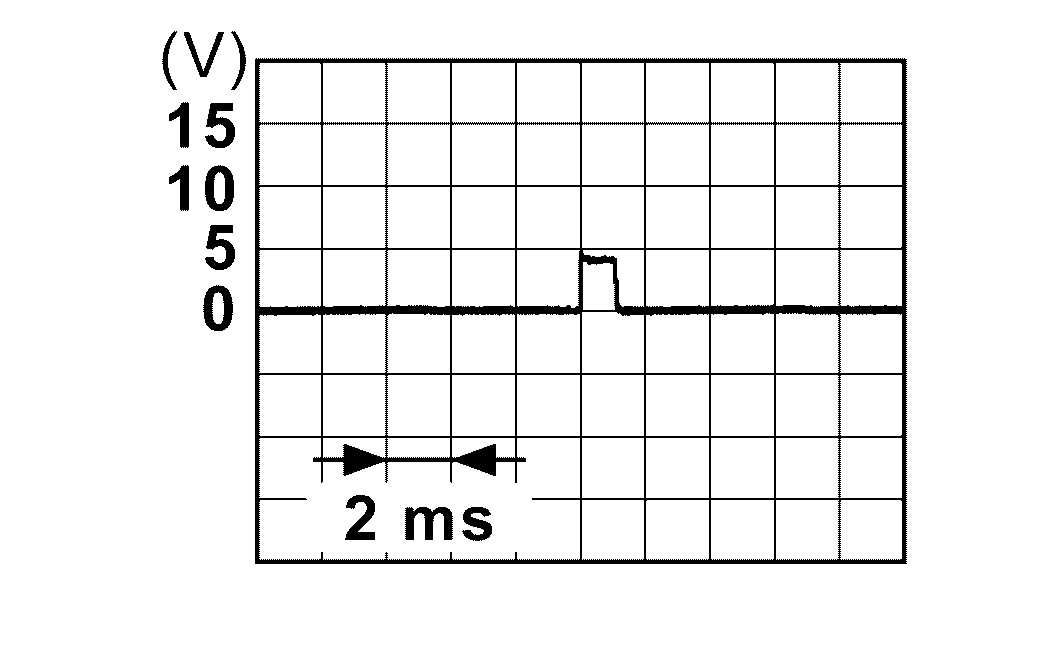

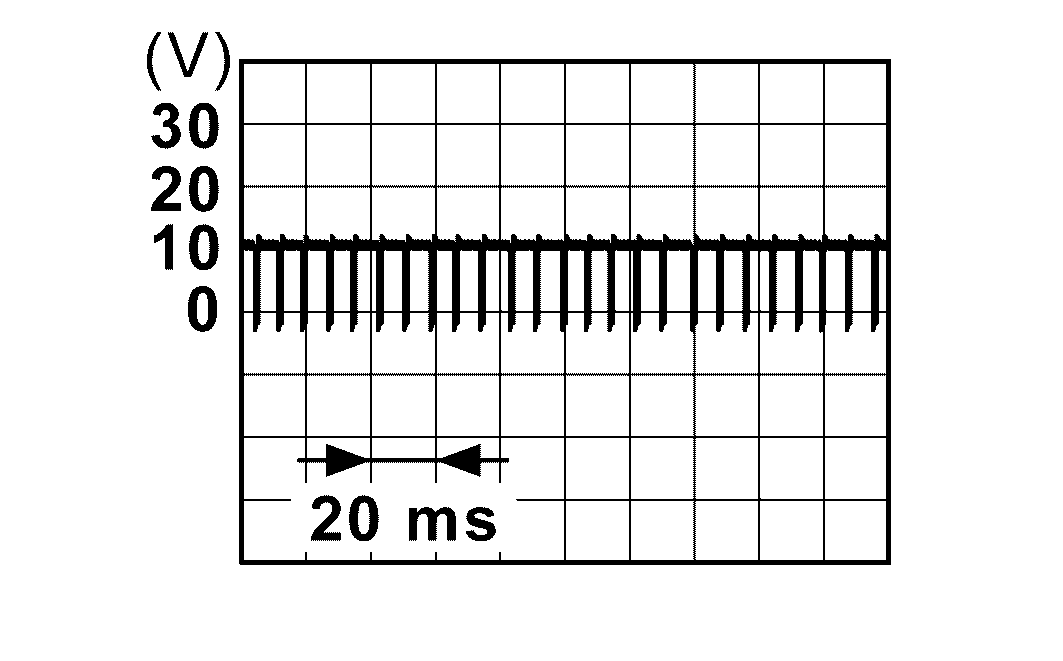

					ON	Courtesy of NISSAN NORTH AMERICA, INC.
8 (R)	Ground	CAN-H (BODY 2)	Input/Output	--		--
9 (BR)	Ground	CAN-L (BODY 2)	Input/Output	--		--
12 (O)	Ground	LIN (IBS)	Input/Output	--		--
14 (G)	Ground	Rear foot lamp	Output	Rear foot lamp	OFF	0 V

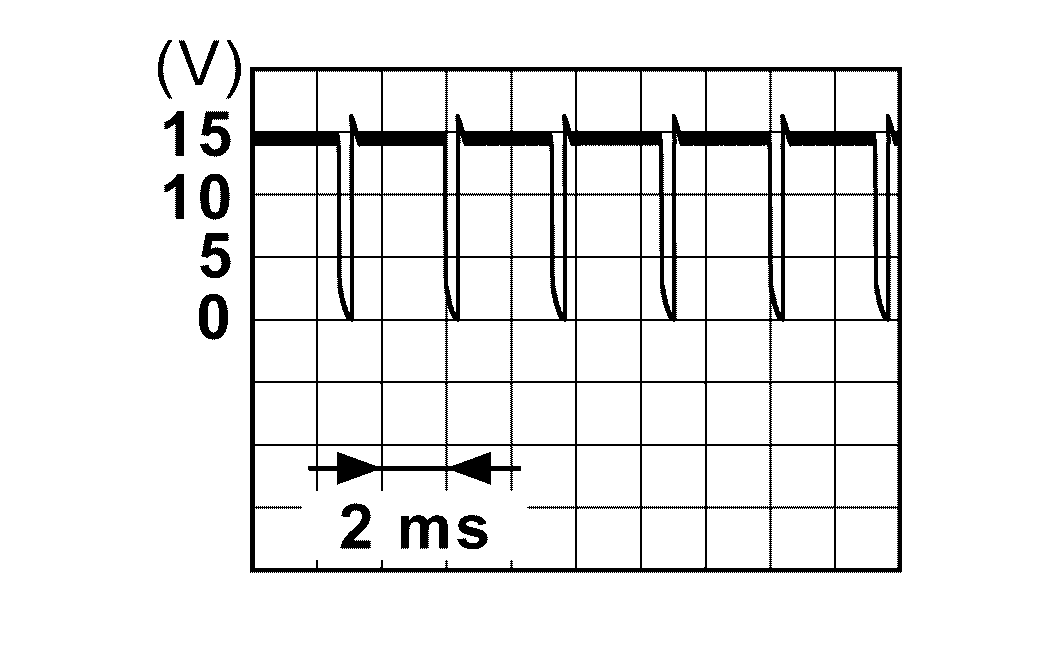

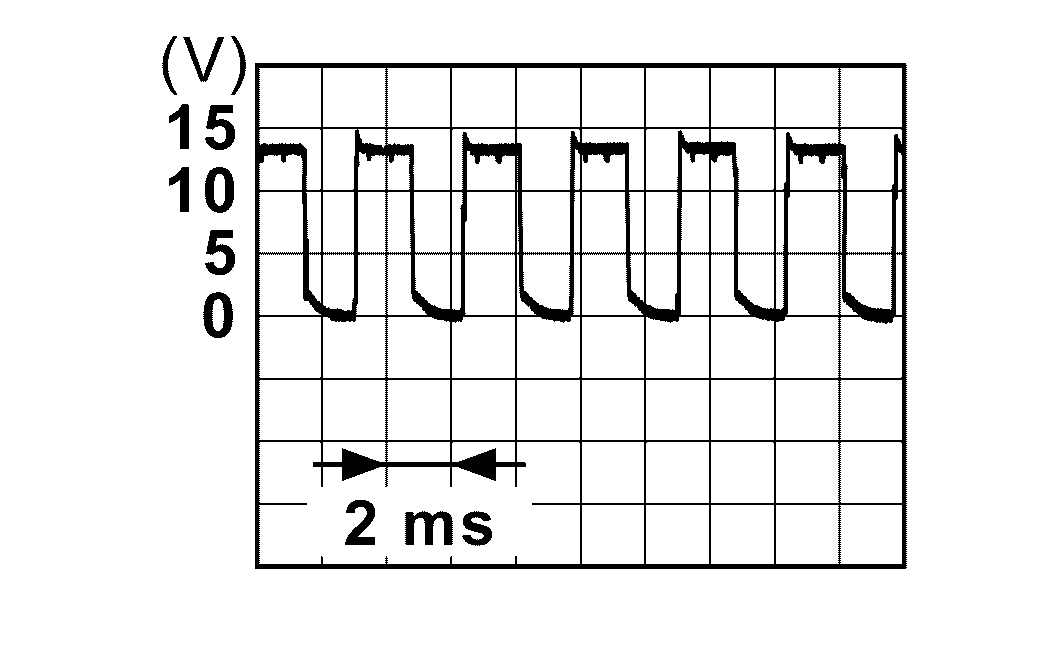

					ON	Courtesy of NISSAN NORTH AMERICA, INC.
15 (W)	Ground	Battery power supply	Input	Ignition switch OFF, ACC or ON		9 - 16 V
16 (BR)	Ground	Battery power supply	Input	Ignition switch OFF, ACC or ON		9 - 16 V
17 (R)	Ground	Battery power supply	Input	Ignition switch OFF, ACC or ON		9 - 16 V
18 (B)	Ground	Ground	--	--		0 V
19 (Y)	Ground	Rear power window motor RH control (UP)	Output	Rear power window RH	UP	12 V
					Other than above	0 V
20 (G)	Ground	Rear power window motor RH control (DOWN)	Output	Rear power window RH	DOWN	12 V
					Other than above	0 V
21 (B)	Ground	Rear power window motor LH control (UP)	Output	Rear power window LH	UP	12 V
					Other than above	0 V
22 (GR)	Ground	Rear power window motor LH control (DOWN)	Output	Rear power window LH	DOWN	12 V
					Other than above	0 V
23 (P)	Ground	Air bag signal	Input	--		--
27 (GR)	Ground	Back door opener switch	Input	Back door opener switch	While pressing	12 V
					Other than above	0 V
33 (O)	Ground	Rear power window switch LH ground	--	--		0 V
34 (BR)	Ground	Rear power window switch LH (DOWN)	Input	Rear power window switch LH	When pressing DOWN	5 V
					Other than above	12 V
36 (O)	Ground	Rear power window switch LH (UP)	Input	Rear power window switch LH	When pressing UP	5 V
					Other than above	12 V
37 (L)	Ground	Rear door RH status	Input	Rear door RH	Open	12 V
					Close	0 V
39 (Y)	Ground	Back door status	Input	Back door	Open	12 V
					Close	0 V
40 (V)	Ground	Back door lamp	Output	Back door lamp	OFF	0 V

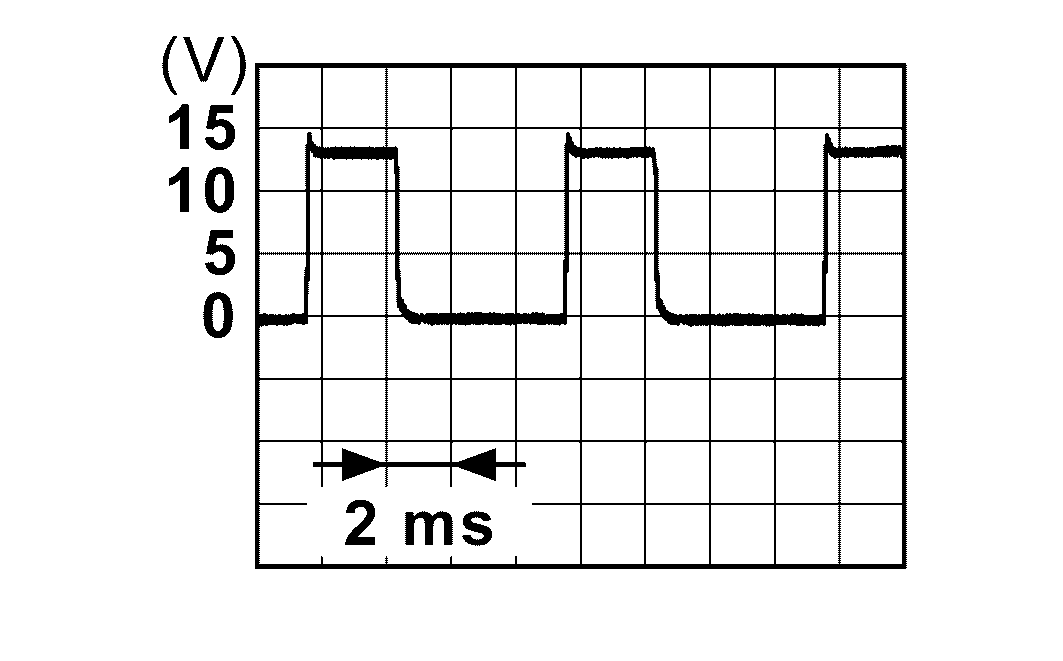

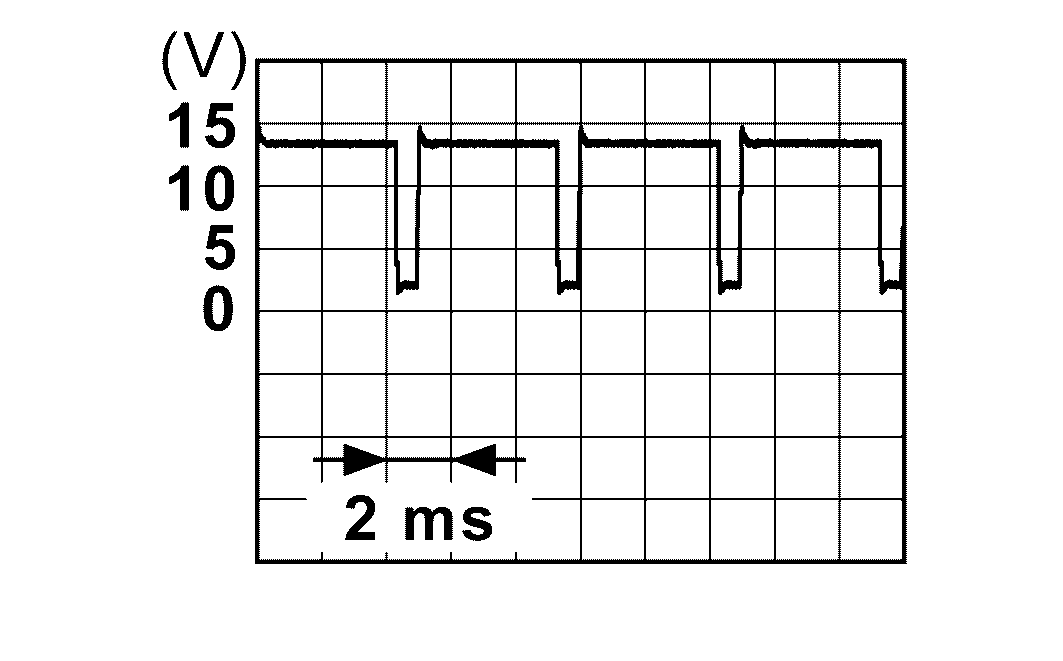

					ON	Courtesy of NISSAN NORTH AMERICA, INC.
41 (W)	Ground	Rear door LH status	Input	Rear door LH	Open	12 V
					Close	0 V
42 (V)	Ground	Luggage room lamp	Output	Luggage room lamp	OFF	0 V

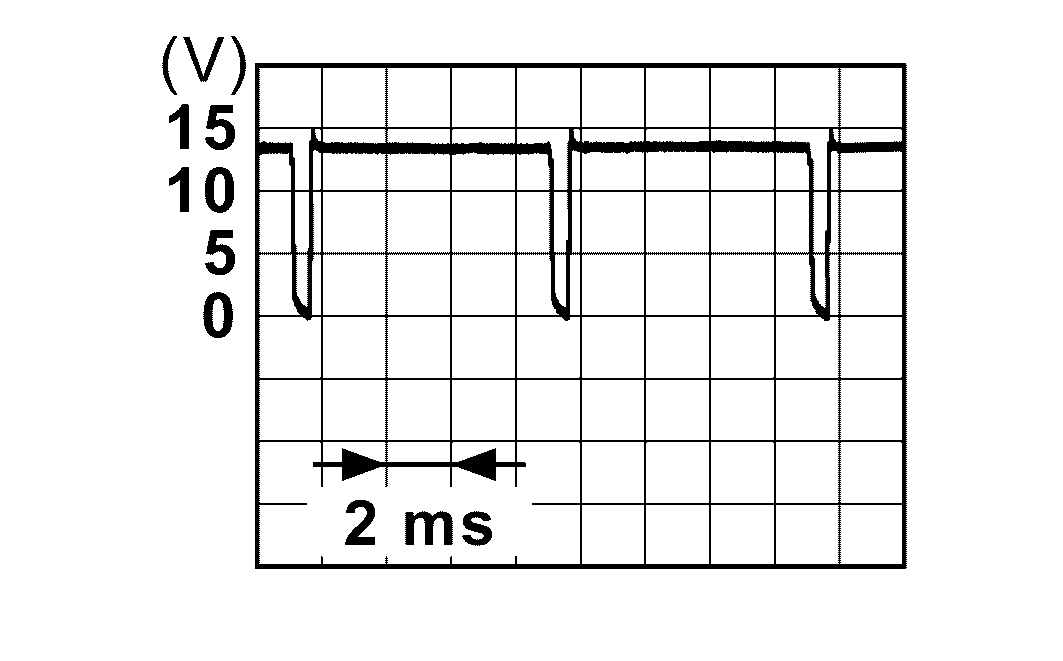

					ON	Courtesy of NISSAN NORTH AMERICA, INC.
43 (L)	Ground	Back-up lamp LH	Output	Back-up lamp LH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
44 (W)	Ground	High-mounted stop lamp	Output	High-mounted stop lamp	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
45 (O)	Ground	Tail lamp (body side) RH	Output	Tail lamp (body side) RH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
48 (GR)	Ground	Tail lamp (back door side) RH	Output	Tail lamp (back door) RH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
50 (GR)	Ground	Rear fog lamp	Output	Rear fog lamp	OFF	0V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
57 (Y)	Ground	Stop lamp (body side) LH	Output	Stop lamp (body side) LH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
58 (L)	Ground	Rear turn signal lamp RH	Output	Rear turn signal lamp RH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
59 (P)	Ground	Rear door RH UNLOCK	Output	Door lock actuator	UNLOCK (When actuator is activated)	12 V
					Other than above	0 V
60 (G)	Ground	Rear door RH LOCK	Output	Door lock actuator	LOCK (When actuator is activated)	12 V
					Other than above	0 V
62 (GR)	Ground	License plate lamp LH	Output	License plate lamp LH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.

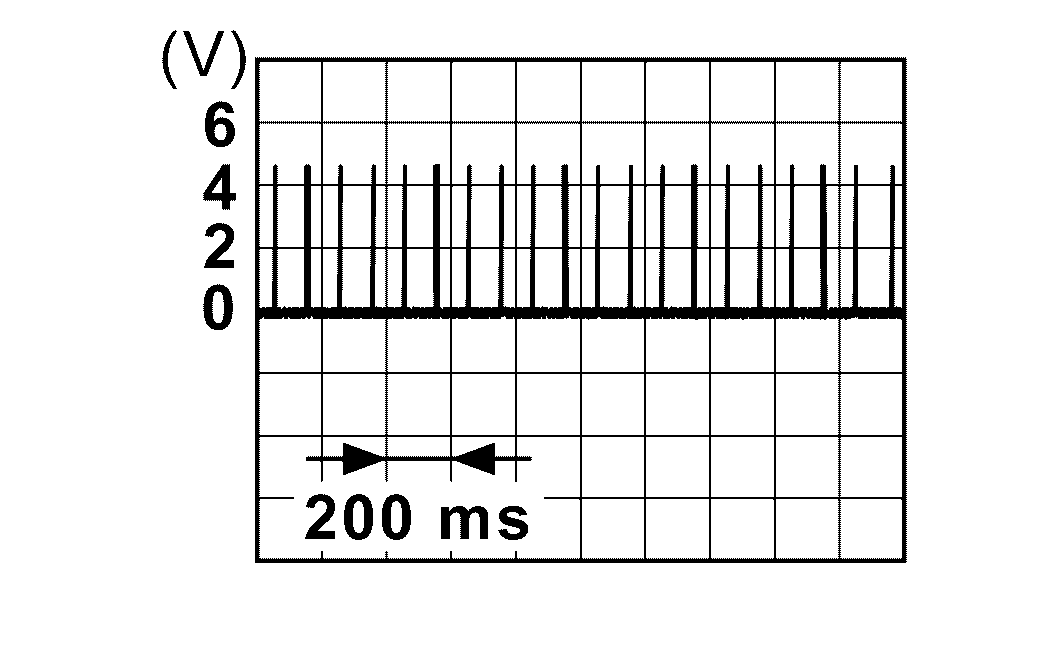

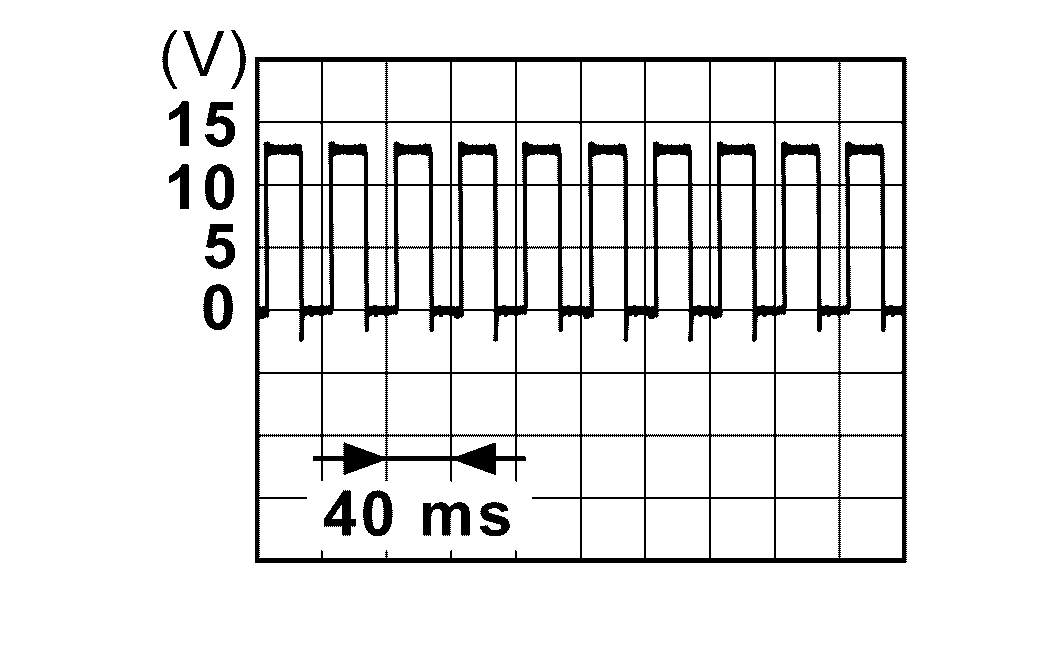

63 (W)	Ground	Rear power window hall sensor LH signal	Input	Power window motor	When motor is activated	Courtesy of NISSAN NORTH AMERICA, INC.
					Other than above	0 V
64 (GR)	Ground	Rear power window hall sensor LH ground	--	--		0 V
65 (R)	Ground	Rear power window hall sensor LH power supply	Output	Ignition switch OFF, ACC or ON		12 V
67 (V)	Ground	Back door UNLOCK	Output	Back door opener actuator	UNLOCK (When actuator is activated)	12 V
					Other than above	0 V
69 (GR)	Ground	Stop lamp (body side) RH	Output	Stop lamp (body side) RH	OFF	0 V

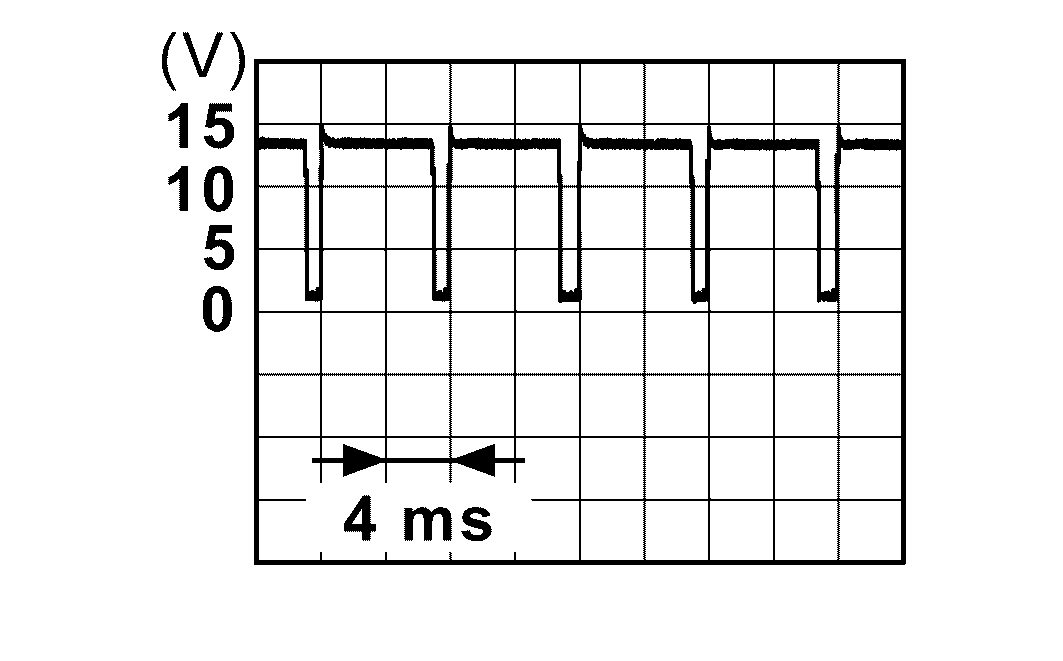

					ON	Courtesy of NISSAN NORTH AMERICA, INC.
70 (G)	Ground	Rear turn signal lamp LH	Output	Rear turn signal lamp LH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
71 (GR)	Ground	Back-up lamp RH	Output	Back-up lamp RH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
72 (Y)	Ground	License plate lamp RH	Output	License plate lamp RH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
73 (L)	Ground	Rear power window switch RH (UP)	Input	Rear power window switch RH	When pressing UP	5 V
					Other than above	12 V
74 (B)	Ground	Rear power window switch RH (DOWN)	Input	Rear power window switch RH	When pressing DOWN	5 V
					Other than above	12 V
75 (W)	Ground	Rear power window switch RH ground	--	--		0 V
76 (GR)	Ground	Rear power window hall sensor RH power supply	Output	Ignition switch OFF, ACC or ON		12 V
77 (R)	Ground	Sub battery power supply	Input	Ignition switch OFF, ACC or ON		9 - 16 V
78 (BR)	Ground	Terminal relay 15R1 control	Output	Ignition switch	ON or ACC	12 V
					OFF	0 V
80 (B)	Ground	Rear wiper relay control	Output	Rear wiper	ON	12 V
					OFF	0 V
82 (GR)	Ground	Tail lamp (body side) LH	Output	Tail lamp (body side) LH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
83 (P)	Ground	Terminal relay 15R2 control	Output	Ignition switch	ON or ACC	12 V
					OFF	0 V
85 (B)	Ground	Tail lamp (back door side) LH	Output	Tail lamp (back door) LH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
87 (R)	Ground	Battery power supply (via latching terminal relay 30G)	Input	No-load current	When no-load current is shutoff by no-load current management	0 V
					Other than above	12 V
89 (O)	Ground	Rear power window hall sensor RH ground	--	--		0 V
90 (V)	Ground	Rear power window hall sensor RH signal	Input	Power window motor	When motor is activated	Courtesy of NISSAN NORTH AMERICA, INC.
					Other than above	0 V
91 (P)	Ground	Fuel level sensor ground	--	--		0 V

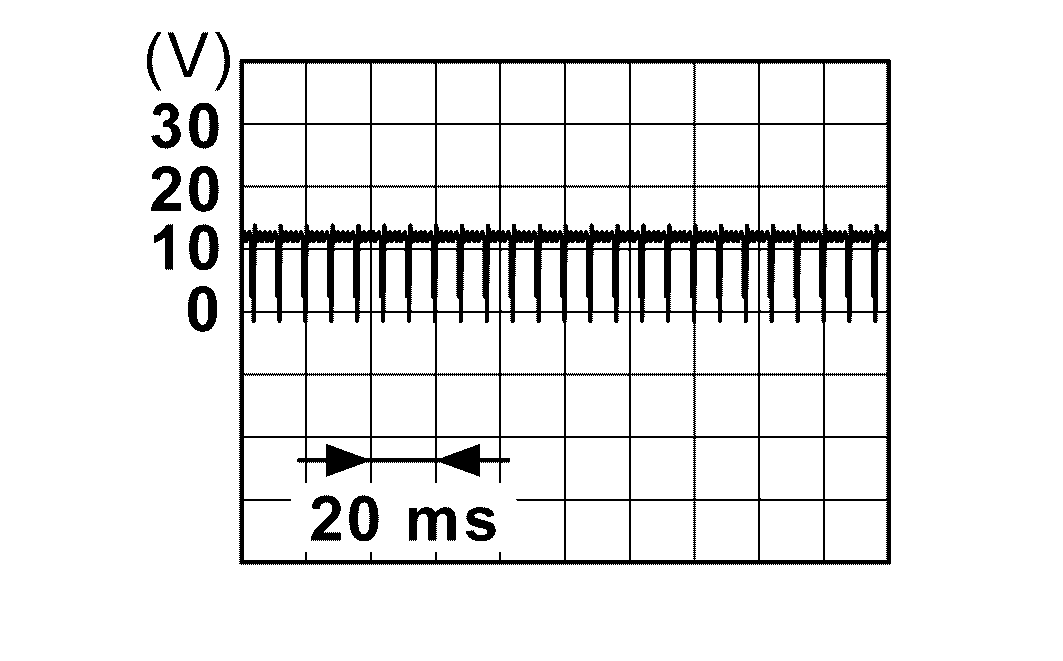

92 (L)* ⁴ (GR)* ⁵	Ground	Fuel level sensor	Input	Fuel level	When fuel is empty	Courtesy of NISSAN NORTH AMERICA, INC.
93 (L)	Ground	Fuel level sensor (For 4WD models)	Input	Fuel level	When fuel is empty	Courtesy of NISSAN NORTH AMERICA, INC.
94 (Y)	Ground	Fuel filler lid status	Input	Fuel filler lid	Open	0 V
					Close	12 V
95 (V)	Ground	LIN (Seat control unit)	Input/Output	--		--
97 (G)	Ground	Latching terminal relay 30G control 1	Output	Latching terminal relay 30G	Open by no-load current management	12 V
					Other than above	0 V
98 (B)	Ground	Latching terminal relay 30G ground 1	--	--		0 V
99 (W)	Ground	Latching terminal relay 30G ground 2	--	--		0 V
100 (V)	Ground	Latching terminal relay 30G control 2	Output	Latching terminal relay 30G	Close by no-load current management	12 V
					Other than above	0 V
101 (Y)	Ground	Ambient lamp (rear inside handle)	Output	Ambient lamp (rear inside handle)	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
102 (GR)	Ground	Ambient lamp (rear door grip)	Output	Ambient lamp (rear door grip)	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
103 (V)	Ground	Sub battery relay control	Output	When engine is restarted by stop/start system		12 V
				Other than above		0 V
105 (G)	Ground	Rear door LH UNLOCK	Output	Door lock actuator	UNLOCK (When actuator is activated)	12 V
					Other than above	0 V
106 (W)	Ground	Fuel filler lid UNLOCK	Output	Fuel filler lid lock actuator	UNLOCK (When actuator is activated)	12 V
					Other than above	0 V
107 (L)	Ground	Rear door LH LOCK	Output	Door lock actuator	LOCK (When actuator is activated)	12 V
					Other than above	0 V
108 (R)	Ground	Sub battery power supply	Input	Ignition switch OFF, ACC or ON		9 - 16 V
109 (O)	Ground	LIN (Roof)	Input/Output	--		--
112 (BR)	Ground	CAN-L (BODY 1)	Input/Output	--		--
113 (R)	Ground	CAN-H (BODY 1)	Input/Output	--		--
114 (B)	Ground	Injection relay control	Output	Ignition switch	ON	12 V
					ACC or OFF	0 V
115 (R)	Ground	Battery power supply (via decoupling relay)	Input	When engine is restarted by stop/start system		0 V
				Other than above		9 - 16 V
117 (R)	Ground	Battery power supply (via decoupling relay)	Input	When engine is restarted by stop/start system		0 V
				Other than above		9 - 16 V
118 (BR)	Ground	Ground	--	--		0 V
119 (V)	Ground	Rear washer control	Output	Rear washer	ON	12 V
					OFF	0 V
120 (GR)	Ground	Front washer control	Output	Front washer	ON	12 V
					OFF	0 V
121 (W)	Ground	Brake pedal status	Input	Brake pedal	While pressing	10 V
					Other than above	0 V
122 (Y)	Ground	Spray nozzle hose heater power supply	Output	Spray nozzle hose heater	Activate	Voltage should change when Spray nozzle hose heater is activated
123 (G)	Ground	Injection relay control	Output	Ignition switch	ON	12 V
					ACC or OFF	0 V
124 (BR/R)	Ground	Hood switch status 1	Input	Hood	Open	12 V
					Close	0 V
125 (B)	Ground	Ignition power supply	Output	Ignition switch	ON	12 V
					ACC or OFF	0 V
126 (GR)	Ground	Parking lamp LH	Output	Parking lamp LH	OFF	0 V
					ON	Voltage should change when the lamp is turned ON
129 (G)	Ground	Front wiper stop position	Output	Front wiper	In stop position	0 V
					Other than above	12 V
131 (Y)	Ground	Front fog lamp LH	Output	Front fog lamp LH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
132 (O)	Ground	High beam LH	Output	High beam LH	OFF	0 V
					ON	Voltage should change when the lamp is turned ON
133 (L)* ² (Y)* ³	Ground	Low beam RH	Output	Ignition switch OFF, ACC or ON		13.2 V
134 (BR)	Ground	Washer level switch ground	--	--		0 V
135 (P)	Ground	Horn control	Output	Horn	When pressing	12 V
					Other than above	0 V
136 (R)	Ground	Front wiper relay control	Output	Front wiper	Activate	12 V
					Other than above	0 V
137 (V)	Ground	Front wiper HI/LO relay control	Output	Front wiper	Front wiper (High) is activated	12 V
					Other than above	0 V
138 (G)	Ground	Brake fluid level switch	Input	--		--

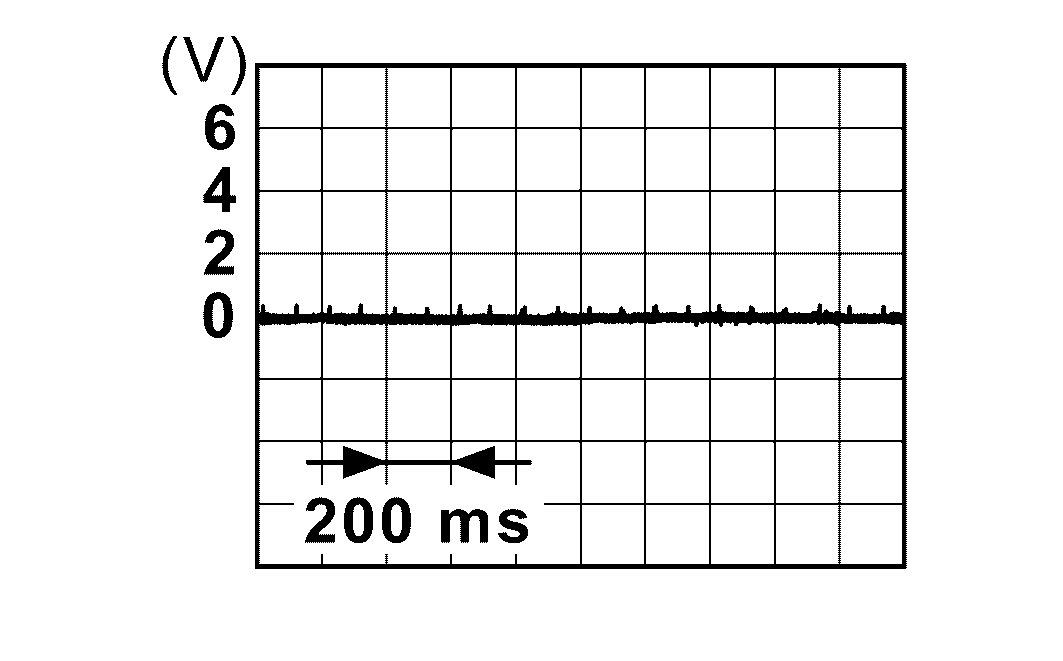

139 (L)	Ground	Washer level switch signal	Input	Washer fluid	Full	Courtesy of NISSAN NORTH AMERICA, INC.
					Empty	Courtesy of NISSAN NORTH AMERICA, INC.
140 (Y/GR)	Ground	Hood switch status 2	Input	Hood	Open	0 V
					Close	12 V
141 (R)	Ground	Warm start	Input	Ignition switch	ON	12 V
					ACC or OFF	0 V
142 (V)	Ground	Front turn signal lamp LH	Output	Front turn signal lamp LH	OFF	0 V
					ON	Voltage should change when the lamp is turned ON
143 (Y)	Ground	Front fog lamp RH	Output	Front fog lamp RH	OFF	0 V
					ON	Courtesy of NISSAN NORTH AMERICA, INC.
144 (W)	Ground	High beam RH	Output	High beam RH	OFF	0 V
					ON	Voltage should change when the lamp is turned ON
145 (GR)	Ground	Low beam LH	Output	Ignition switch OFF, ACC or ON		13.2 V
146 (P)	Ground	Front turn signal lamp RH	Output	Front turn signal lamp RH	OFF	0 V
					ON	Voltage should change when the lamp is turned ON
148 (V)	Ground	Front brake wear sensor RH	Input	Front brake wear sensor	When brake wear is changed	Voltage should change when brake wear is changed
150 (GR)	Ground	Parking lamp RH	Output	Parking lamp RH	OFF	0 V
					ON	Voltage should change when the lamp is turned ON
152 (L)	Ground	LIN (Battery sensor)	Input/Output	--		--
157 (O)	Ground	SSK status	Input	Ignition switch	OFF	12.5 V

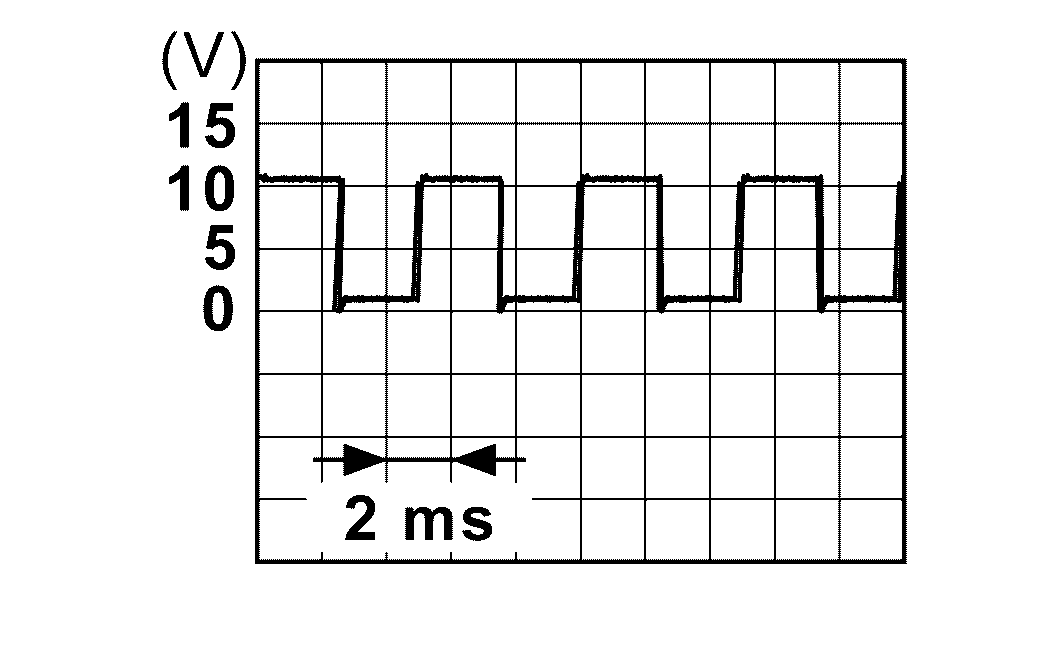

					ACC or ON	Courtesy of NISSAN NORTH AMERICA, INC.
158 (R)	Ground	Coolant level switch signal	Input	Coolant level switch	When coolant level is changed	Voltage should change when coolant level is changed
159 (BR)	Ground	Coolant level switch ground	--	--		0 V
161 (P)	Ground	Ambient sensor ground	--	--		0 V
162 (G)	Ground	Ambient sensor signal	Input	Ambient sensor	When temperature is changed	Voltage should change when temperature is changed
164 (O)	Ground	Brake fluid level switch ground	--	--		0 V
166 (R)	Ground	Decoupling relay control	Output	When engine is restarted by stop/start system		12 V
				Other than above		0 V

* ¹ : This harness is connected but not used.

* ² : Halogen headlamp models

* ³ : LED headlamp models

* ⁴ : 2WD models

* ⁵ : 4WD models
