Removal and Installation: Installation

Note the following, and install in the reverse order of the removal.

• Check that there is no foreign material like iron powder or damage of front axle rpm sensor pick-up. Install after cleaning when there are foreign material like iron powder, or replace when there is a malfunction.
• Check that there is no foreign material like iron powder or damage on inner surface of front axle rpm sensor mounting hole of steering knuckle and sensor rotor. Install after cleaning when there are foreign material like iron powder, or replace when there is a malfunction.

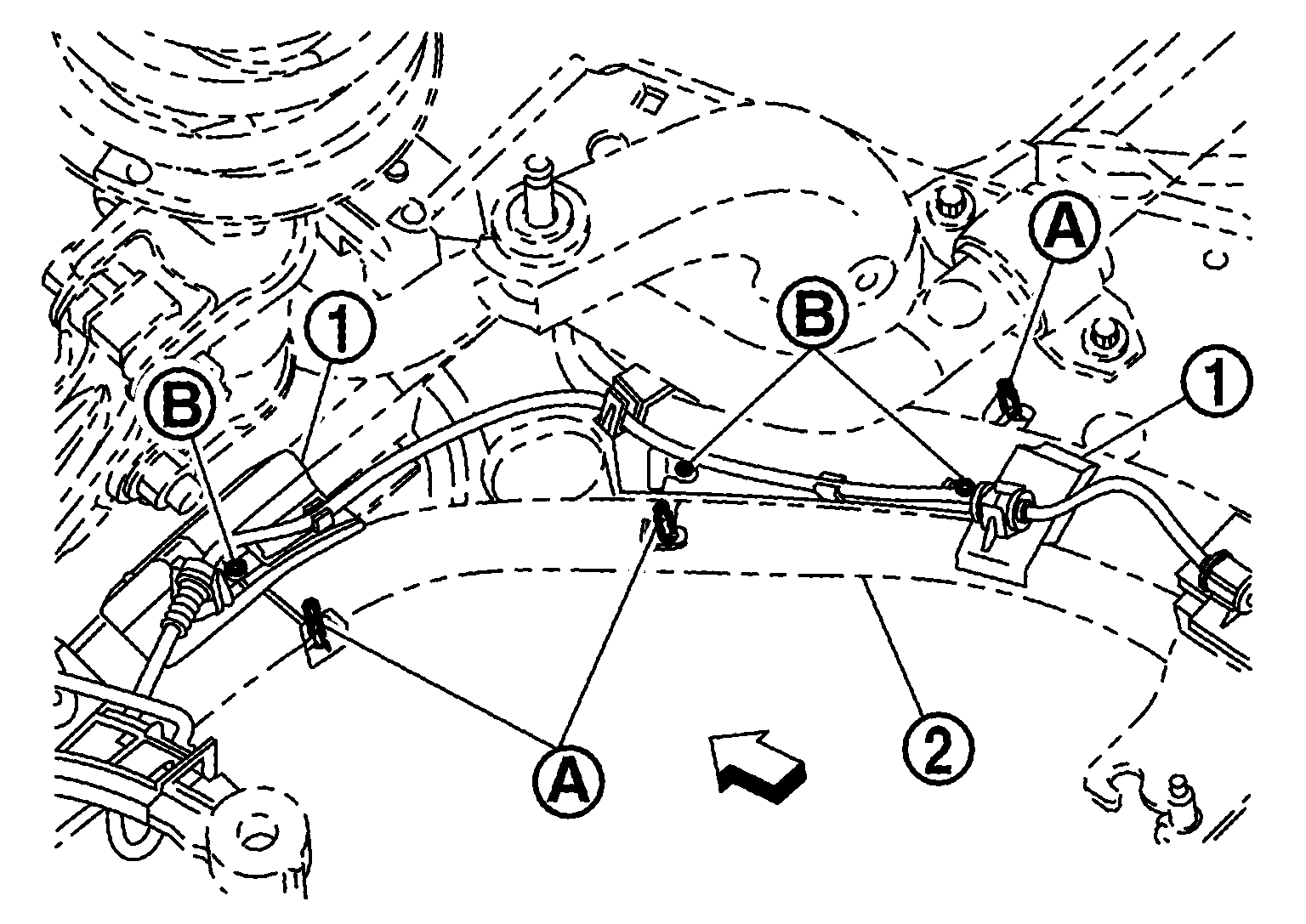

• Install harness brackets, follow the procedure below.
  • Set harness brackets to the transverse link .

    Courtesy of NISSAN NORTH AMERICA, INC.

    : Vehicle front

  • Insert pins of harness brackets to holes of harness brackets until locks.
