Special Service Tools

Tool number (TechMate No.) Tool name		Description

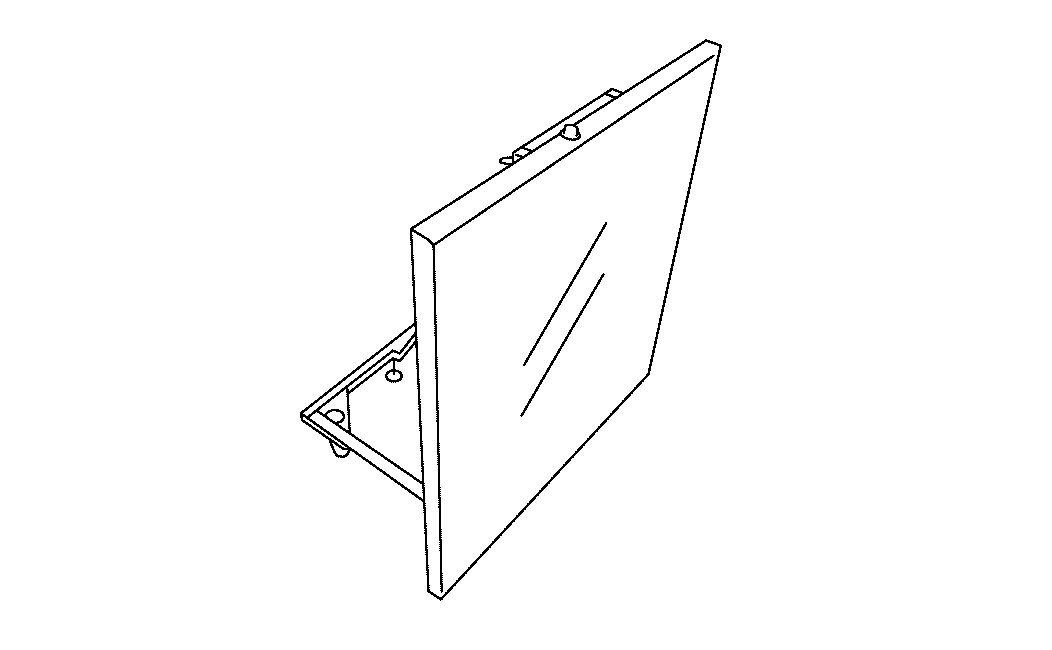

KV99112700 (--) ICC target board	Courtesy of NISSAN NORTH AMERICA, INC.	Uses for ICC sensor alignment
-- (1-20-2851-1) ICC Alignment Kit	Courtesy of NISSAN NORTH AMERICA, INC.	Adjusting ICC and radar sensors
-- (J-51093) ICC sensor cone alignment tool	Courtesy of NISSAN NORTH AMERICA, INC.	Uses for ICC sensor alignment

NOTE:

For radar alignment, KV99112700 or a set of TechMate No. SST is to be used.
Tools 1-20-2721-1-IF, 1-20-2722-1-IF and J-50808 have been superseded and are no longer available, but may still be used for ICC sensor alignment.
