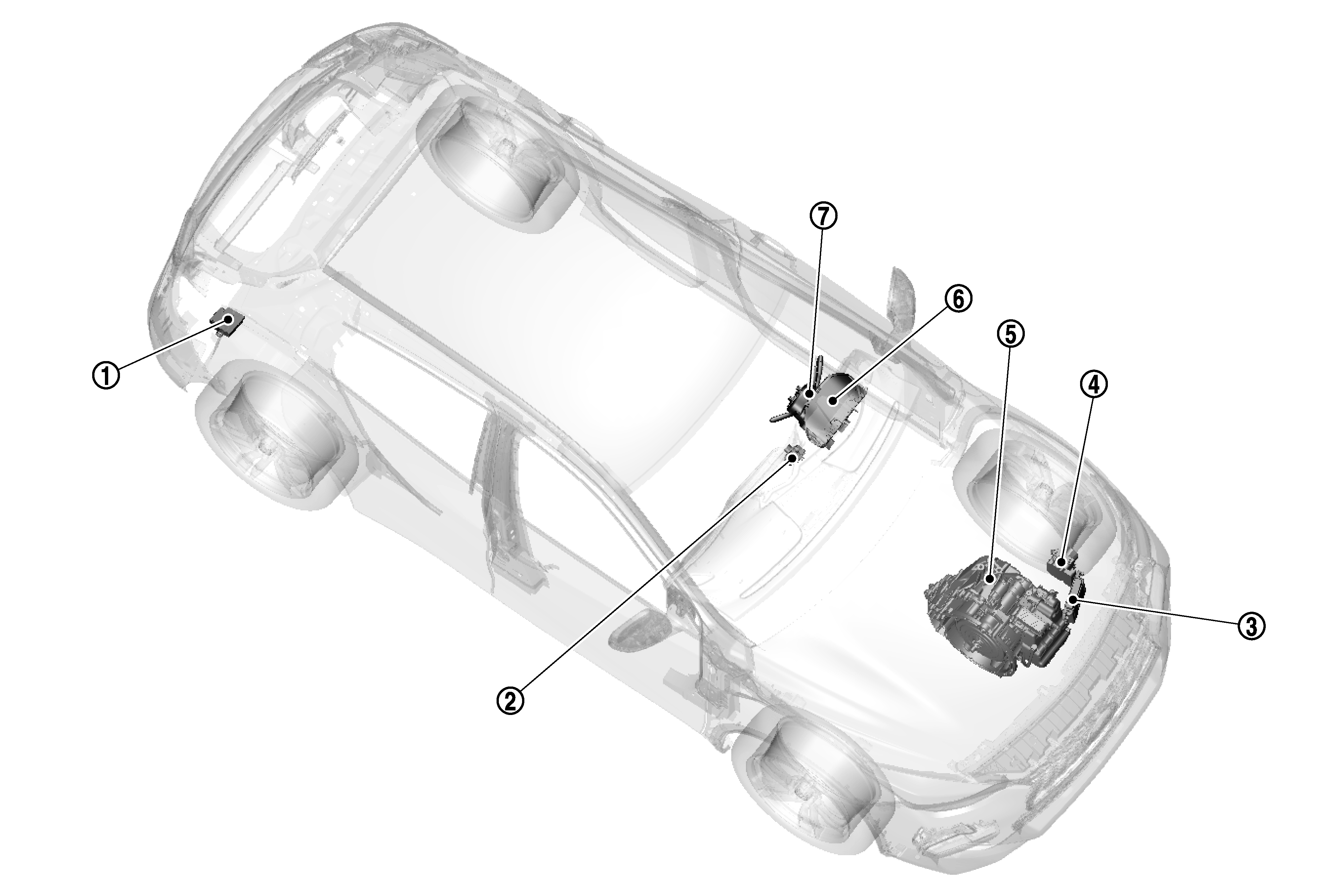

Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

x: Applicable

No.	Component	Description
	Electric parking brake control module	Transmits parking brake status signal Refer to Component Parts Location for detailed installation location
	Electric ignition switch control unit	Transmits/Receives set maximum speed status signal, speed setting status signal, and meter display signal Refer to Component Parts Location for detailed installation location
	ECM	Transmits mainly the following signals Engine running signal Drive operational signal Gear range status signal Acceleratetor pedal position signal Refer to Component Parts Location for detailed installation location
	Electric stability program control unit	Electric stability program control unit contains the control for the ASCD and ASL. Refer to Component Parts Location for detailed installation location
	TCM	Transmits the gear range signal Refer to Component Parts Location for detailed installation location
	Combination meter	Performs the following operations using the received signals Displays the ASCD or ASL operation status: Menu Displayed by Pressing Each Switch (ASCD) or Menu Displayed by Pressing Each Switch (ASL) Operates warning buzzer Refer to Component Parts Location for detailed installation location
	Steering column control module	Transmits cruise control lever signal Refer to Component Parts Location for detailed installation location
