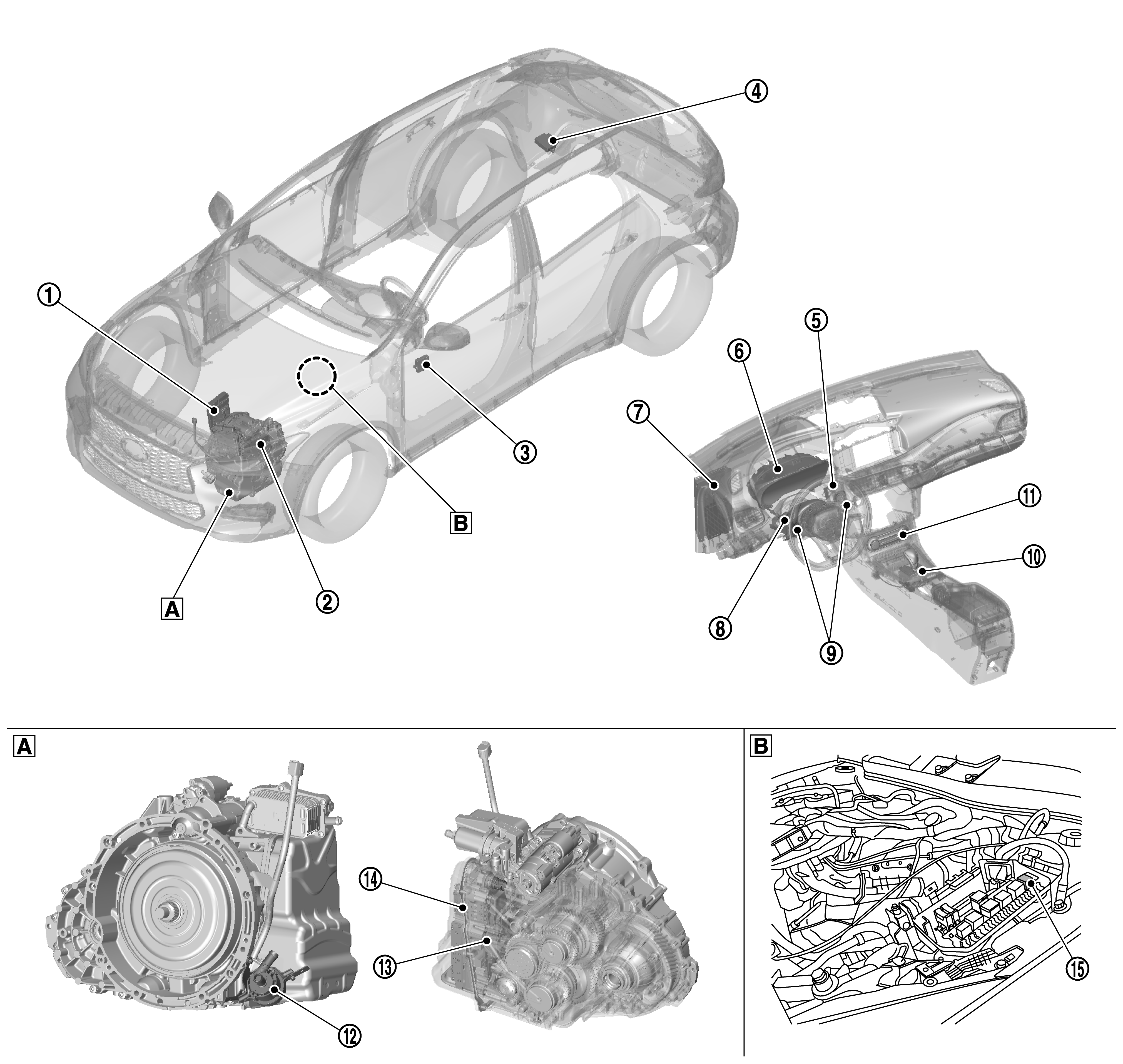

Component Parts Location
|
|
Transaxle assembly |
|
Engine room LH |
|
No. |
Component |
Function |
|
|
ECM |
Mainly transmits the following status to TCM via CAN communication.
Refer to Component Parts Location for detailed installation location. |
|
|
Electronic stability program control unit |
Transmits the wheel speed status to TCM via CAN communication. Refer to Component Parts Location for detailed installation location. |
|
|
Left front door control unit |
Transmits the driver door switch status to TCM via CAN communication. Refer to Component Parts Location for detailed installation location. |
|
|
Electric parking brake control module |
Transmits the electric parking brake status to TCM via CAN communication. Refer to Component Parts Location for detailed installation location. |
|
|
Electronic ignition switch control unit |
Mainly transmits the following status to TCM via CAN communication.
Refer to Component Parts Location for detailed installation location. |
|
|
Combination meter |
Mainly transmits the warning and indicator lamp status to TCM via CAN communication. Refer to Component Parts Location for detailed installation location. |
|
|
BCM |
Mainly transmits the driver door switch status to TCM via CAN communication. Refer to Component Parts Location for detailed installation location. |
|
|
Steering column control module |
Transmits the paddle shifter status to TCM via CAN communication. Refer to Component Parts Location for detailed installation location. |
|
|
Paddle shifter |
|
|
|
Electric shift control unit |
Transmits the shift position status to TCM via CAN communication. Refer to Electric Shift Control Unit . |
|
|
A/C auto amp. |
Refer to Component Parts Location for detailed installation location. |
|
|
Water pump |
|
|
|
Control valve |
|
|
|
TCM |
|
|
|
Water pump relay |
Water pump relay supplies motor drive voltage to water pump. |
