Exploded View

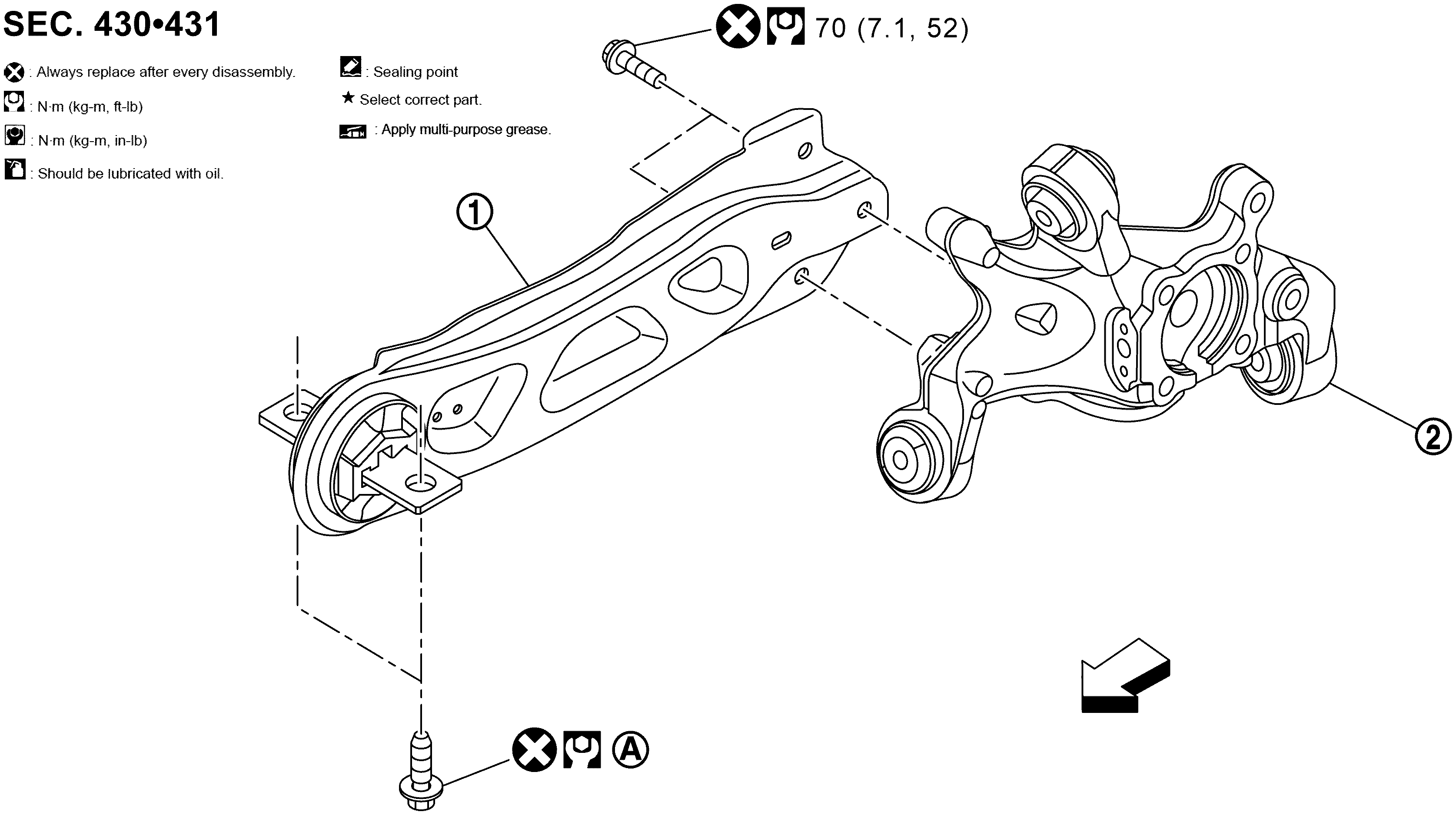

Fig 1: Trailing Arm Replacement Components With Torque Specifications
GNSJSEIA1423GB-423Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Trailing arm

SYMBOL

Axle housing

SYMBOL : Tightening must be done following the installation procedure. Refer to Removal and Installation .

SYMBOL : Vehicle front

SYMBOL : Always replace after every disassembly.

SYMBOL : N.m (kg-m, ft-lb)
