Exploded View

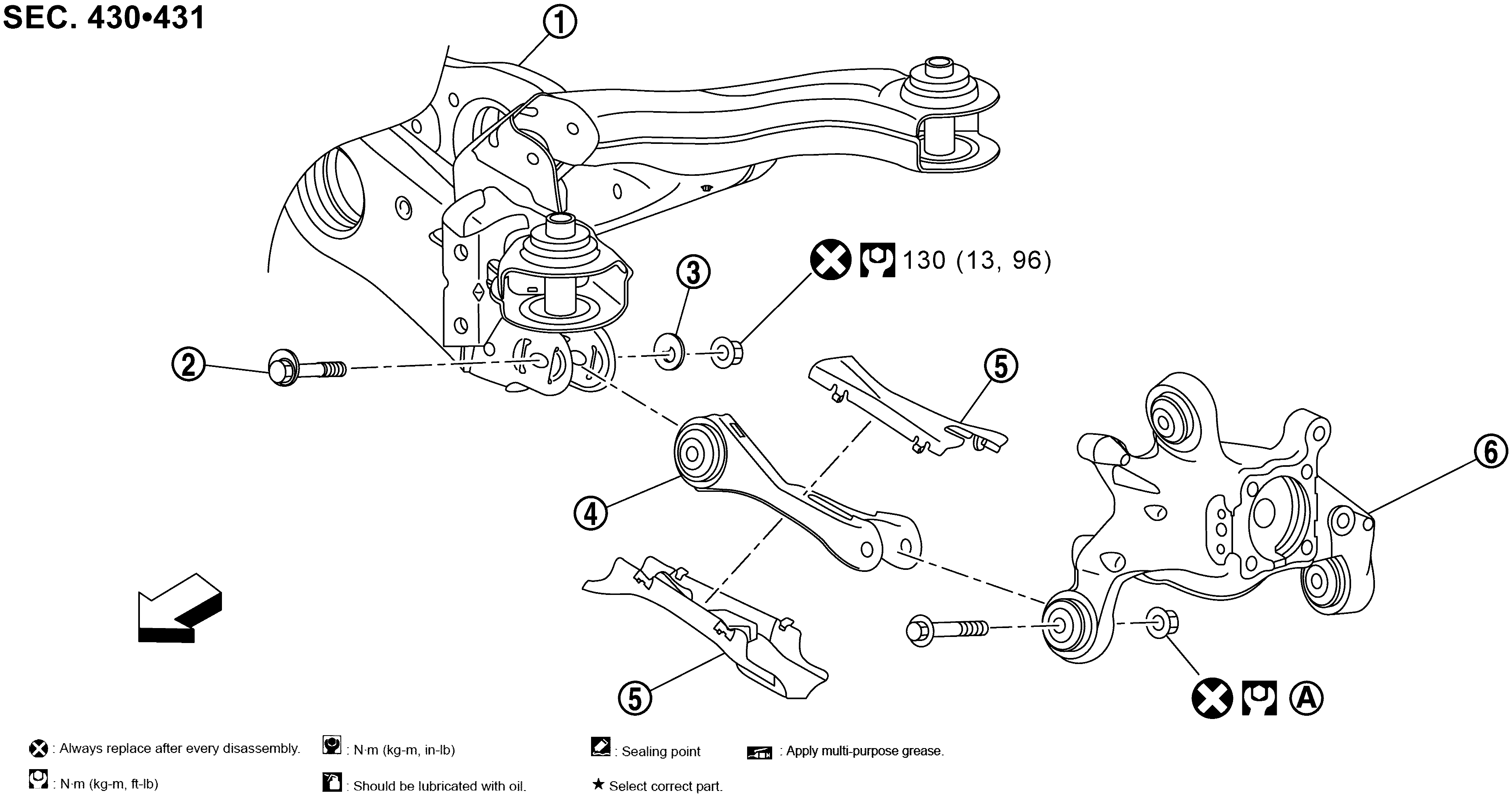

Fig 1: Front Lower Link Replacement Components With Torque Specifications
GNSJSEIA1424GB-424Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear suspension member

SYMBOL

Adjusting bolt

SYMBOL

Eccentric disk

SYMBOL

Front lower link

SYMBOL

Protector

SYMBOL

Axle housing

SYMBOL : Tightening must be done following the installation procedure. Refer to Removal and Installation .

SYMBOL : Vehicle front

SYMBOL : Always replace after every disassembly.

SYMBOL : N.m (kg-m, ft-lb)
