Component Parts Location

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

GNSJSOIA2350Z-350

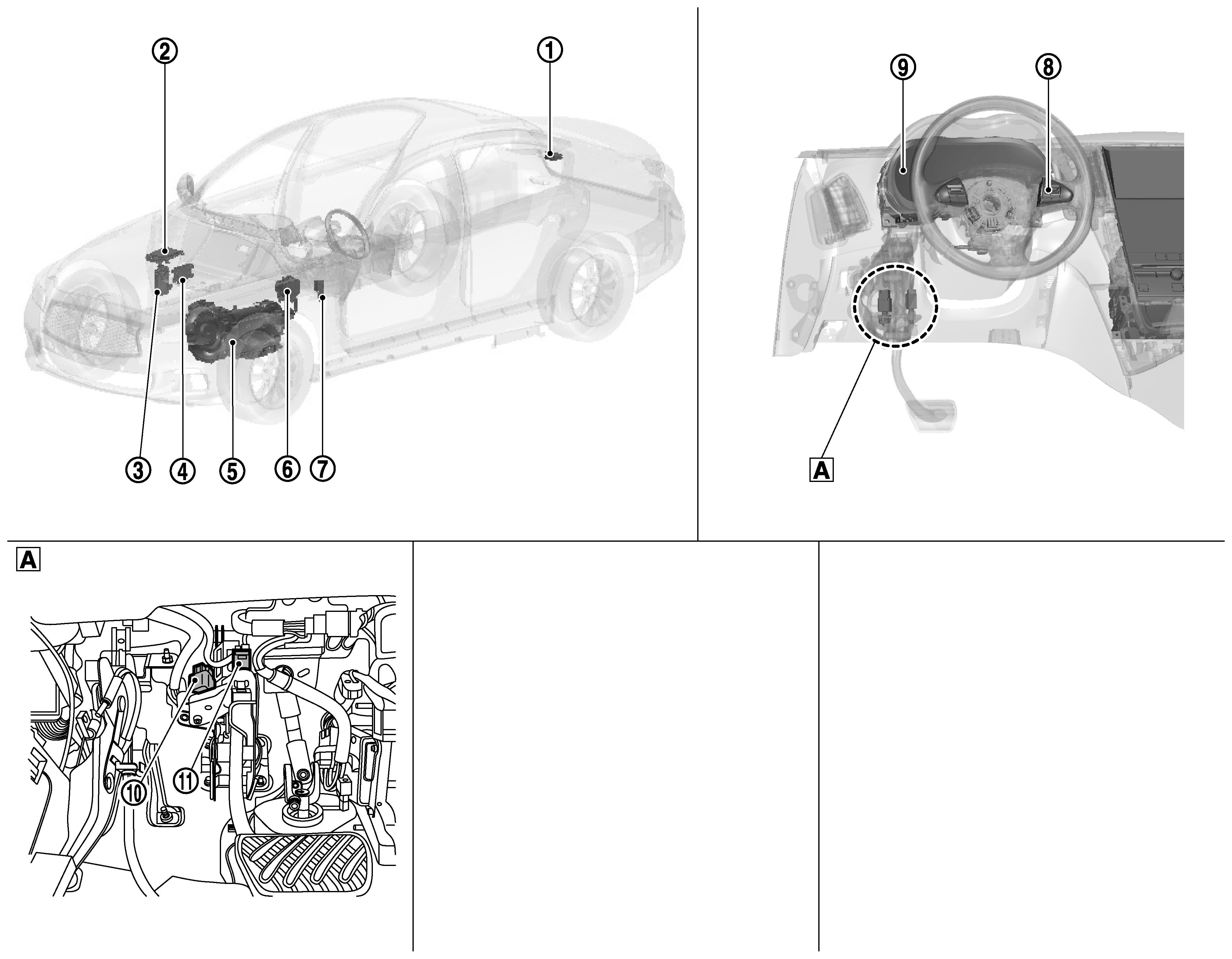

Courtesy of NISSAN NORTH AMERICA, INC.

Upper side of brake pedal

x: Applicable

No.	Component	Description
	ADAS control unit	Refer to ADAS Control Unit Refer to Component Parts Location for detailed installation location
	ECM	ECM transmits the accelerator pedal position signal, etc. to ADAS control unit via CAN communication ECM controls the fuel injection quantity based on the engine torque demand received from the ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location
	BCM	BCM transmits the stop lamp switch signal to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location
	EMCM	EMCM transmits the brake pedal position switch signal to ADAS control unit via CAN communication EMCM transmits the brake pedal position switch signal, stop lamp switch signal to ECM control unit via CAN communication Refer to Component Parts Location for detailed installation location
	TCM	TCM transmits the signal related to A/T control to ADAS control unit via ECM Refer to Component Parts Location for detailed installation location
	ABS actuator and electric unit (control unit)	ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp switch signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location
	Chassis control module	Chassis control module transmits the a drive mode signal to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location
	Steering switch	Description: Refer to ASCD Steering Switch Switch name and function: Switch Name and Function
	Combination meter	Performs the following operations using the signals received from the ADAS control unit via the CAN communication Description: Refer to Combination Meter System display and warning: Menu Displayed by Pressing Each Switch
	Brake pedal position switch	Refer to Brake Pedal Position Switch / Stop Lamp Switch
	Stop lamp switch	Refer to Brake Pedal Position Switch / Stop Lamp Switch
