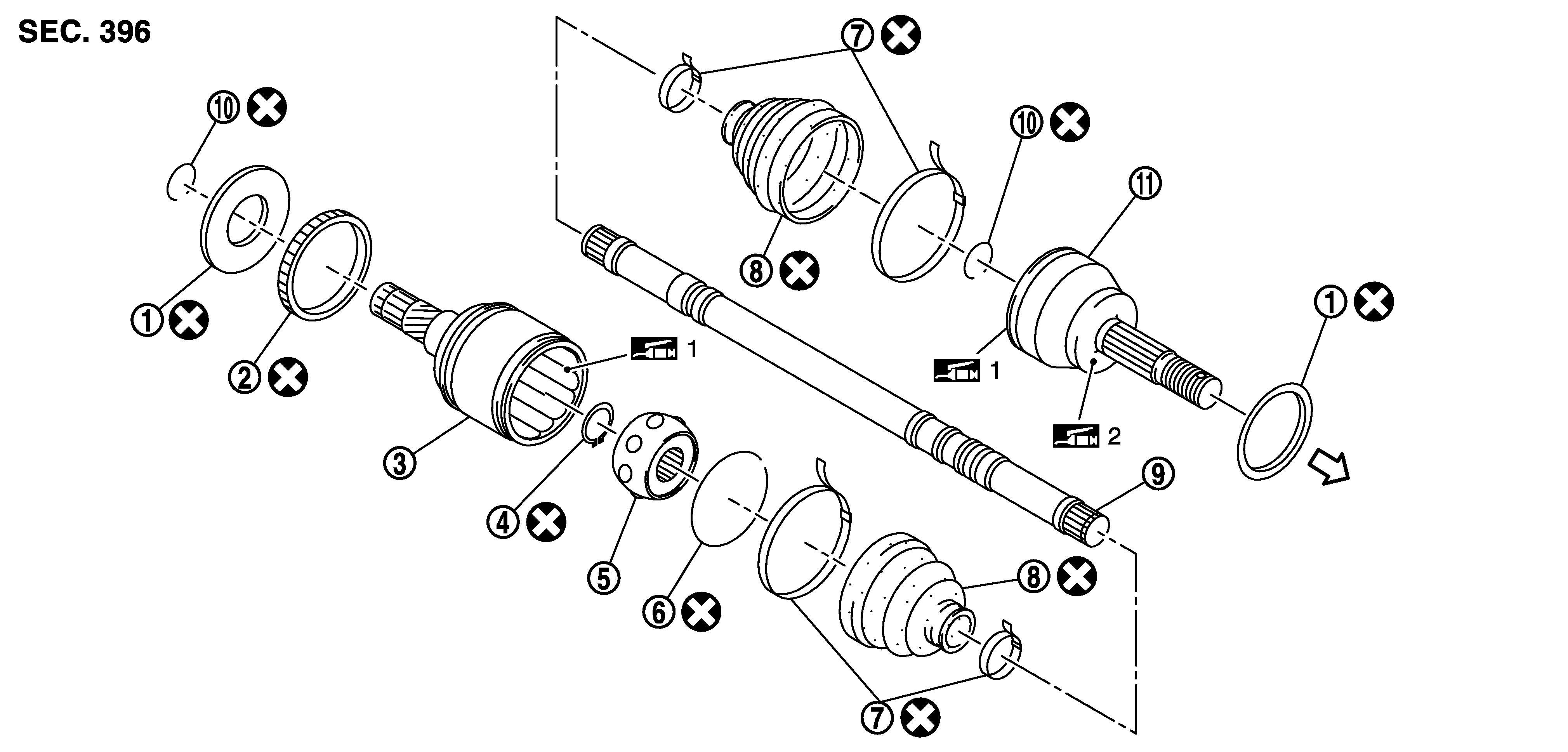

Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	Dust shield	Sensor rotor	Housing
	Stopper ring	Ball cage/steel ball/inner race assembly	Stopper ring
	Boot band	Boot	Shaft
	Circular clip	Joint sub-assembly
: Wheel side
1: NISSAN genuine grease or an equivalent.
2: Apply paste [service parts (440037S000)].
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
