Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

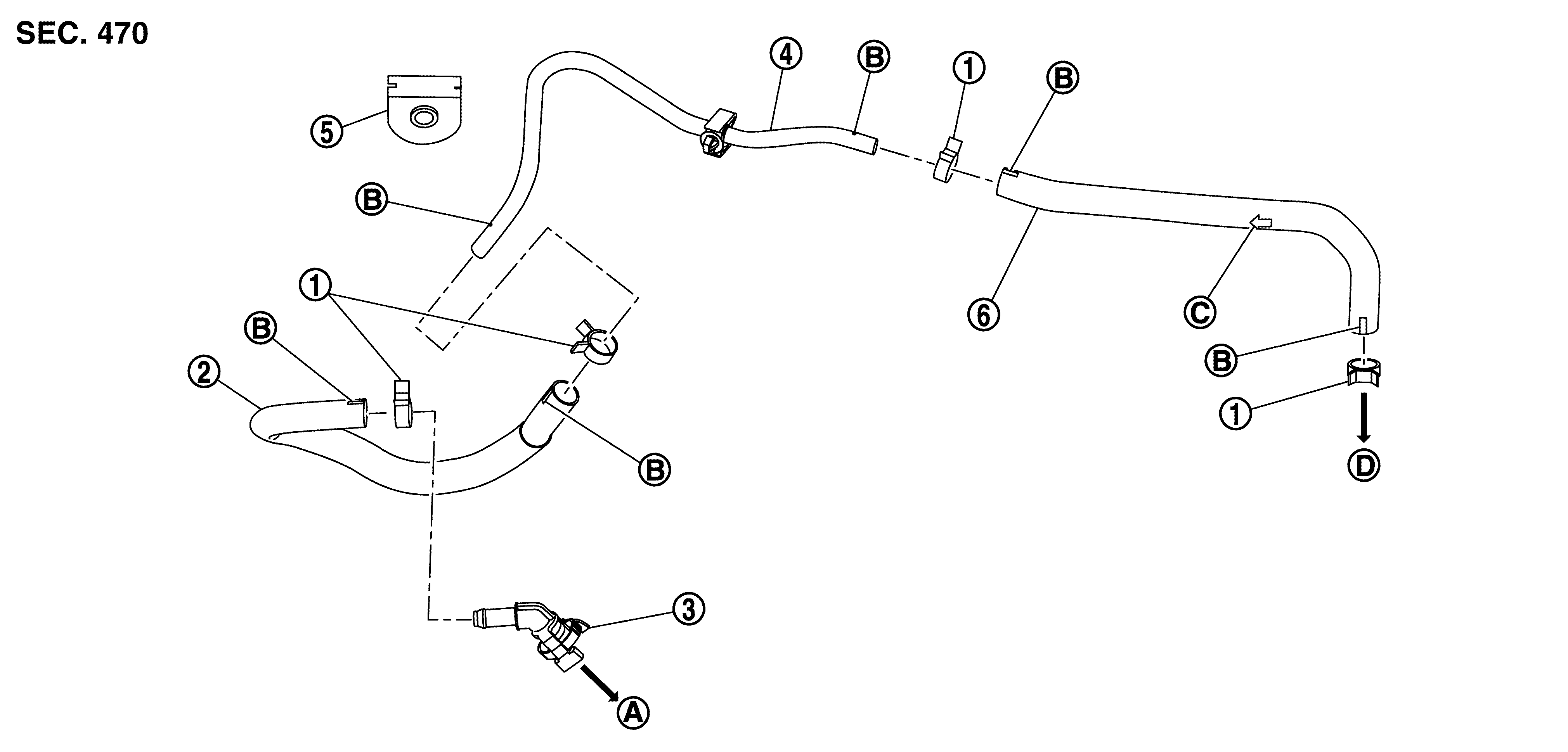

GNSJSFIA2583Z-583Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Clamp

SYMBOL

Vacuum hose

SYMBOL

Connector

SYMBOL

Vacuum piping

SYMBOL

Grommet

SYMBOL

Vacuum hose (built-in check valve)

SYMBOL

To vacuum pump

SYMBOL

Paint mark

SYMBOL

Stamp indicating grommet installation position

SYMBOL

To brake booster
