Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

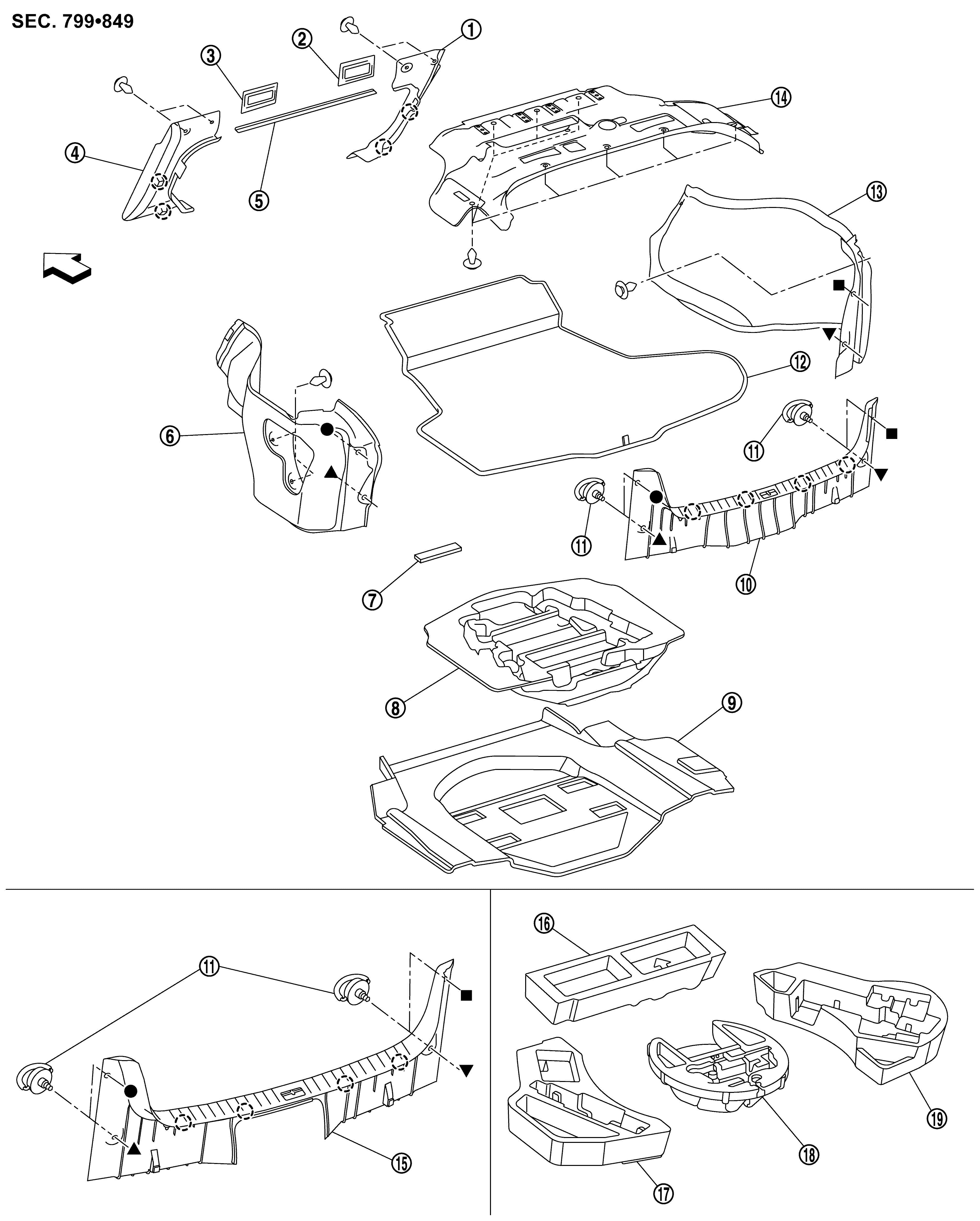

Fig 1: Bench seat models

Courtesy of NISSAN NORTH AMERICA, INC.

	Rear seatback center finisher	Rear seatback welt	Trunk front finisher
	Trunk side finisher LH	Trunk floor front spacer ^*¹	Trunk center box ^*¹
	Thinsulate	Trunk rear plate ^*¹	Trunk net hook
	Trunk side finisher RH	Trunk upper finisher	Trunk floor carpet
	Trunk rear plate ^*²	Trunk floor front spacer ^*²	Trunk floor rear spacer LH ^*²
	Trunk floor rear spacer center ^*²	Trunk floor rear spacer RH ^*²
	: Clip
	: Pawl
	: Vehicle front
, , , : Indicates that the part is connected at points with same symbol in actual vehicle.

*1: Without spare tire.

*2: With spare tire.

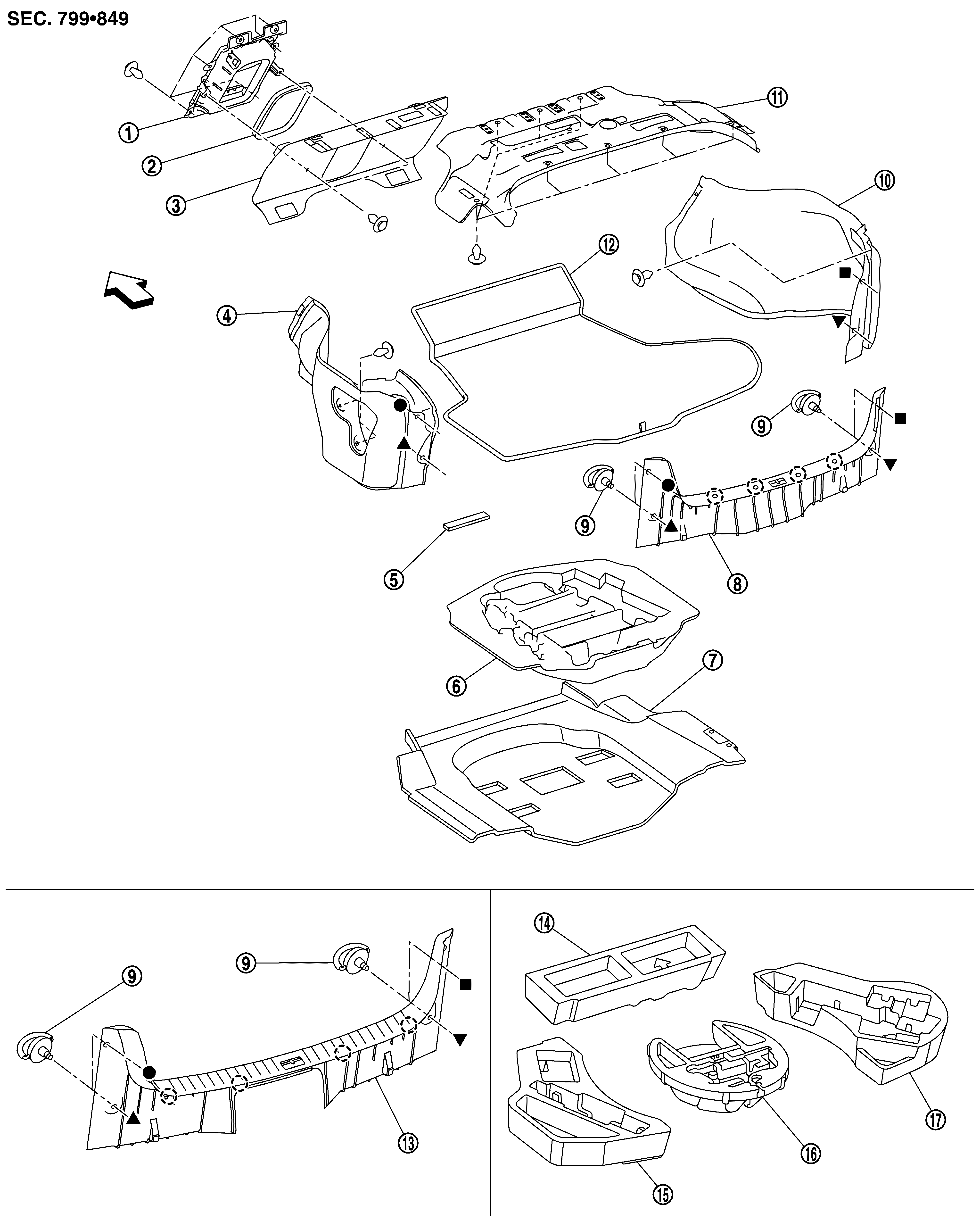

Fig 2: 6 : 4 separate seat models

Courtesy of NISSAN NORTH AMERICA, INC.

	Rear seatback finisher RH	Rear seat striker cover RH	Rear seat striker cover LH
	Rear seatback finisher LH	Rear seatback welt	Trunk side finisher LH
	Trunk floor front spacer ^*¹	Trunk center box ^*¹	Thinsulate
	Trunk rear plate ^*¹	Trunk net hook	Trunk floor carpet
	Trunk side finisher RH	Trunk upper finisher	Trunk rear plate ^*²
	Trunk floor front spacer ^*²	Trunk floor rear spacer LH ^*²	Trunk floor rear spacer center ^*²
	Trunk floor rear spacer RH ^*²
	: Clip
	: Pawl
	: Vehicle front
, , , : Indicates that the part is connected at points with same symbol in actual vehicle.

*: Without spare tire.

*: With spare tire.
