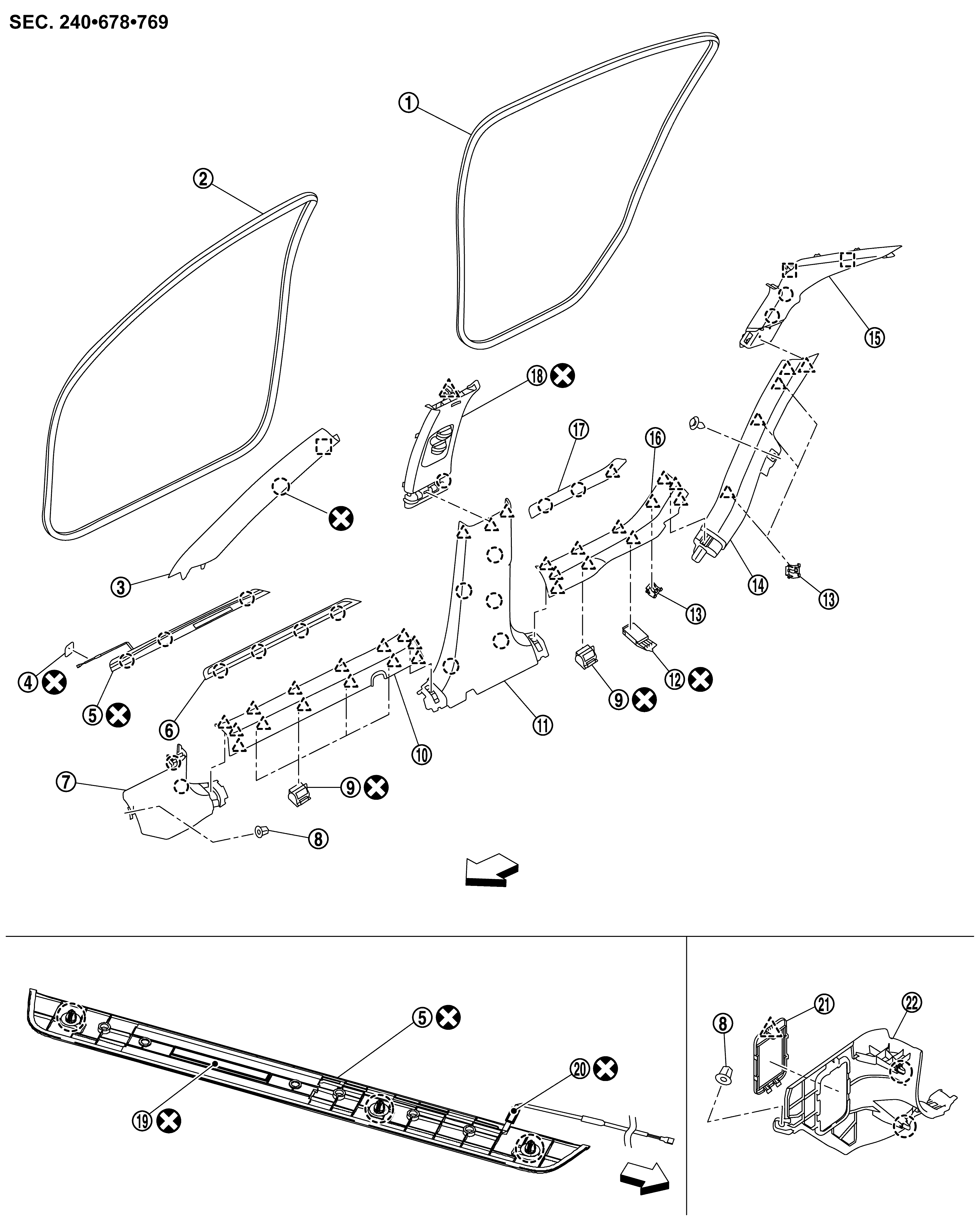

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Rear body side welt |
|
Front body side welt |
|
Front pillar garnish |
|
|
Flat wire protector *1 |
|
Front kicking plate outer *1 |
|
Front kicking plate outer *2 |
|
|
Dash side finisher RH |
|
Dash clip |
|
Harness clip |
|
|
Front kicking plate inner |
|
Center pillar lower garnish |
|
Harness clip |
|
|
Metal clip |
|
Rear wheel house garnish |
|
Rear pillar finisher |
|
|
Rear kicking plate inner |
|
Rear kicking plate outer |
|
Center pillar upper garnish |
|
|
Double-sided tape *1 |
|
Double-sided tape *1 |
|
Fuse lid |
|
|
Dash side finisher LH |
||||
|
|
: Clip |
||||
|
|
: Pawl |
||||
|
|
: Metal clip |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: Vehicle front |
||||
*1 : With kicking plate lamp
*2 : Without kicking plate lamp
