Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

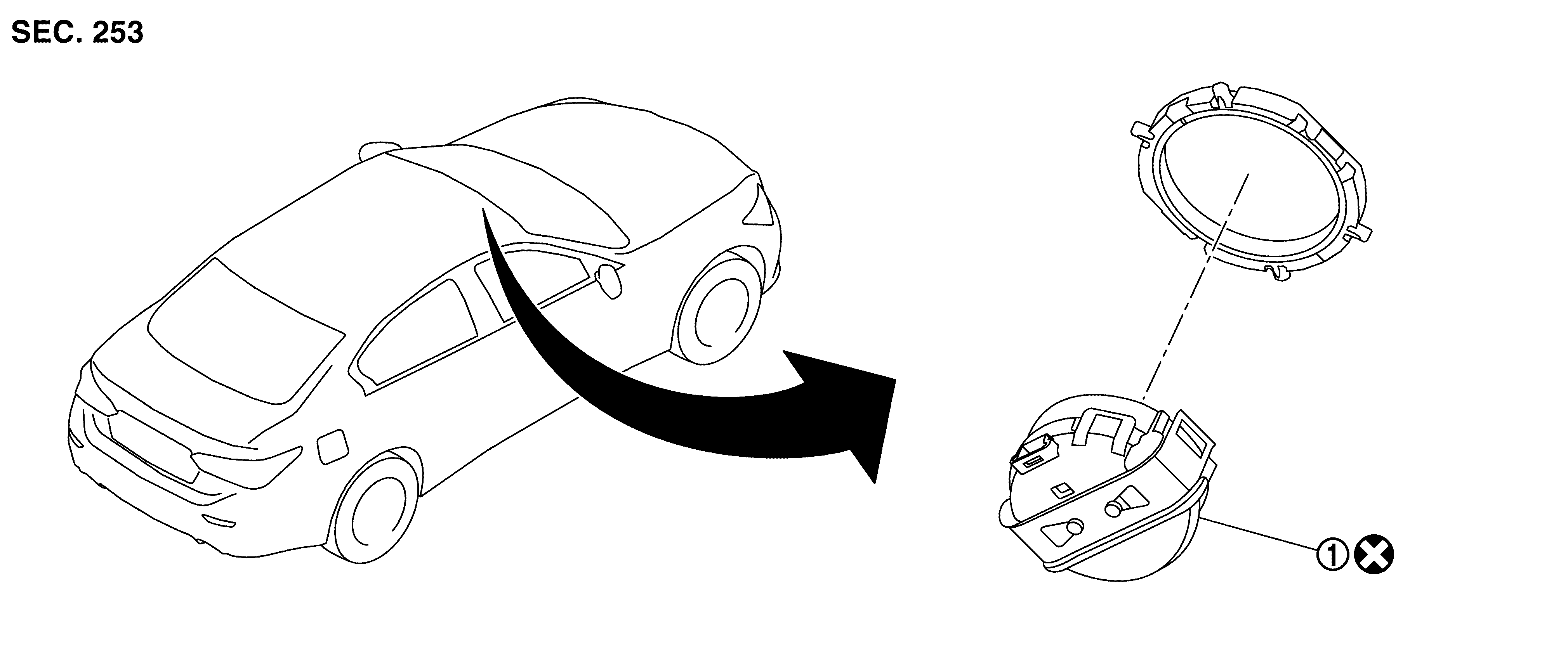

GNSJMLIA4173Z-173Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rain sensor

SYMBOL

: Always replace after every disassembly.
