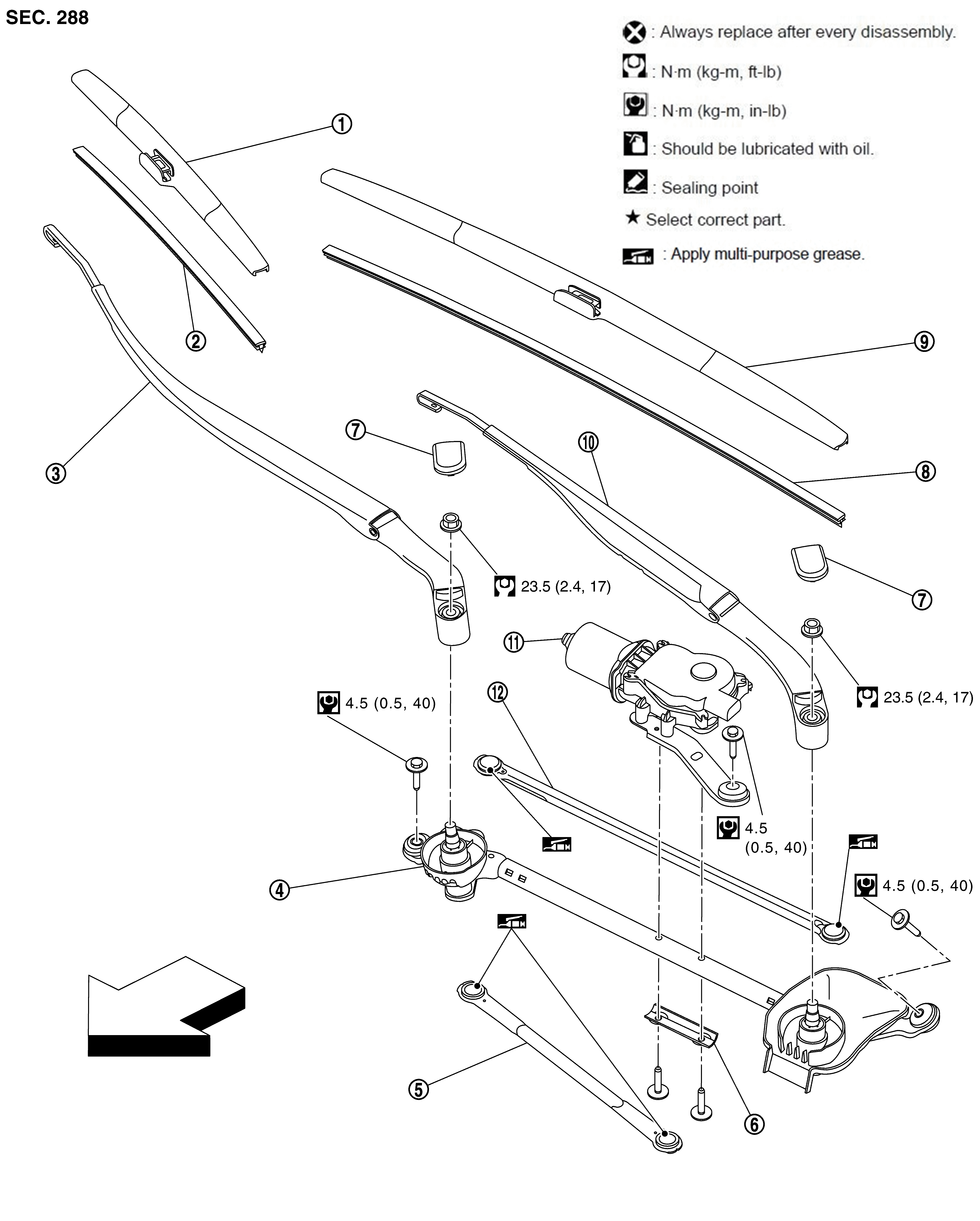

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Wiper blade RH
|
|
Wiper refill RH
|
|
Wiper arm RH
|
|
|
Wiper linkage *
|
|
Wiper link 1 *
|
|
Spacer *
|
|
|
Wiper arm cap
|
|
Wiper refill LH
|
|
Wiper blade LH
|
|
|
Wiper arm LH
|
|
Wiper motor *
|
|
Wiper link 2 *
|
|
|
: Vehicle front
|
|
|
: N.m (kg-m, in-lb)
|
|
|
: N.m (kg-m, ft-lb)
|
|
|
: Nissan MP special grease No. 2
|
*
: Part of wiper drive assembly.
