Meter Control Switch

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

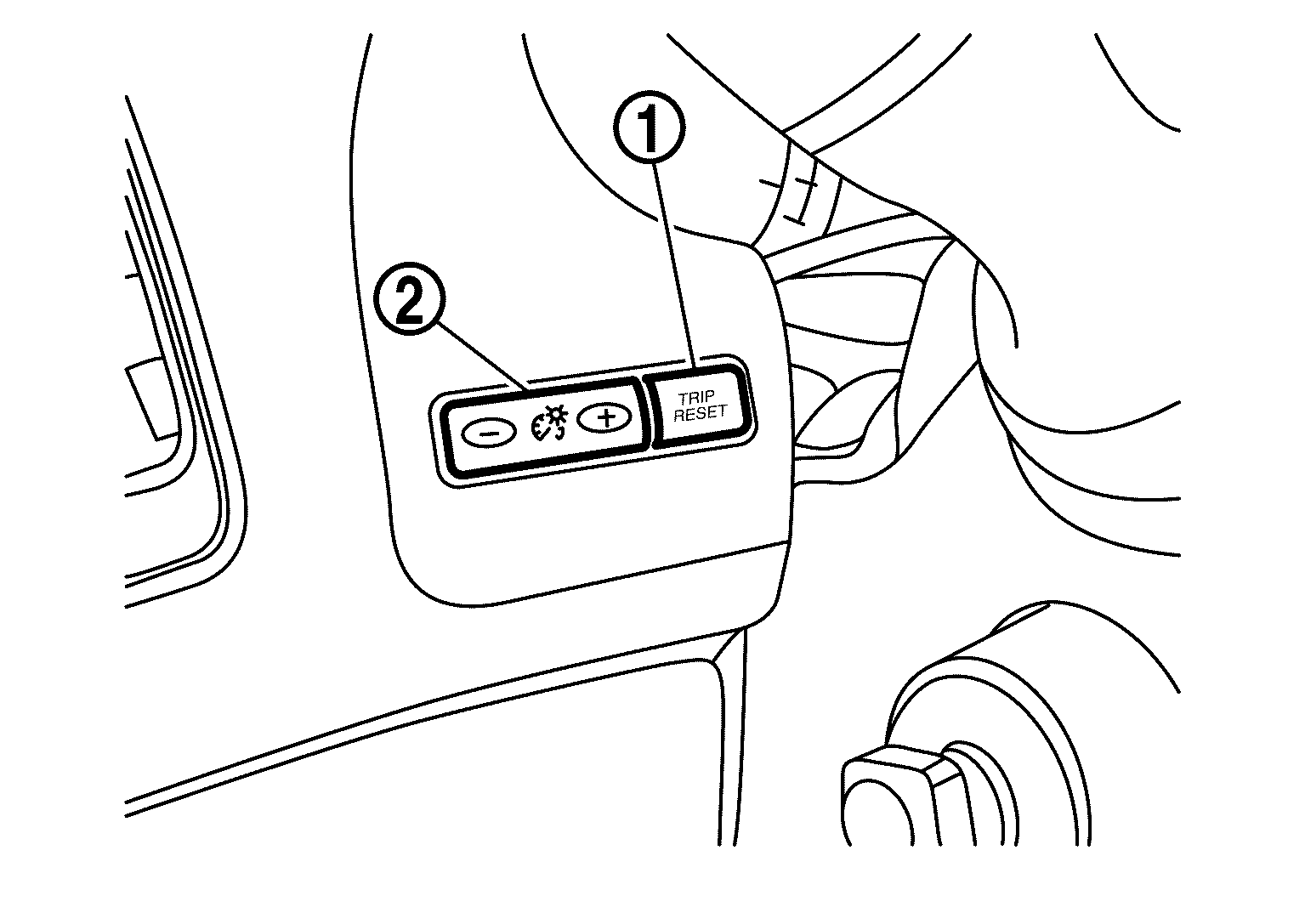

The illumination control switch is located on the cluster lid A.

Courtesy of NISSAN NORTH AMERICA, INC.
Transmits the following signals to the combination meter.
- Trip reset switch signal
- Illumination control switch signal (+)
- Illumination control switch signal (-)

No.	Switch name	Operation	Description
	Trip reset switch	Press	The trip meter can be switched between A and B. Trip meter A/B can be reset by pressing and holding the trip reset switch. A trip computer value displayed on the information display can be reset by pressing and holding the trip reset switch for 1 second or more. All trip computer values can be reset by pressing and holding the trip reset switch for 3 seconds or more.
	Illumination control switch	Press	An illuminance level of the back light of the combination meter can be adjusted.
