Exploded View: Disassembly

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

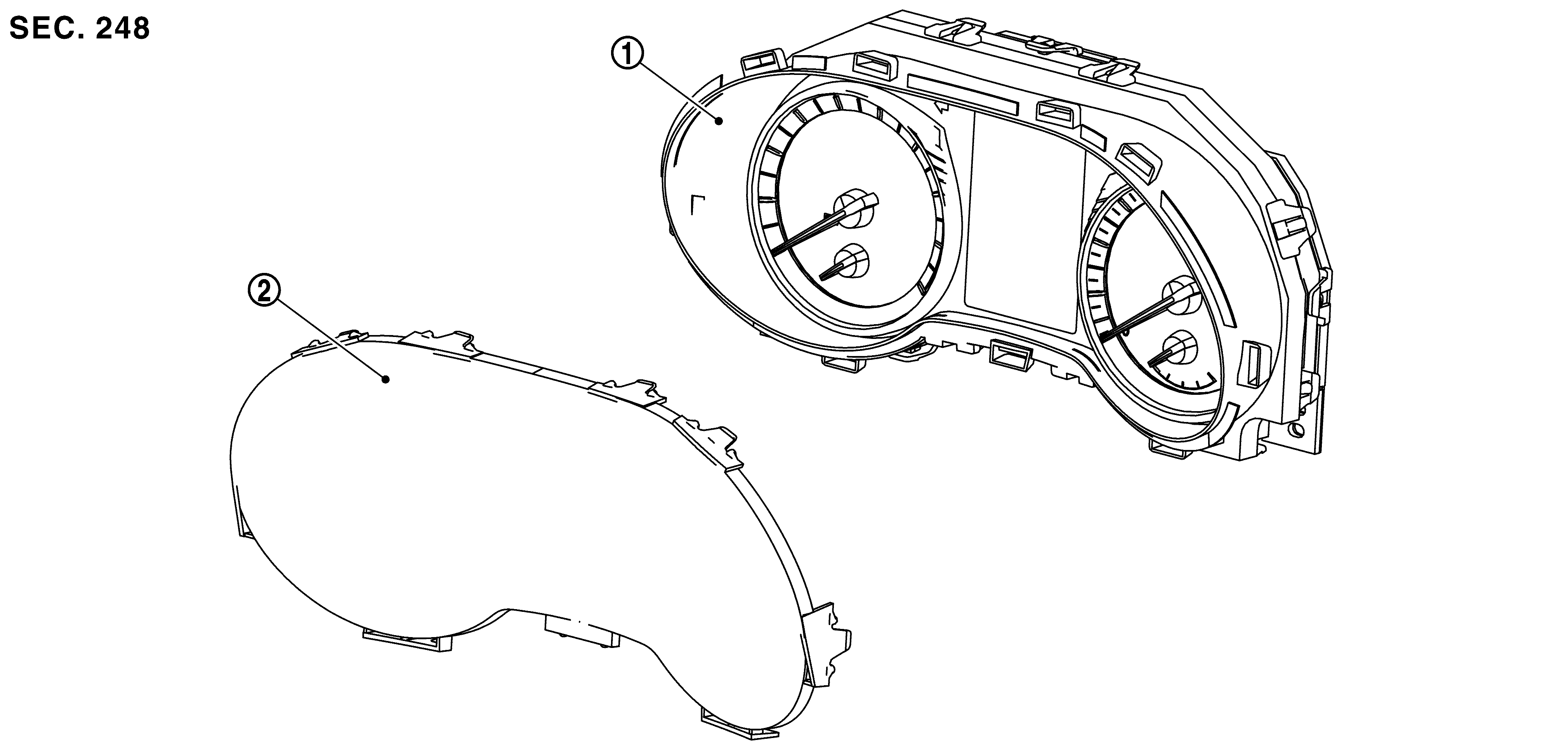

GNSJSNIA5948Z-948Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Unified meter control unit

SYMBOL

Front cover
