Exploded View: Disassembly

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

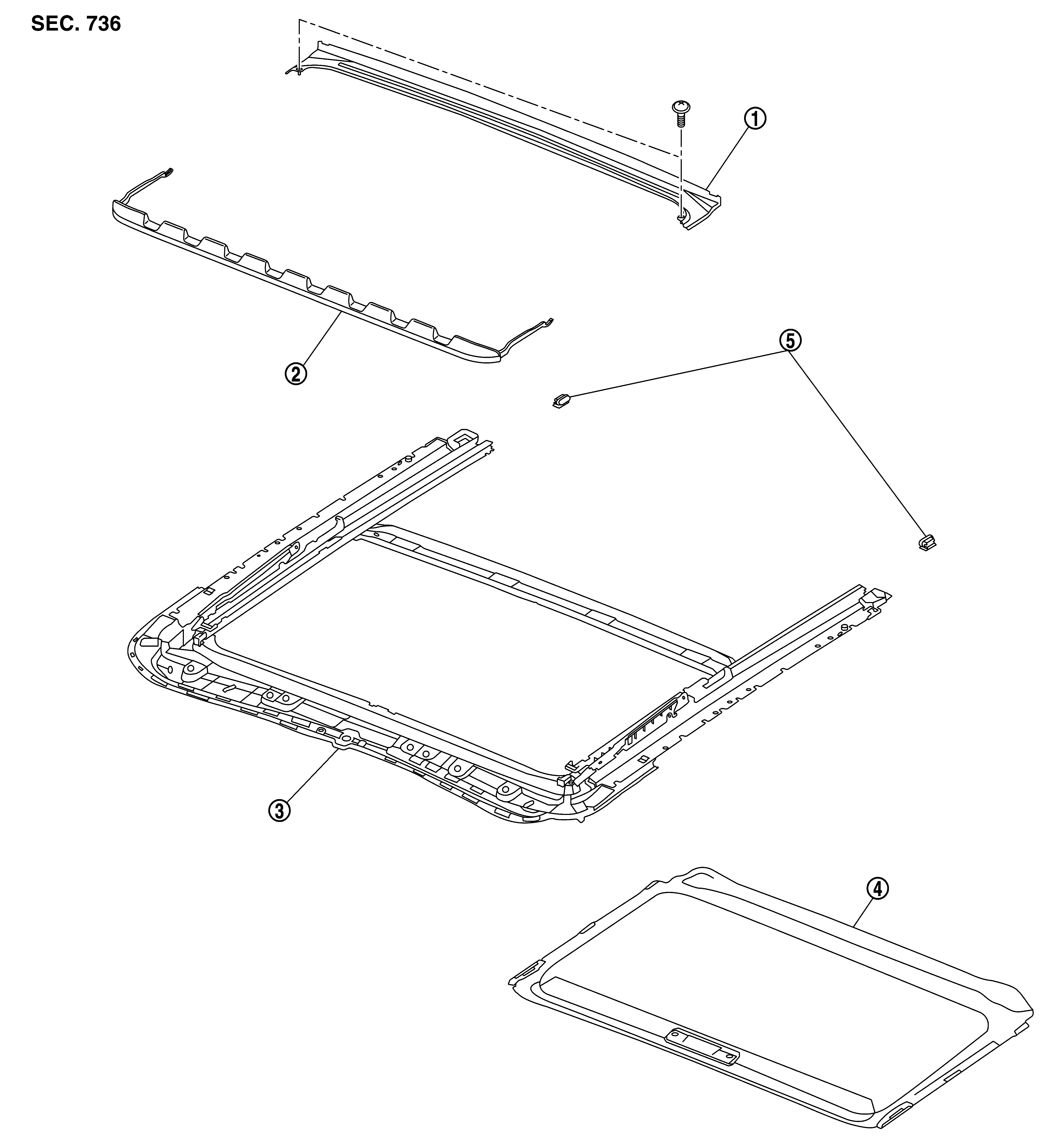

GNSJMKIB1893Z-893Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear drain assembly

SYMBOL

Wind deflector

SYMBOL

Sunroof frame assembly

SYMBOL

Sunshade

SYMBOL

Sunshade stopper
