Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

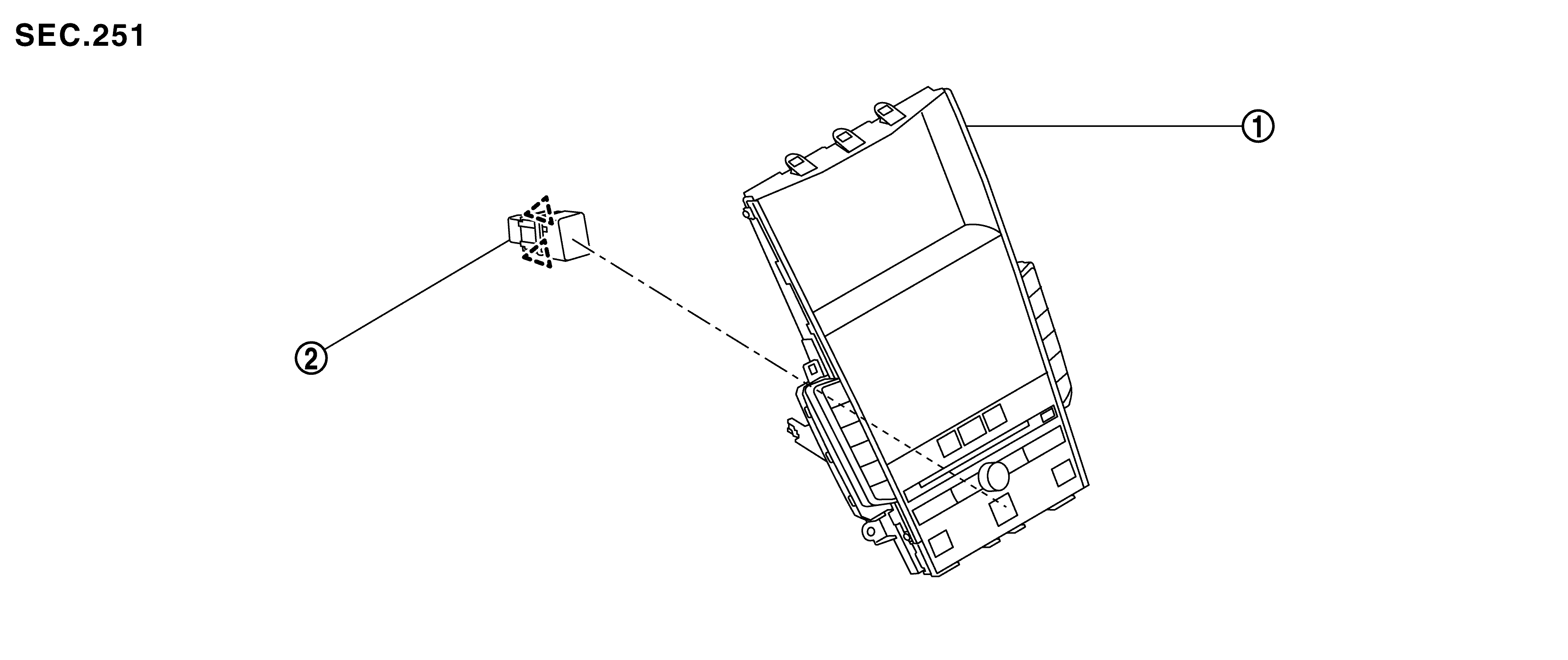

GNSJMLIA4339Z-339Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Integral switch

SYMBOL

Hazard switch

SYMBOL

: Pawl
