Exploded View: Disassembly

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

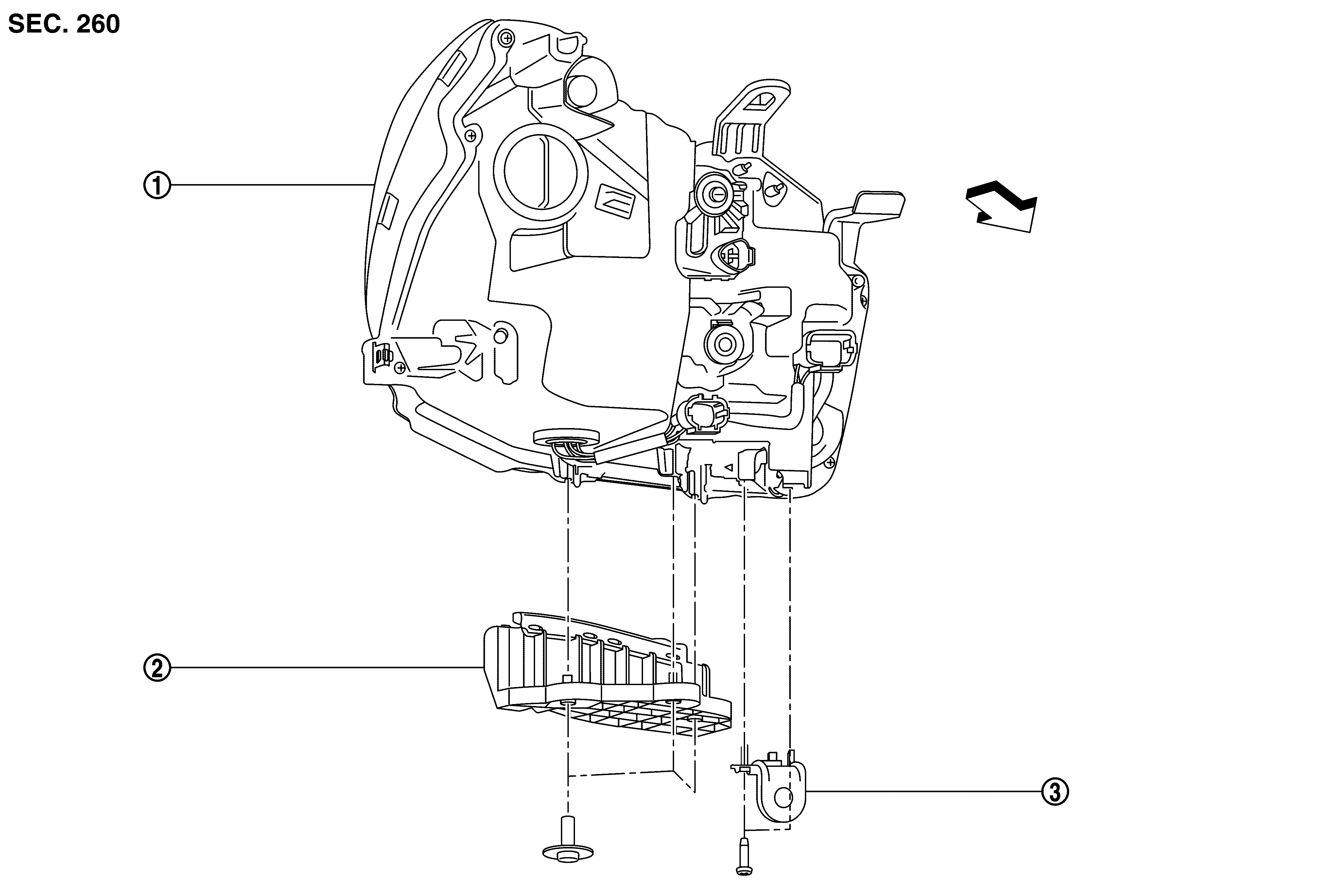

GNSJMLIA4128Z-128Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front combination lamp housing

SYMBOL

Headlamp bracket A

SYMBOL

Headlamp bracket B

SYMBOL

: Vehicle front
