Removal And Installation: Replacement: Installation

  1. Remove burr from the cut section of the pipe.

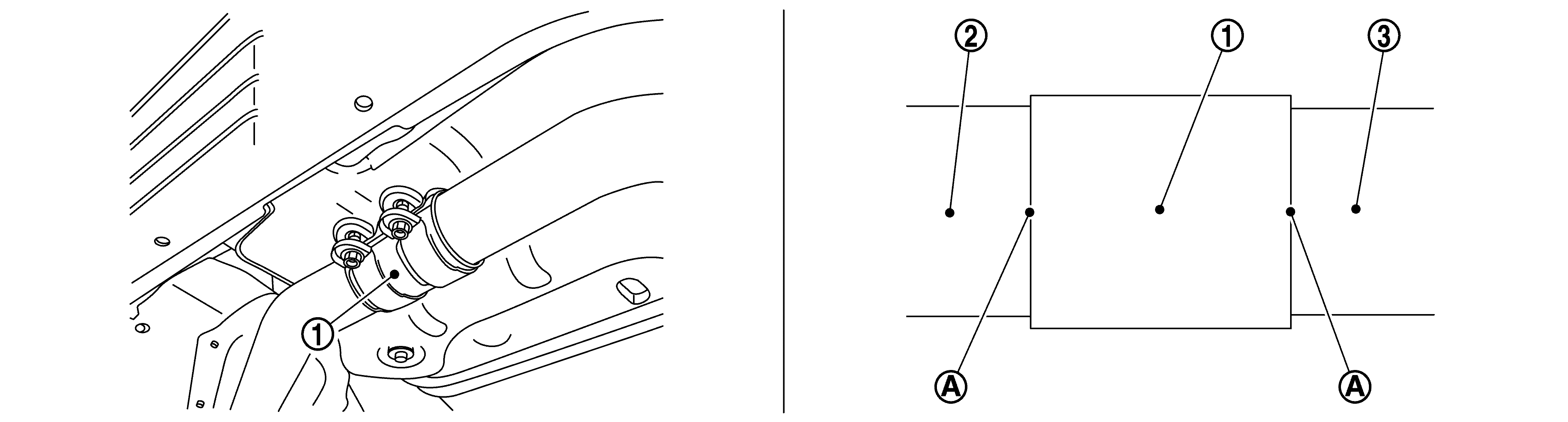

  2. Install clamp according to the following instructions.
    • Fit the end faces of clamp SYMBOL to front side SYMBOL of rear muffler assembly and the install point SYMBOL of rear side SYMBOL .
    • Install clamp to pipe without the interference with the floor part and tighten nut to the specified torque from below.
      GNSJSBIA9693Z-693Courtesy of NISSAN NORTH AMERICA, INC.

      Clamp tightening torque

      SYMBOL : 25.0 N.m (2.6 kg-m, 18 ft-lb)
