Exploded View

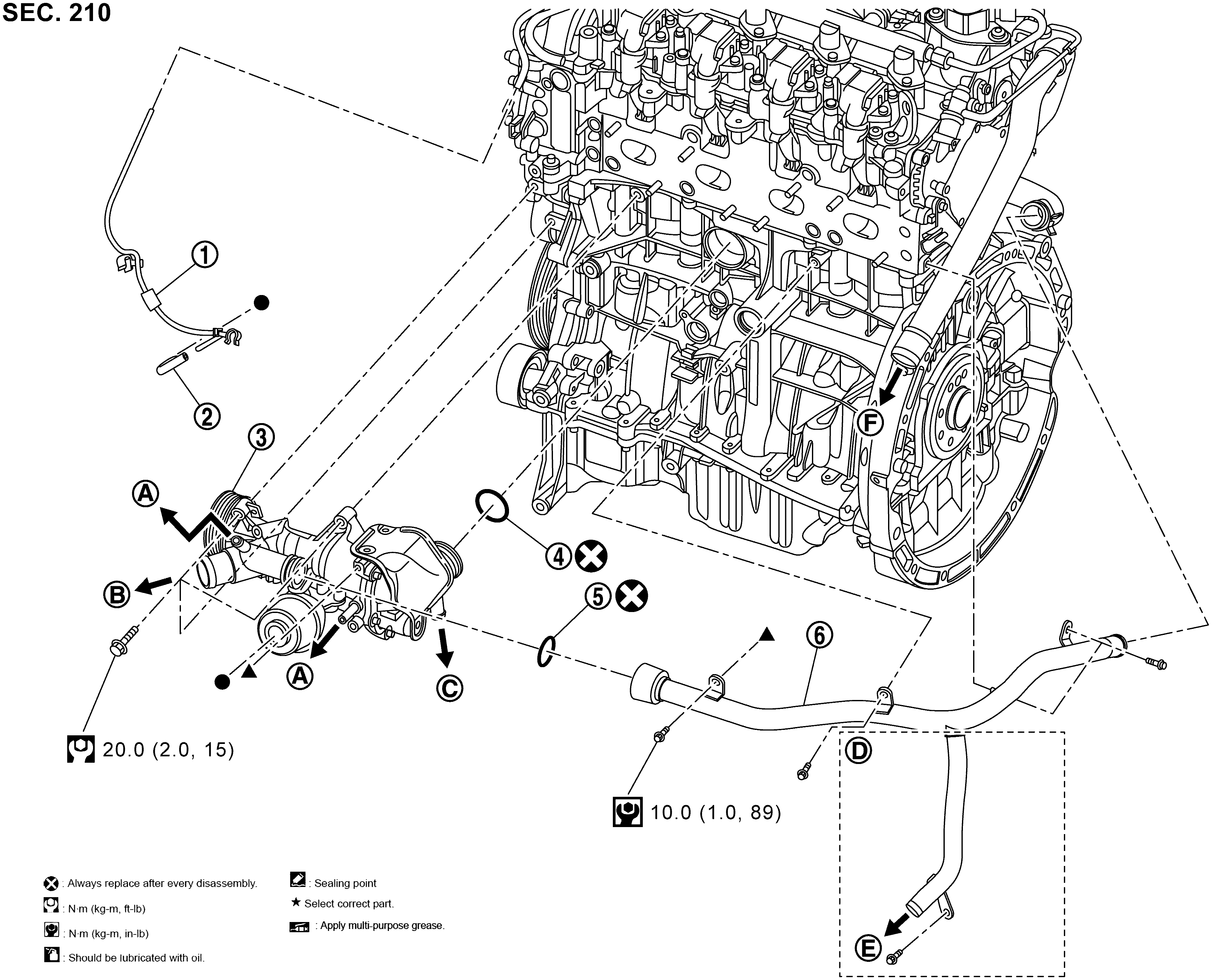

Fig 1: Water Pump Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Vacuum tube	Vacuum hose	Water pump
	O-ring	O-ring	Water pipe
	To exhaust manifold and turbocharger assembly	To radiator	To oil filter housing
	Automatic transaxle models	To transmission cooling module
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.
