Exploded View

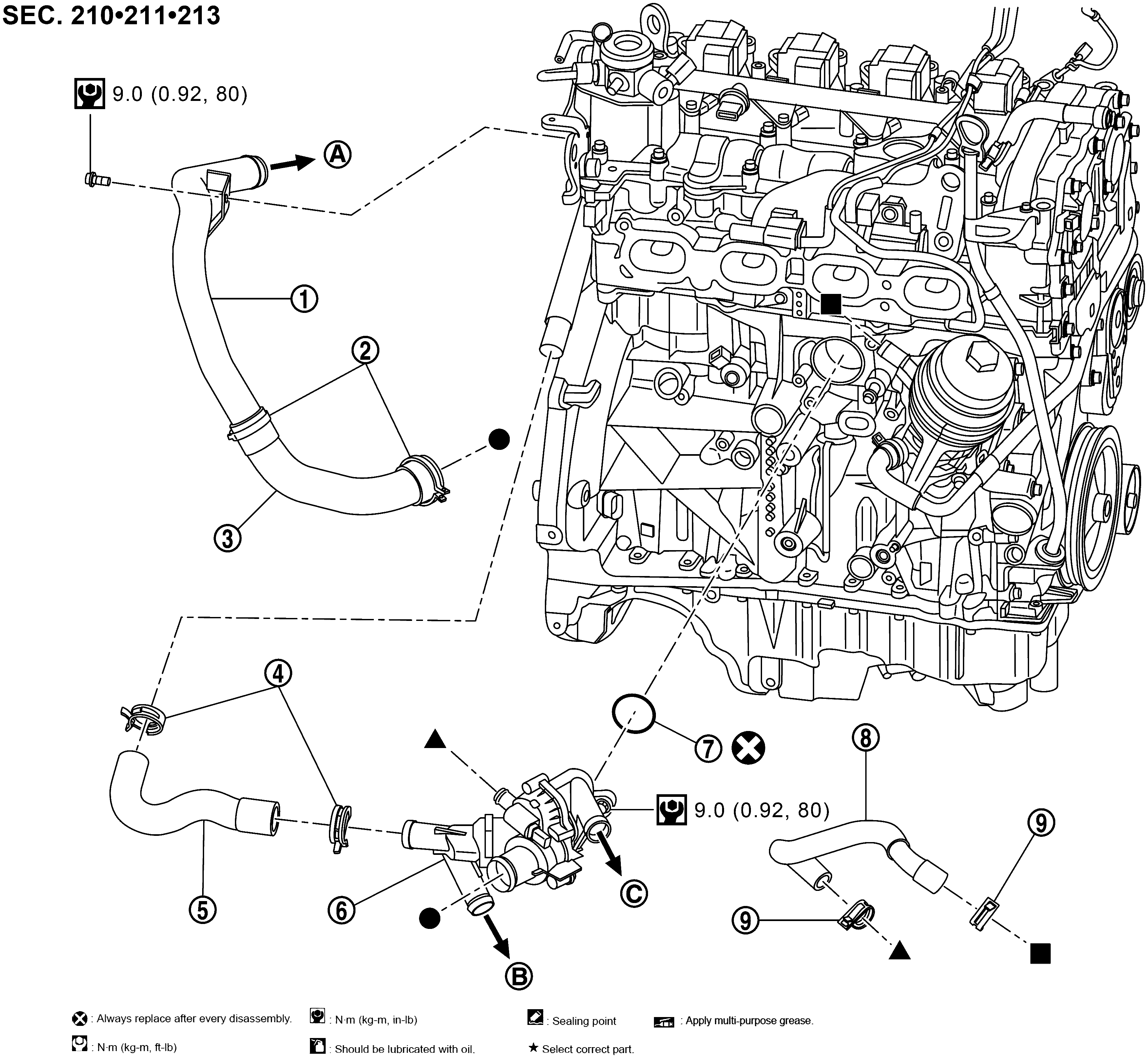

Fig 1: Thermostat Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Water pipe	Clamp	Water hose
	Clamp	Water hose	Thermostat
	O-ring	Water hose	Clamp
	To radiator	To heater/ heater pump	To heater
	: N.m (kg-m, in-lb)
	: Always replace after every disassembly.
, , : Indicates that the part is connected at points with same symbol in actual vehicle.
