Washer Level Switch Connector End View (E108)

Connector Types:  MB_A0525453826

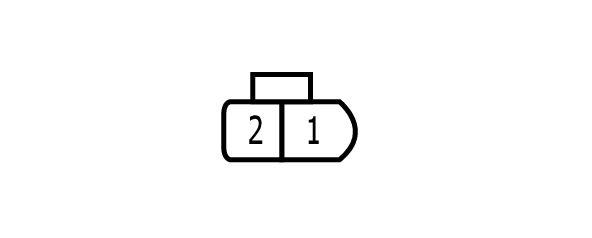

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

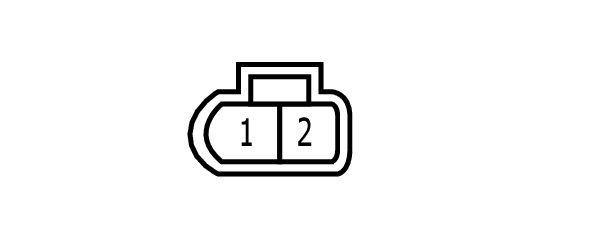

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	BR	WASHER LEVEL SW GND
2	L	WASHER LEVEL SW SIG
