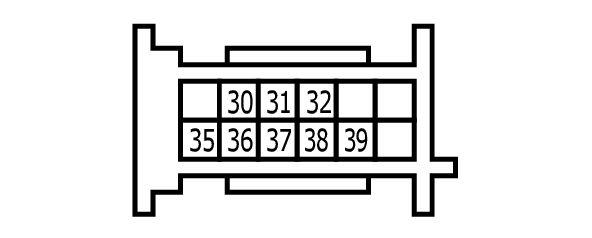

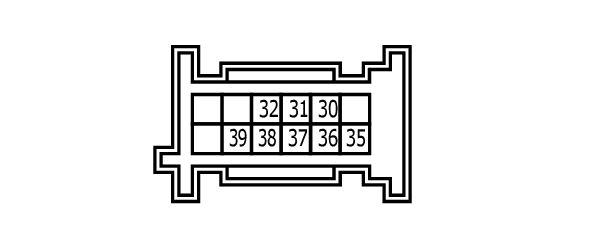

Sonar Control Unit Connector End View (E1)
Connector Types: MB_A0525451626
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 30 | P | SIDE SENSOR SIGNAL FRONT LH |
| 31 | Y | CENTER SENSOR SIGNAL FRONT LH |
| 32 | O | CORNER SENSOR SIGNAL FRONT RH |
| 35 | BR | FRONT SENSOR GROUND |
| 36 | R | CORNER SENSOR SIGNAL FRONT LH |
| 37 | V | CENTER SENSOR SIGNAL FRONT RH |
| 38 | L | SIDE SENSOR SIGNAL FRONT RH |
| 39 | GR | FRONT SENSOR POWER SUPPLY |
