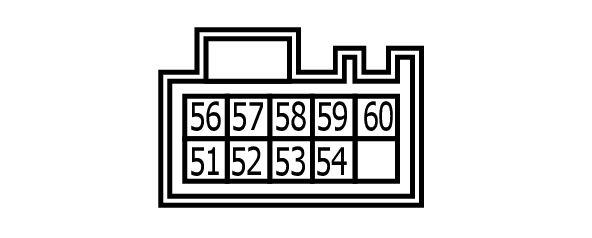

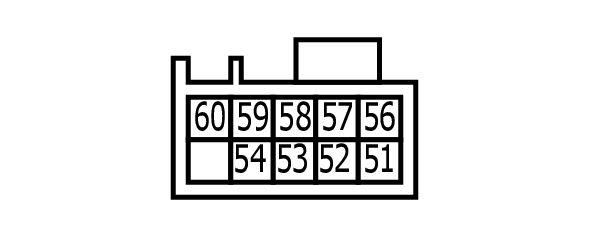

Right Front Door Control Unit Connector End View (D60)
Connector Types: MB_A0255459726
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 51 | O | DOOR_OPENER_LIGHT_GUIDE_+ |
| 52 | BR | DOOR_OPENER_LIGHT_GUIDE_- |
| 53 | P | STEP LAMP GND |
| 54 | V | STEP LAMP PWR |
| 56 | G | RIGHT SEAT SW SIG (LIN) |
| 57 | Y | RIGHT SEAT SW GND |
| 58 | R | RIGHT SEAT SW PWR |
| 59 | B | GRAB_HANDLE_LIGHT_GUIDE_- |
| 60 | W | GRAB_HANDLE_LIGHT_GUIDE_+ |
