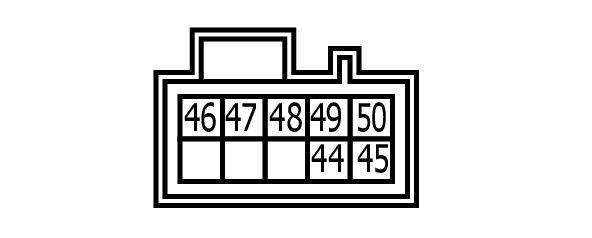

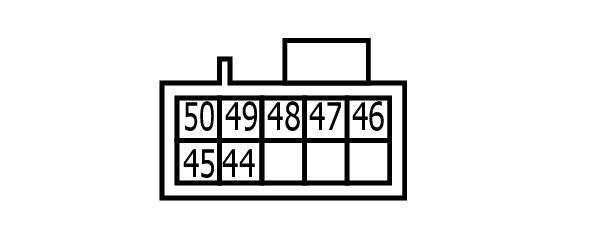

Right Front Door Control Unit Connector End View (D59)
Connector Types:
MB_A0255459626
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 44 |
L |
ZV_INTERNAL_SIGANL |
| 45 |
W |
ZV_INTERNAL.KI.30 |
| 46 |
V |
POWER WINDOW SW OPEN SIG |
| 47 |
BR |
SW GND |
| 48 |
O |
POWER WINDOW SW INDICATOR |
| 49 |
G |
POWER WINDOW SW CLOSE SIG |
| 50 |
Y |
ZV_INTERNAL.KI.31 |
