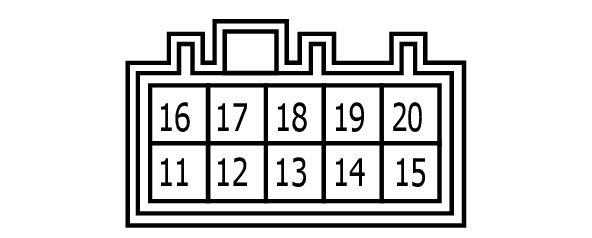

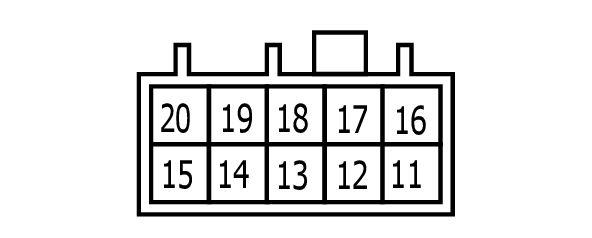

Right Front Door Control Unit Connector End View (D57)
Connector Types: MB_A0025407881
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 11 | L | AMBIENT LAMP (OUTSIDE MIRROR) PWR |
| 12 | P | AMBIENT LAMP (OUTSIDE MIRROR) GND |
| 13 | W | BSW INDICATOR STANDBY SIG |
| 14 | B | DOOR MIRROR LH OPEN |
| 15 | V | DOOR MIRROR LH CLOSE |
| 16 | L | BSW INDICATOR WARNING SIG |
| 17 | O | HORIZONTAL INCLINATION SIG |
| 18 | R | POTENTIOMETER GND |
| 19 | BR | VERTICAL INCLINATION SIG |
| 20 | Y | POTENTIOMETER PWR |
