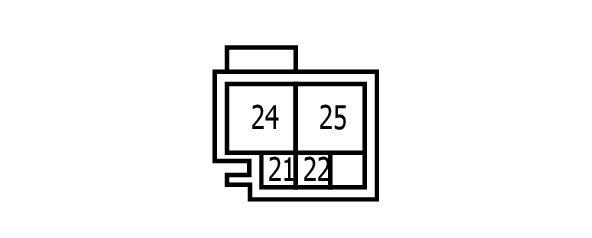

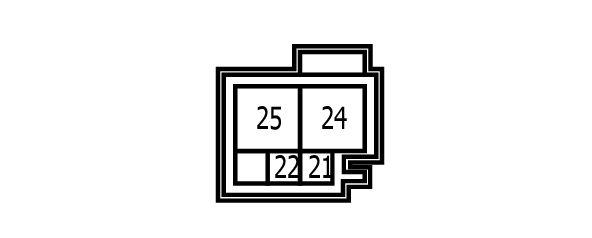

Right Front Door Control Unit Connector End View (D55)
Connector Types:
MB_A0025406281
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 21 |
BR |
BODY CAN 1-L |
| 22 |
R |
BODY CAN 1-H |
| 24 |
BR |
GROUND |
| 25 |
R |
BATTERY POWER SUPPLY |
