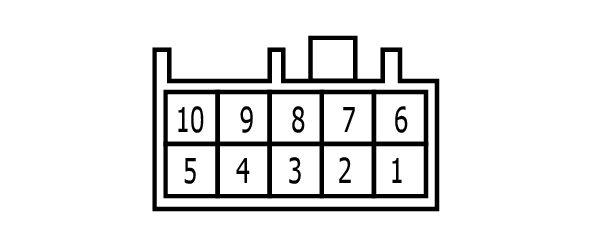

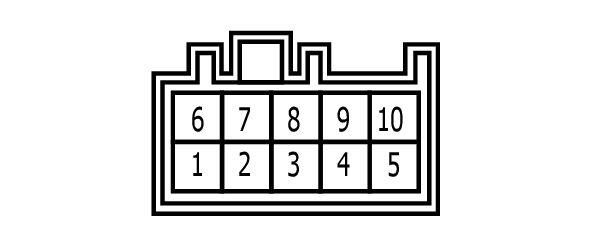

Right Front Door Control Unit Connector End View (D54)
Connector Types: MB_A0025405981
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | R | AUTOMATIC DIMMING MIRROR PWR |
| 2 | Y | GND |
| 3 | G | DOOR MIRROR DEFOGGER GROUND |
| 4 | L | DOOR MIRROR DEFOGGER POWER SUPPLY |
| 5 | BR | BSW INDICATOR GND |
| 6 | V | ADJUSTMENT MOTOR POWER |
| 7 | P | VERTICAL INCLINATION CONT |
| 8 | W | HORIZONTAL INCLINATION CONT |
| 9 | GR | TURN SIG LAMP POWER |
| 10 | O | TURN SIG LAMP GND |
