Quantity Control Valve Connector End View (F169)

Connector Types:  A0285453626

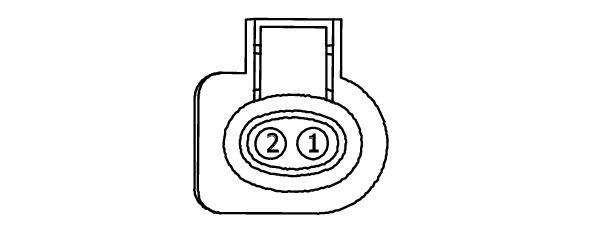

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

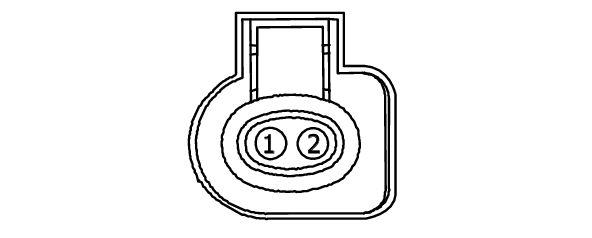

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	V	-
2	G/B	-
