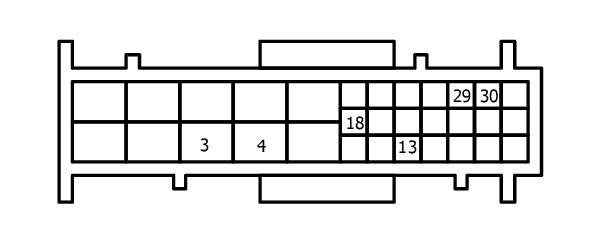

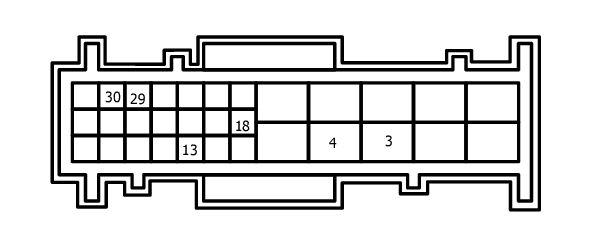

Passenger Seat Control Unit Connector End View (M618)
Connector Types:
A0085402281
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 3 |
R |
BATTERY POWER SUPPLY |
| 4 |
BR |
GROUND |
| 13 |
BR |
GROUND |
| 18 |
R |
BATTERY POWER SUPPLY |
| 29 |
R |
CAN-H |
| 30 |
BR |
CAN-L |
