Passenger Air Bag Module Connector End View (M1)

Connector Types:  MB_A0295452926

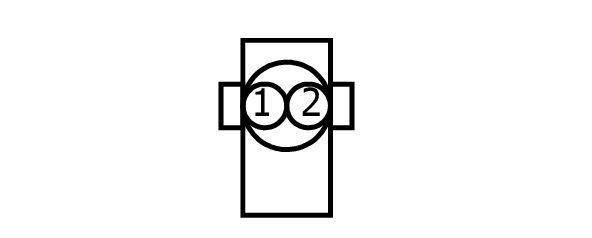

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

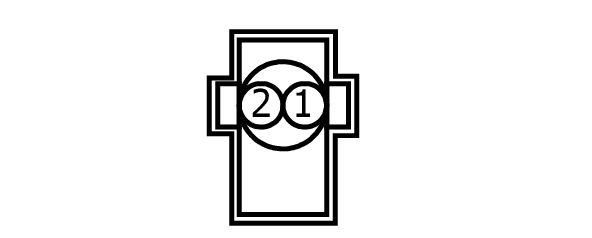

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	V/Y	-
2	W/B	-
