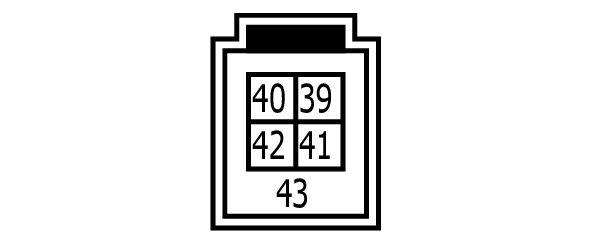

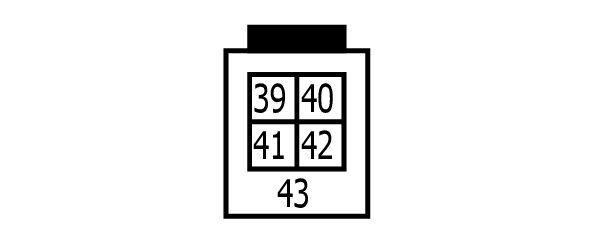

NAVI Control Unit Connector End View (M398)
Connector Types:
TYCO-1-1554979-7
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 39 |
G |
USB GROUND |
| 40 |
W |
USB V BUS SIGNAL |
| 41 |
R |
USB D- SIGNAL |
| 42 |
L |
USB D+ SIGNAL |
| 43 |
SHIELD |
SHIELD |
