NAVI Control Unit Connector End View (M395)

Connector Types:  GT5-1S-HU

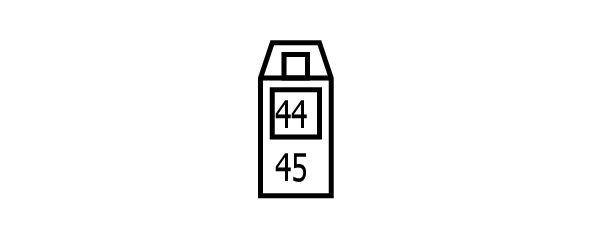

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

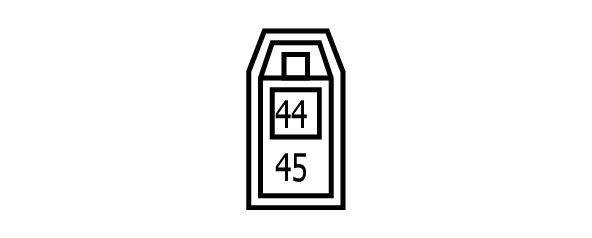

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
44	-	GPS ANTENNA SIGNAL
45	-	SHIELD
