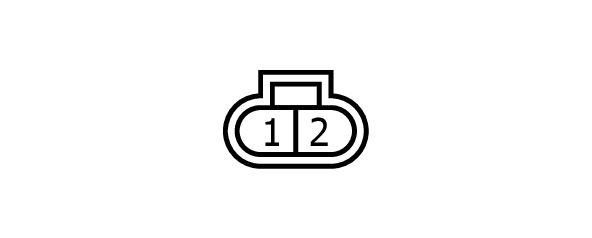

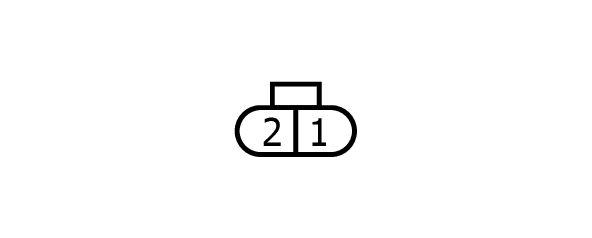

Left Front Axle Rpm Sensor Connector End View (E104)
Connector Types:
MB_A2105402081
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
W |
LEFT FRONT AXLE RPM SENSOR POWER SUPPLY |
| 2 |
Y |
LEFT FRONT AXLE RPM SENSOR SIGNAL |
