ICC Sensor Connector End View (E29)

Connector Types:  MB_A2105404581

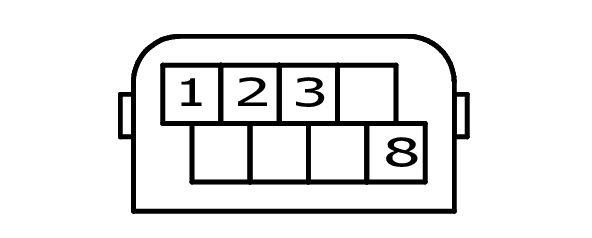

Fig 1: Terminal-side
GNSW47182Courtesy of NISSAN NORTH AMERICA

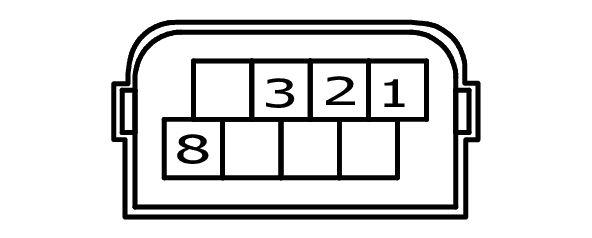

Fig 2: Harness-side
GNSW46894Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 BR GROUND
2 W CAN-H
3 G CAN-L
8 B BATTERY POWER SUPPLY
