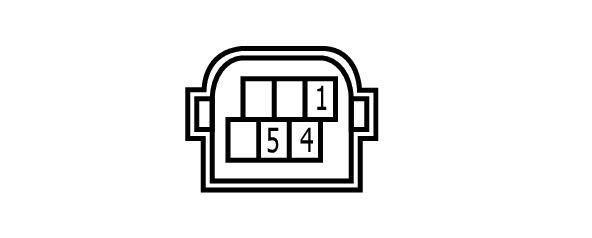

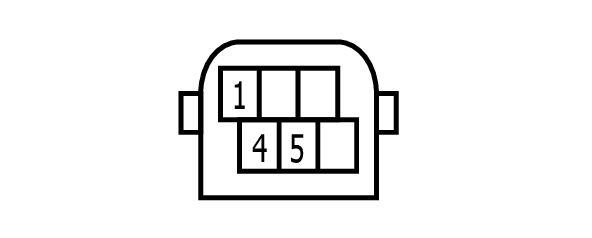

Front Height Sensor Connector End View (E91)
Connector Types:
MB_A2105403681
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
BR |
FRONT HEIGHT SENSOR GROUND |
| 4 |
L |
FRONT HEIGHT SENSOR SIGNAL |
| 5 |
R |
- |
