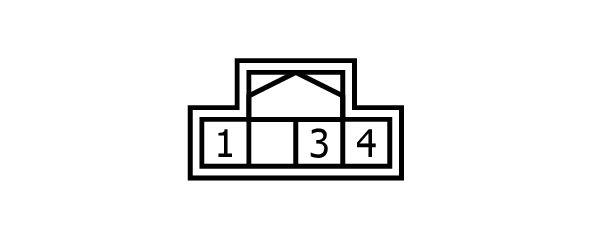

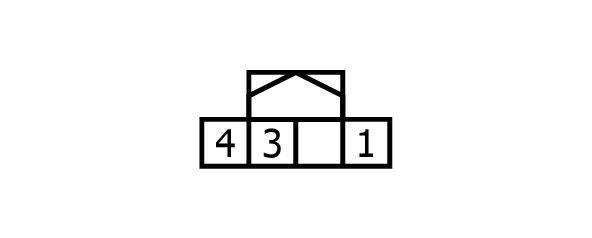

External Data Input Box (USB) Connector End View (M222)
Connector Types:
TH04FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
B |
GROUND |
| 3 |
V |
ACC POWER SUPPLY |
| 4 |
Y |
BATTERY POWER SUPPLY |
